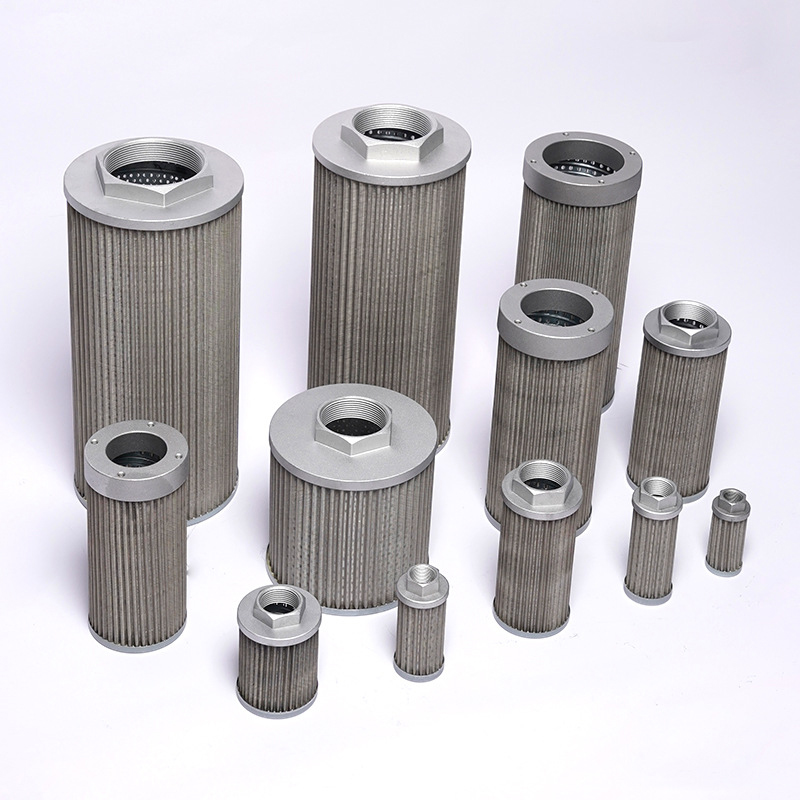

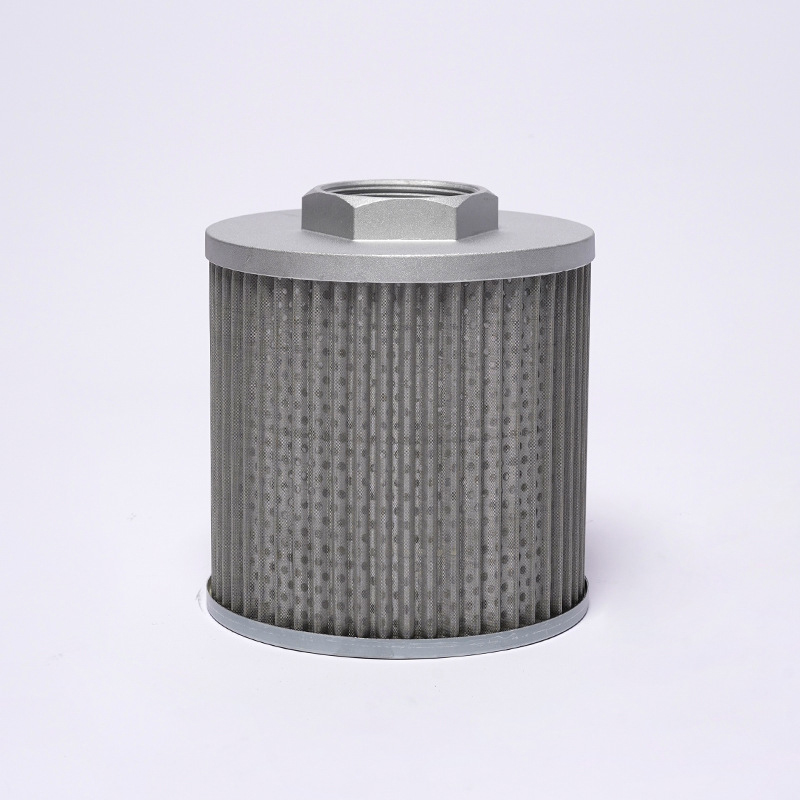

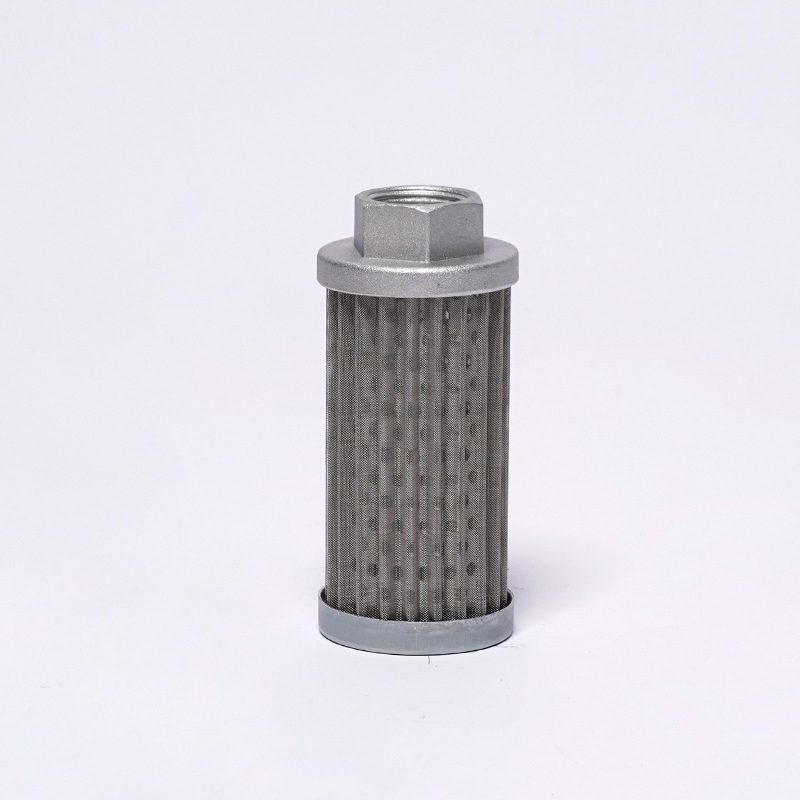

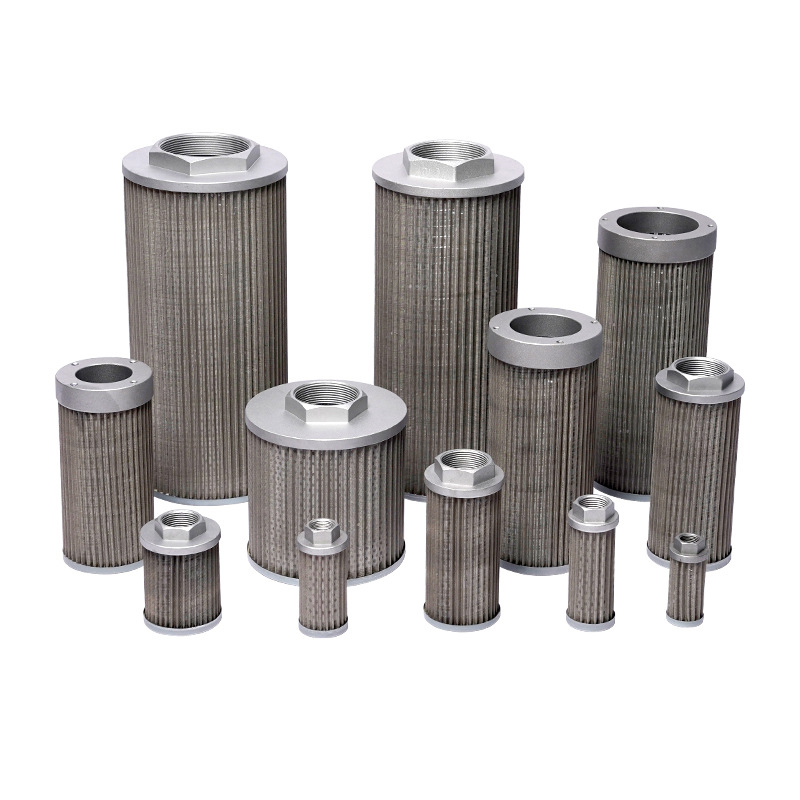

Hydraulic Mesh Filter Element 16-1000L/min Stainless Steel Oil Suction Filter Element Injection Molding Machine Filter Element
This type of filter is suitable for filtering impurities in the oil at the oil suction port of the oil pump. It is used to protect the oil pump and other hydraulic components, effectively control the pollution of the hydraulic system, and improve the cleanliness of the hydraulic system.
The filter is directly immersed in the oil in the oil tank, and is connected with the oil pump suction port by the pipeline thread or flange. Divided into net type and line gap type filter structure, it has the characteristics of large oil flow capacity, small resistance, simple pipeline, easy to clean and so on.
NOTE: Prices may vary by product model and material.
$10.00
CompareFeatures of hydraulic filter
- Strong versatility and flexible operation. Easy to install, not easy to damage, stable product quality.
- Seiko material selection, meticulous workmanship. Strictly control every detail of production, and conduct quality inspections before leaving the factory to ensure product quality.
- The product specifications are complete and the varieties are diverse.
Hydraulic Oil Filter is suitable for many scenarios. For example, shipbuilding industry, chemical industry, automobile manufacturing, engineering machinery, metallurgical industry, machinery and equipment, etc.

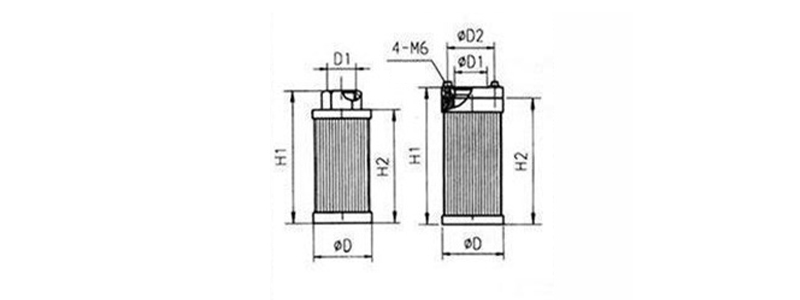

| Model | Flow | Precision | H1(mm) | H2(mm) | D(mm) | D1(mm) | D2(mm) | Connection method |
| 16-J | 16 L/min | 80μm | 84 | 70 | 35 | M18*1.5 | / | Pipe type |
| 25-J | 25 L/min | 80μm | 104 | 90 | 43 | M22*1.5 | / | Pipe type |
| 40-J | 40 L/min | 80μm | 124 | 107 | 43 | M27*2 | / | Pipe type |
| 63-J | 63 L/min | 80μm | 103 | 87 | 70 | M33*2 | / | Pipe type |
| 100-J | 100 L/min | 100μm | 153 | 137 | 70 | M42*2 | / | Pipe type |
| 160-J | 160 L/min | 100μm | 200 | 180 | 82 | M48*2 | / | Pipe type |
| 225-J | 225 L/min | 125μm | 168 | 143 | 155 | G2″ | / | Pipe type |
| 350-J | 350 L/min | 125μm | 212 | 187 | 150 | G2 1/2″ | / | Pipe type |
| 250 F-J | 250 L/min | 125μm | 197 | 182 | 88 | Φ50 | 74 | Flange type |
| 400 F-J | 400 L/min | 125μm | 250 | 235 | 105 | Φ65 | 93 | Flange type |
| 630 F-J | 630 L/min | 180μm | 301 | 286 | 118 | Φ80 | 104 | Flange type |
| 800-J | 800 L/min | 180μm | 340 | 315 | 150 | G2 1/2″ | / | Pipe type |
| 1000-J | 1000 L/min | 180μm | 350 | 330 | 159 | G3″ | / | Pipe type |
