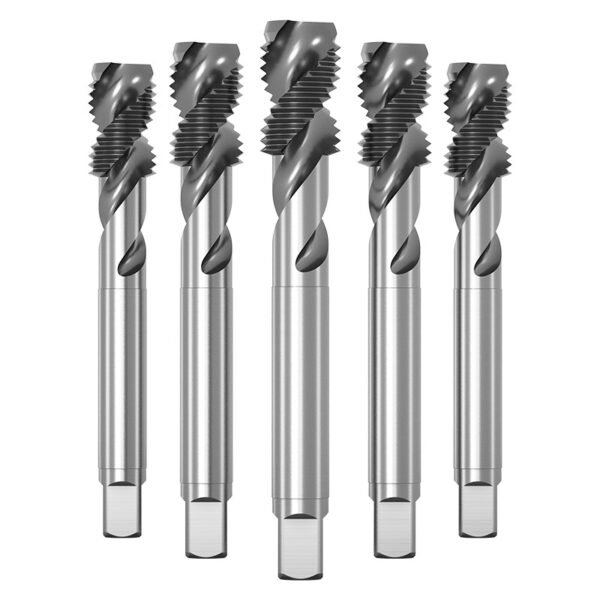

Models of the Aluminum Special Machine Taps

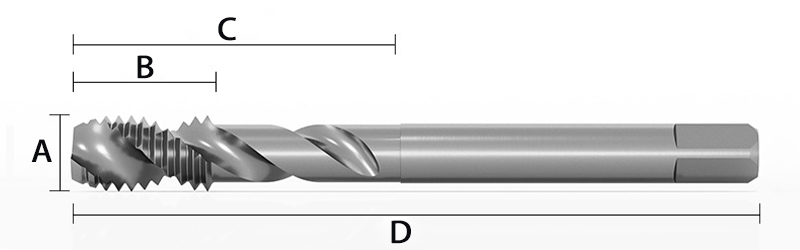

MODEL | Diameter (A) | Tooth length(B) | Working depth(C) | Tooth distance | Total length(D) |
M3 | 3 mm | 7.0 mm | 18.0 mm | 0.50 mm | 49.0 mm |
M4 | 4 mm | 9.5 mm | 20.5 mm | 0.70 mm | 57.0 mm |
M5 | 5 mm | 10.5 mm | 26.0 mm | 0.80 mm | 63.0 mm |
M6 | 6 mm | 14.0 mm | 29.0 mm | 1.00 mm | 68.0 mm |
M8 | 8 mm | 14.0 mm | 31.0 mm | 1.25 mm | 70.0 mm |
M10 | 10 mm | 16.0 mm | 33.5 mm | 1.50 mm | 75.0 mm |
M12 | 12 mm | 19.5 mm | 37.0 mm | 1.75 mm | 82.0 mm |
Features of the Aluminum Special Machine Taps
- Use preferred 6542 high speed steel
High-quality high-speed steel with good toughness, strong wear resistance and excellent cutting performance. - Strong Chip Spiral Flutes

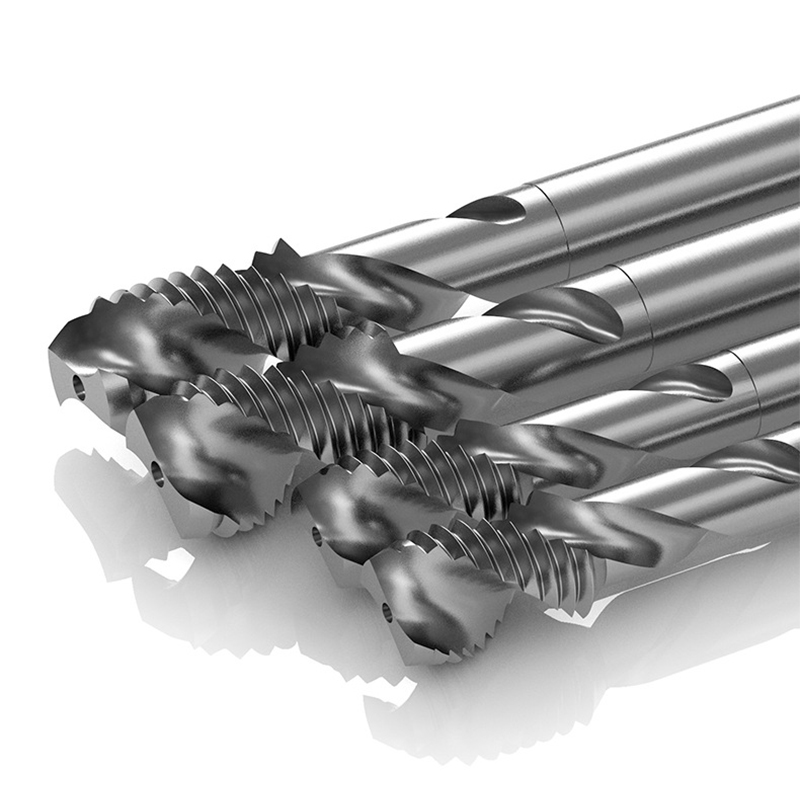

Widened and deepened spiral groove design, greater chip removal, stronger cutting performance. - CNC full grinding with high precision
Quenched and fully ground 6542 high-speed steel, which improves the ability of tapping chip removal and does not stick to chips. - Strong square handle
Square handle for firm grip
