Centrifugal Pumps

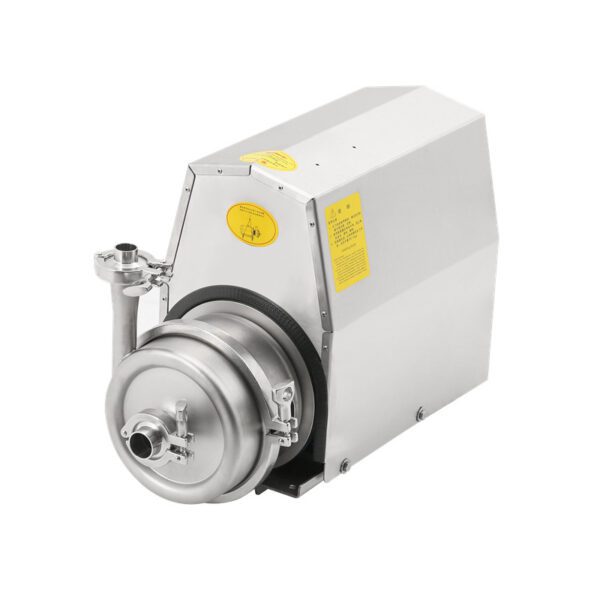

3T/H Explosion-proof Centrifugal Pump Sanitary Stainless 304 Steel Small Horizontal Pump Pharmaceutical Liquid Beverage Pump
- Flow: 3 t/h
- Lift: 18m
- Inlet and outlet diameter: 38/32mm
- Power: 0.75kw
- Size: 420*220*320mm
- Weight: 22kg
NOTE: Prices may vary by product model and material.
$655.00
CompareCentrifugal Pump is made of SUS304, 316L stainless steel. It is suitable for conveying various liquid foods such as milk, soybean milk, fruit juice drinks, and wine.
| Flow(t/h) | Lift(m) | Inlet and outlet diameter | Power(kw) | Size(mm) | Weight(kg) |
| 1 | 10 | 25 | 0.37 | 380*200*280 | 16 |
| 3 | 18 | 38/32 | 0.75 | 420*220*320 | 22 |
| 5 | 24 | 38 | 1.5 | 500*260*370 | 35 |
| 10 | 24 | 51/38 | 2.2 | 520*260*370 | 38 |
| 15 | 24 | 51 | 3 | 580*270*400 | 45 |
| 20 | 24 | 51 | 4 | 600*270*420 | 48 |
