CSI Solar Panel, Solar Panel
Canadian Solar Panels N-type Topcon Technology Panel Solar Portatil 560w 565w 570w 575w Solar Panel
| Brand Name: | CanadianSolar |
| Model Number: | TOPBiHiKu6 CS6W 560-575W |
| Cell size: | 210mmx210mm |
| Type: | PERC, Half Cell, Bifacial, Double-glass, high power |
| Panel Dimensions: |
2278 x 1134 x 30 mm (89.7 x44.6 x 1.18 in) |
$235.00 – $243.00
Compare
SOLAR PANEL MECHANICAL DATA
Cell Type : TOPCon cells
Cell Arrangement : 144 [2 x (12 x 6) ]
Dimensions: 2278 ˣ 1134 ˣ 30 mm (89.7 ˣ 44.6 ˣ 1.18 in)
Weight : 27.6 kg (60.8 lbs)
Front Cover :3.2 mm tempered glass with anti-reflective coating
Frame : Anodized aluminium alloy

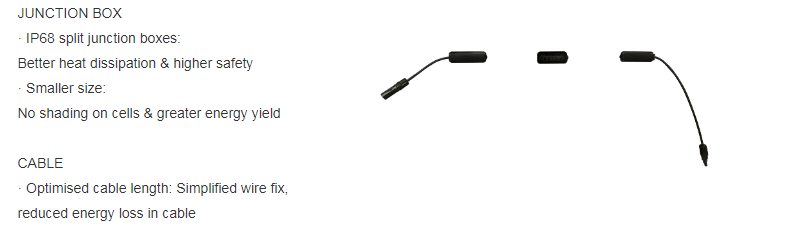

J-Box : IP68, 3 bypass diodes
Cable : 4 mm2 (IEC), 12 AWG (UL)
Cable Length (Including Connector):350 mm (13.8 in) (+) / 250 mm (9.8 in) (-) or customized length
Connector : T6 or MC4-EVO2 or MC4-EVO2A
Per Pallet : 35 pieces
