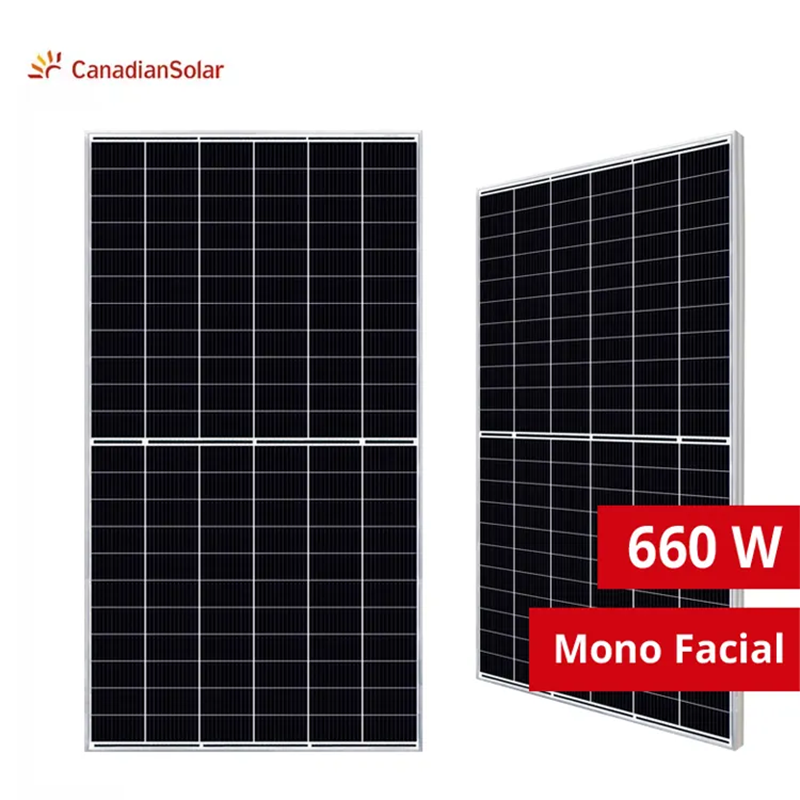

Canadian Solar Bifacial 210mm Cell Cheap 645w 650w 655w 660w 665w Solar Panel For Solar System

Brand Name:	CanadianSolar
Model Number:	CS7N-MS
Cell size:	210mmx210mm
Type:	PERC, Half Cell, Bifacial, Double-glass, high power
Panel Dimensions:	2384x1303x35 mm (93.9×51.3×1.38 in)

$271.00 – $281.00

Specification

Clear

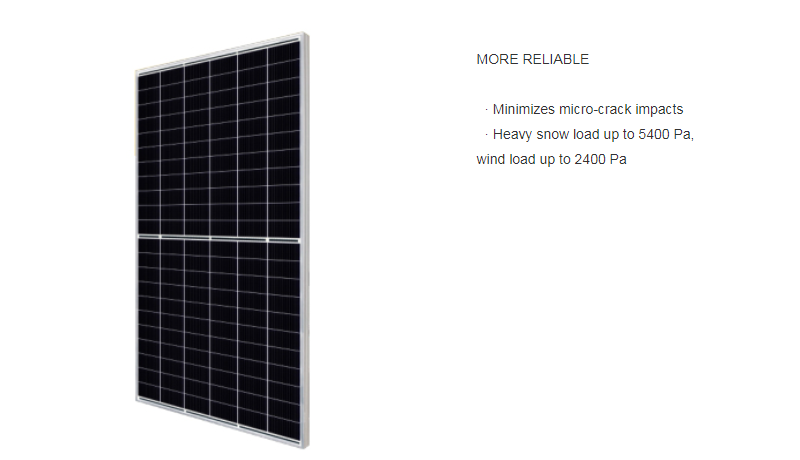

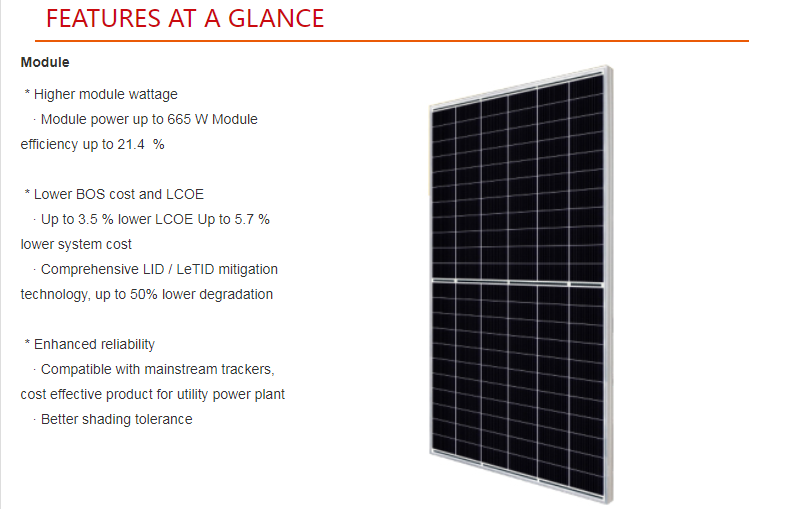

High reliability of solar panels
1. Minimize the impact of cracks
2. Super strong frame, can carry 5400Pa snow load and 2400Pa wind pressure

MECHANICAL DATA		ELECTRICAL DATA
Cell Type	Mono-crystalline	Operating Temperature	-40°C ~ +85°C
Cell Arrangement	132 [2 x (11 x 6) ]	Max. System Voltage	1500V (IEC/UL) or 1000V (IEC/UL)
Dimensions	2384 ˣ 1303 ˣ 35 mm (93.9 ˣ 51.3 ˣ 1.38 in)	Module Fire Performance	CLASS C (IEC 61730)
Weight	34.4 kg (75.8 lbs)	Max. Series Fuse Rating	30 A
Front / Back Glass	3.2 mm tempered glass	Application Classification	Class A
Frame	Anodized aluminium alloy, crossbar enhanced	Power Tolerance	0 ~ + 10 W

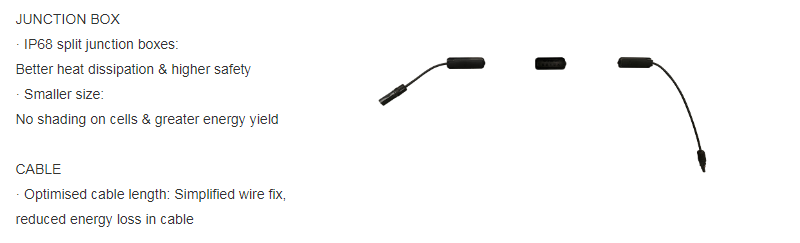

J-Box	IP68, 3 bypass diodes	Power Bifaciality	70%
Cable	4 mm 2 (IEC)	TEMPERATURE CHARACTERISTICS
Cable Length (Including Connector)	460 mm (18.1 in) (+) / 340 mm (13.4 in) (-) or customized length*	Temperature Coefficient (Pmax)	-0.34 % / °C
Connector	T4 series or H4 UTX or MC4-EVO2	Temperature Coefficient (Voc)	-0.26 % / °C
Per Pallet	31 pieces	Temperature Coefficient (Isc)	0.05 % / °C
Per Container	527 pieces	Nominal Module Operating Temperature	42 ± 3°C

Based on 0 reviews

0.0 overall

There are no reviews yet.

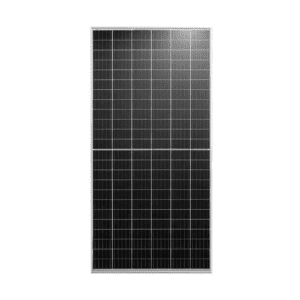

Solar Cell	N-type Monocrystalline silicon 182 mm
