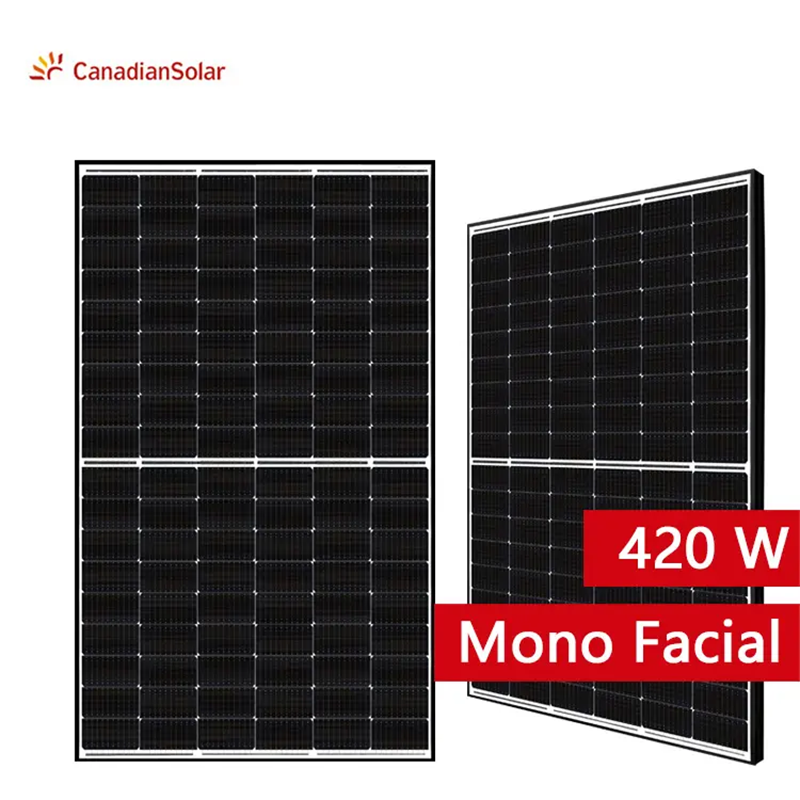

Name: Hot Sale 395w 400w 405w 410w 415w 420w Monocrystalline Pv Solar Panel For Home Electricity
SKU: 18345
Availability: InStock

PRODUCT SPECIFICATIONS

MECHANICAL DATA		ELECTRICAL DATA
Cell Type	Mono-crystalline	Operating Temperature	-40°C ~ +85°C
Cell Arrangement	144 [2 x (9 x 6) ]	Max. System Voltage	1500V (IEC/UL) or 1000V (IEC/UL)
Dimensions	1722 x 1134 x 30 mm (67.8 ˣ 44.6 ˣ 1.18 in)	Module Fire Performance	TYPE 1 (UL 61730 1500V) or TYPE 2 (UL 61730 1000V) or CLASS C (IEC 61730)
Weight	21.3 kg (47.0 lbs)	Max. Series Fuse Rating	25 A
Front / Back Glass	3.2 mm tempered glass with anti reflective coating	Application Classification	Class A
Frame	Anodized aluminium alloy	Power Tolerance	0 ~ + 10 W

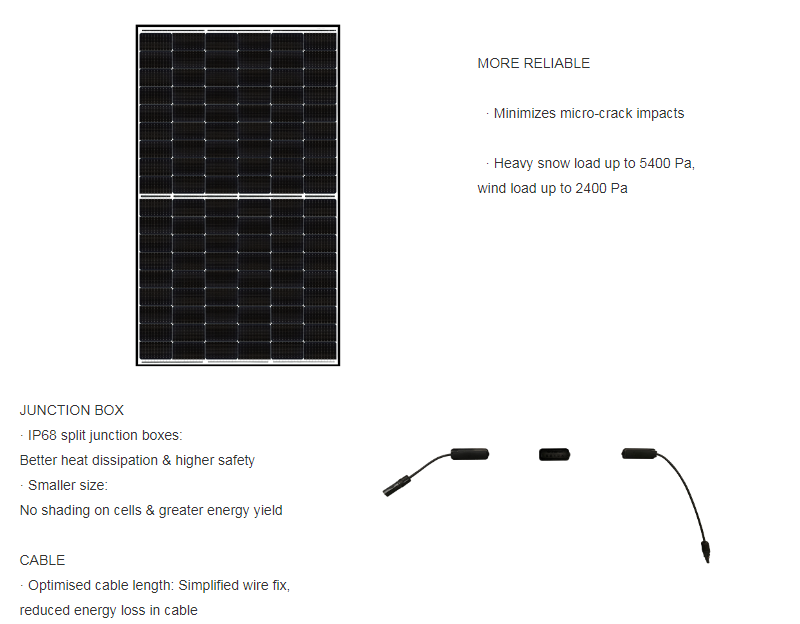

J-Box	IP68, 3 bypass diodes
Cable	4 mm 2 (IEC), 12 AWG (UL)	TEMPERATURE CHARACTERISTICS
Cable Length (Including Connector)	Portrait: 410 mm (16.1 in) (+) / 290mm (11.4 in) (-); landscape: 1100mm (43.3 in)*	Temperature Coefficient (Pmax)	-0.34 % / °C
Connector	T4 series or H4 UTX or MC4-EVO2	Temperature Coefficient (Voc)	-0.26 % / °C
Per Pallet	35 pieces	Temperature Coefficient (Isc)	0.05 % / °C
Per Container	910 pieces	Nominal Module Operating Temperature	42 ± 3°C

Based on 0 reviews

0.0 overall

There are no reviews yet.

Brand Name:	CanadianSolar
Model Number:	CS6R-MS
Cell size:	182mmx182mm
Type:	PERC, Half Cell, Bifacial, Double-glass, high power
Panel Dimensions:	1722x1134x30 mm (67.8×44.6×1.18 in)

Brand Name:	CanadianSolar
Model Number:	CS7N-MS
Cell size:	210mmx210mm
Type:	PERC, Half Cell, Bifacial, Double-glass, high power
Panel Dimensions:	2384x1303x35 mm (93.9×51.3×1.38 in)

Hot Sale 395w 400w 405w 410w 415w 420w Monocrystalline Pv Solar Panel For Home Electricity
