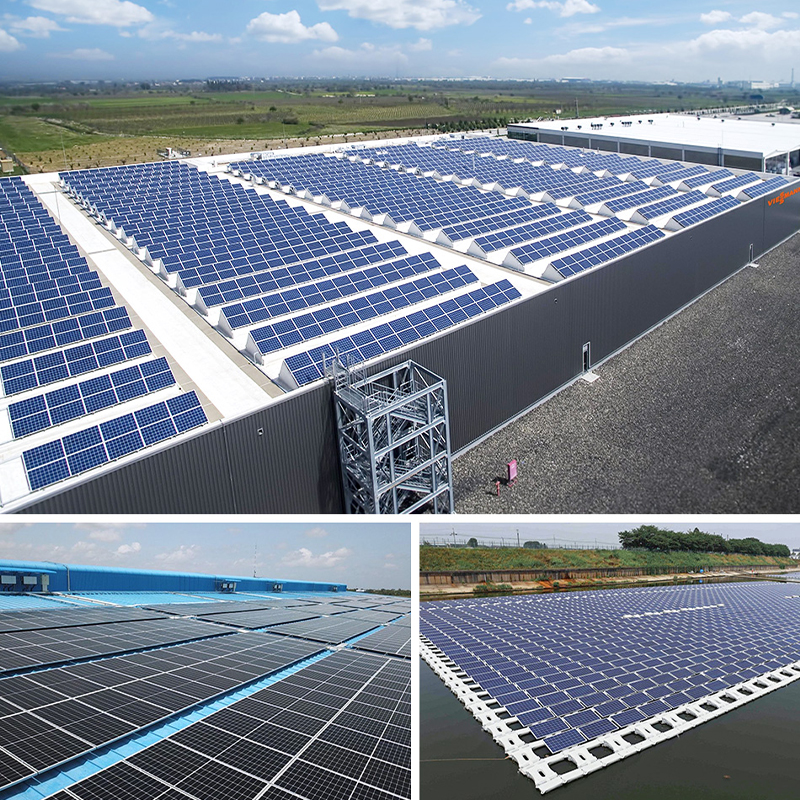

JA PERC Solar Panel JAM78D30 580W-605W/MB Series MBB Bifacial Mono PERC Half-cell Double Glass Module High Quality Solar Panels
Introduction
Assembled with 11BB bifacial PERCIUM cells and half-cell configuration, these double glass modules have the capability of converting the incident light from the rear side together with the front side into electricity, providing higher output power, lower temperature coefficient, less shading loss, as well as enhanced tolerance for mechanical loading.
- 0.45% Annual Degradation Over 30 years.
- Higher output power.
- More reliable, more stable power generation.
- Less shading effect.
- Lower temperature coefficient.
$212.00 – $222.00
CompareModel of JA PERC Solar Panel: 580W 585W 590W 595W 600W 605W
Thickened aluminum alloy frame
Antioxidant, corrosion-resistant with a performance of over 25 years hole design and easy installation.
Seamless Lamination Technology
Seamless bonding between tempered glass and battery cells without bubbles, neatly arranged and efficient conversion.
| Cell | Mono |
| Weight | 34.6kg |
| Dimensions | 2465±2mm×1134±2mm×35±1mm |
| Cable Cross Section Size | 4mm²(IEC),12 AWG(UL) |
| No.of cells | 156(6×26) |
| Junction Box | IP68, 3 diodes |
| Connector | MC4-EVO2A/ QC4.10-351 |
| Cable Length (Including Connector) | Portrait: 200mm(+)300mm(-); Landscape: 1500mm(+)/1500mm(-) |
| Front Glass/Back Glass | 2.0mm/2.0mm |
| Packaging Configuration | 31pcs/Pallet, 496pcs/40HQ Container |
| Max. Power | 580W, 585W, 590W, 595W, 600W, 605W |
|---|
