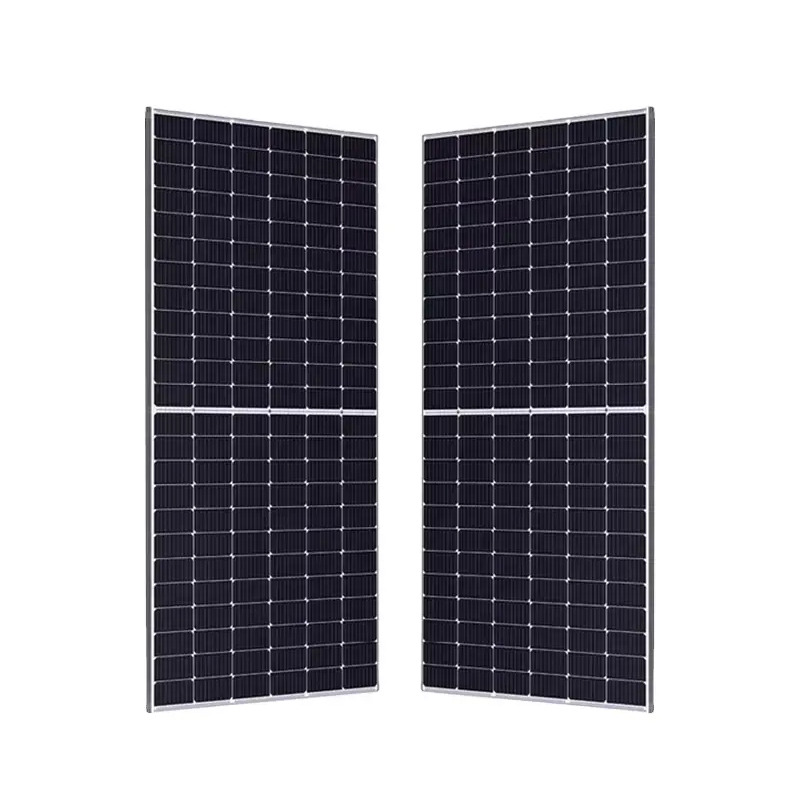

JA High Efficiency Solar Panel JAM54D40 430W-455W/LB n-type Bifacial Double Glass Mono Module for Home Use
Solar cells, also known as “solar chips” or “photovoltaic cells”, are photoelectric semiconductor sheets that use sunlight to generate electricity directly.
A single solar cell cannot be directly used as a power source. As a power supply, several single solar cells must be connected in series and parallel and tightly packed into components.
Solar panels (also called solar cell modules) multiple solar cells, according to the assembled components, are the core part of the solar power generation system and the most important part of the solar power generation system.
Production process: automatic glazing—automatic string welding—automatic typesetting—automatic confluence—professional EL testing—high temperature lamination—automatic framing—IV testing
$199.00 – $209.00
CompareModel of JA High Efficiency Solar Panel: 430W 435W 440W 445W 450W 455W
- 12-year product warranty.
- 30-year linear power output warranty.
- Higher power generation better LCOE.
- n-type with very Lower LID.
- Better Temperature Coefficient.
- Better low irradiance response.
| Cell | Mono-16BB |
| Weight | 22kg |

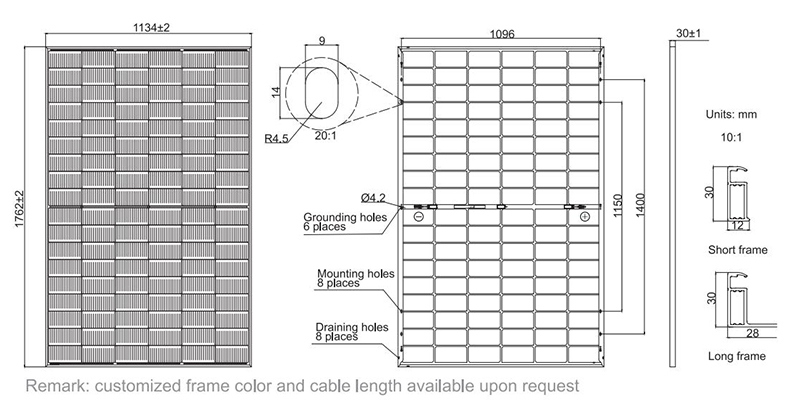

| Dimensions | 1762±2mm×1134±2mm×30±1mm |
| Cable Cross Section Size | 4mm²(IEC),12 AWG(UL) |
| No.of cells | 108(6×18) |
| Junction Box | IP68, 3 diodes |
| Connector | MC4-EVO2A/ QC4.10-351 |
| Cable Length (Including Connector) | Portrait: 300mm(+)/400mm(-);800mm(+)/800mm(Leapfrog) ; Landscape: 1200mm(+)/1200mm(-) |
| Front Glass/Back Glass | 1.6mm/1.6mm |
| Packaging Configuration | 36pcs/Pallet, 936pcs/40HQ Container |

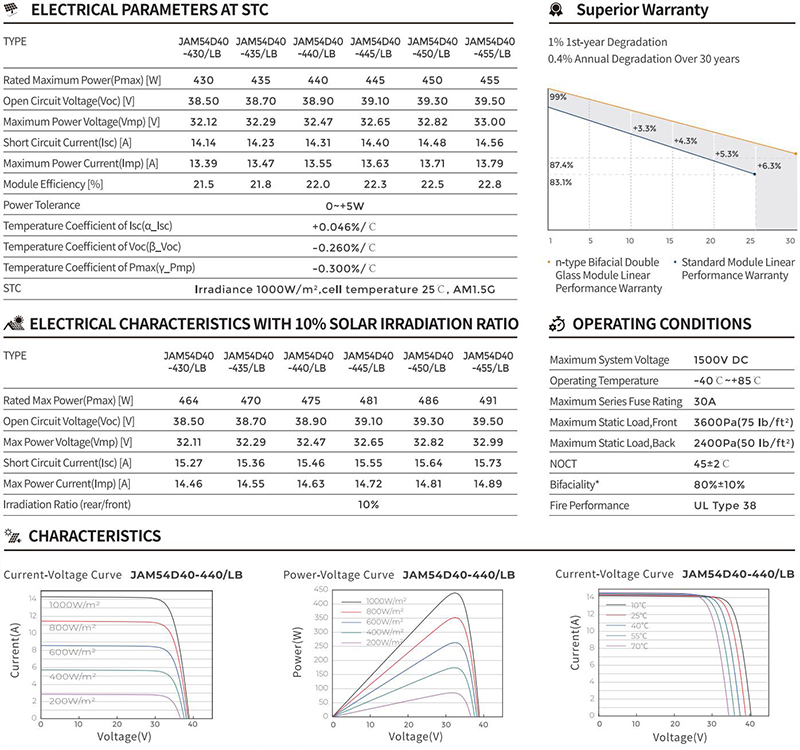

| Max. Power | 430W, 435W, 440W, 445W, 450W, 455W |
|---|
Based on 0 reviews
Be the first to review “JA High Efficiency Solar Panel JAM54D40 430W-455W/LB n-type Bifacial Double Glass Mono Module for Home Use”
Related products
-
JA Solar Panel
JA SMBB N-type Solar Cell Panel JAM78D40 600W-625W Bifacial Double Glass High Efficiency Mono Module JAM78D40 600-625/MB
JA Solar PanelJA SMBB N-type Solar Cell Panel JAM78D40 600W-625W Bifacial Double Glass High Efficiency Mono Module JAM78D40 600-625/MB
JA Solar is a photovoltaic power generation solution platform company with an industrial chain covering silicon wafers, batteries, modules and photovoltaic power plants.
JA Solar has 12 production bases around the world and 13 overseas sales companies, with product footprints in 135 countries and regions.
It is widely used in ground photovoltaic power plants, industrial, commercial and residential distributed photovoltaic systems.
Waterproof, moisture-proof and lightning-proof, it can effectively deal with severe weather such as rain, snow, hail, etc., and prevent internal components from being corroded and damaged.
High conversion rate, multi-busbar technology, environmental protection and health, anti-aging backplane, raw material brand guarantee.
The anodized aluminum frame has a service life of more than 25 years. 93% light transmittance tempered glass.
SKU: n/a -
JA Solar Panel
JA Mono Half-cell Module JAM54S31 395W-420W/GR Serious 11BB PERC Cells and Gapless Ribbon Connection Solar Panels Manufacturer
JA Solar PanelJA Mono Half-cell Module JAM54S31 395W-420W/GR Serious 11BB PERC Cells and Gapless Ribbon Connection Solar Panels Manufacturer
Introduction
Assembled with 11BB PERC cells and gapless ribbon connection technology, the modules can offer higher output power with improved module efficiency, the reduction of cells gaps brings outstanding module appearance. The half-cell configurature makes less shading effect, lower risk of hot spot, as well as more reliable and stable power generation.
- JAM54S31 395-420/GR
- Power Range: 395-420W
- No. of Cells: 108 cells
- Dimension: 1722×1134×30 mm
- Weight: 19.5 kg
- Modules per box: 36pcs
- Modules per 40′ container: 936pcs
SKU: n/a -
JA Solar Panel
JA PERC Solar Panel JAM78D30 580W-605W/MB Series MBB Bifacial Mono PERC Half-cell Double Glass Module High Quality Solar Panels
JA Solar PanelJA PERC Solar Panel JAM78D30 580W-605W/MB Series MBB Bifacial Mono PERC Half-cell Double Glass Module High Quality Solar Panels
Introduction
Assembled with 11BB bifacial PERCIUM cells and half-cell configuration, these double glass modules have the capability of converting the incident light from the rear side together with the front side into electricity, providing higher output power, lower temperature coefficient, less shading loss, as well as enhanced tolerance for mechanical loading.
- 0.45% Annual Degradation Over 30 years.
- Higher output power.
- More reliable, more stable power generation.
- Less shading effect.
- Lower temperature coefficient.
SKU: n/a -
JA Solar Panel
JA MBB Half-cell Module JAM54S30 390-415/MR Series Solar Panel High Efficiency JA Solar PERC Mono Solar Panel
JA Solar PanelJA MBB Half-cell Module JAM54S30 390-415/MR Series Solar Panel High Efficiency JA Solar PERC Mono Solar Panel
Introduction
Assembled with 11BB PERC cells, the half-cell configuration of the modules offers the advantages of higher power output, better temperature-dependent performance, reduced shading effect on the energy generation, lower risk of hot spot, as well as enhanced tolerance for mechanical loading.
- Higher output power.
- Less shading and lower resistive loss.
- Lower LCOE.
- Better mechanical loading tolerance.
SKU: n/a
