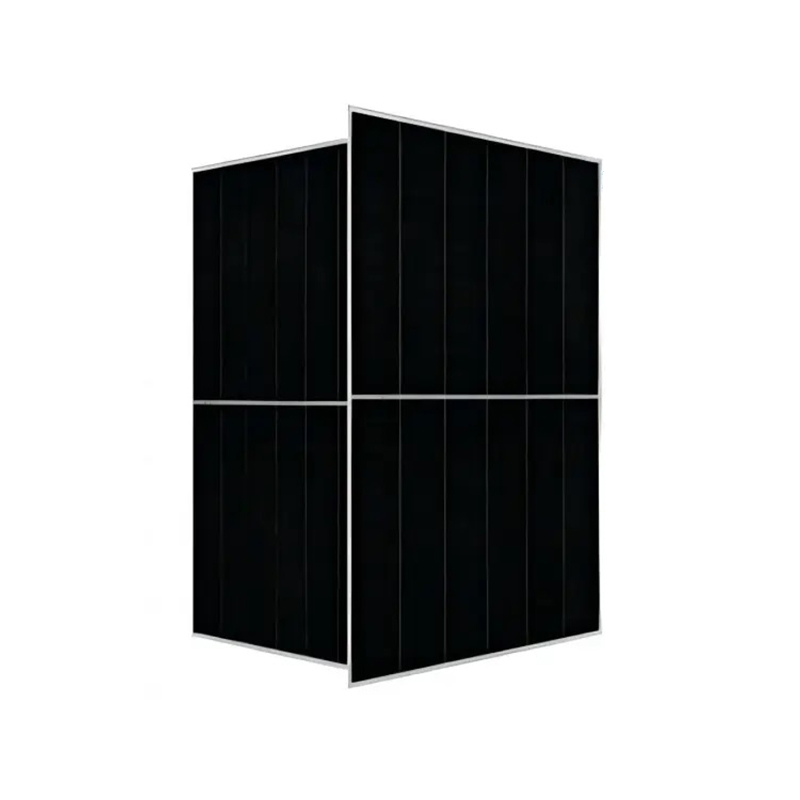

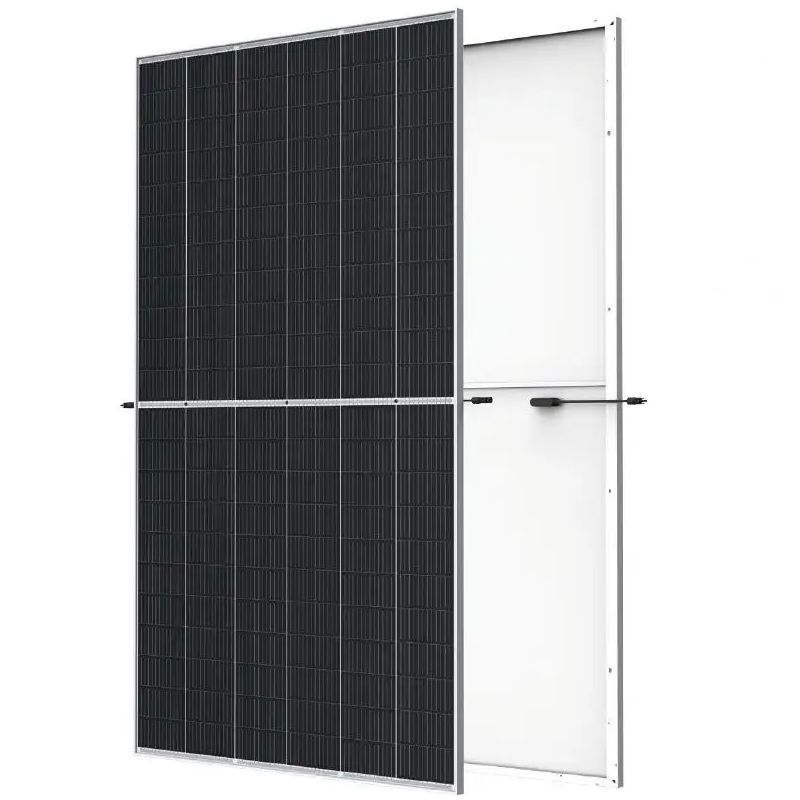

JA Solar Panel Mono-16BB Module JAM72D40 555W-580W/MB Series n-type Bifacial Double Glass High Efficiency Mono Module
Introduction
Power by the lastest SMBB n-type solar cell, half-cell configuration, these modules have higher output power, lower LID, better weak illumination response, and better temperature coefficient.
- 1% 1st-year Degradation.
- 0.4%Annual Degradation over 30 years.
- Higher power generation better LCOE.
- n-type with very Lower LID.
- Better weak illumination response.
- Better Temperature Coefficient.
$206.00 – $216.00
CompareModel of JA Solar Panel: 555W 560W 565W 570W 575W 580W
Product line of JA Solar Panel：
1.Cells Tabbing and Stringing
2.Lay up
3.Lamination
4. Edge Trimming
5.Frame Assembly
6.Junction Box Potting
7.Curing
8. Cleaning
9.Final Power Determination
| Cell | Mono-16BB |
| Weight | 31.8kg |

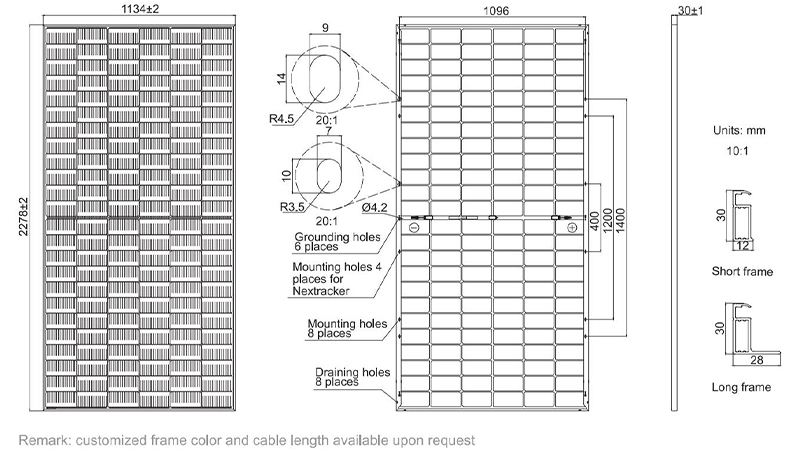

| Dimensions | 2278±2mm×1134±2mm×30±1mm |
| Cable Cross Section Size | 4mm²(IEC),12 AWG(UL) |
| No.of cells | 144(6×24) |
| Junction Box | IP68, 3 diodes |
| Connector | QC4.10-351 / MC4-EVO2A |
| Cable Length (Including Connector) | Portrait: 200mm(+)/300mm(-);800mm(+)/800mm(-)(Leapfrog) ; Landscape: 1300mm(+)/1300mm(-) |
| Front Glass/Back Glass | 2.0mm/2.0mm |
| Packaging Configuration | 36pcs/Pallet, 720pcs/40HQ Container |

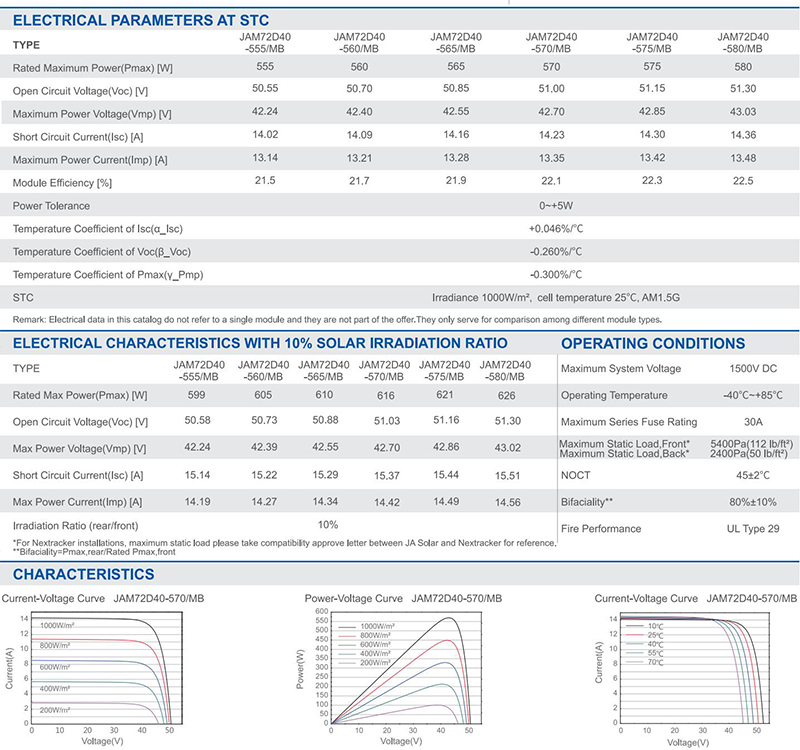

| Max. Power | 555W, 560W, 565W, 570W, 575W, 580W |
|---|
