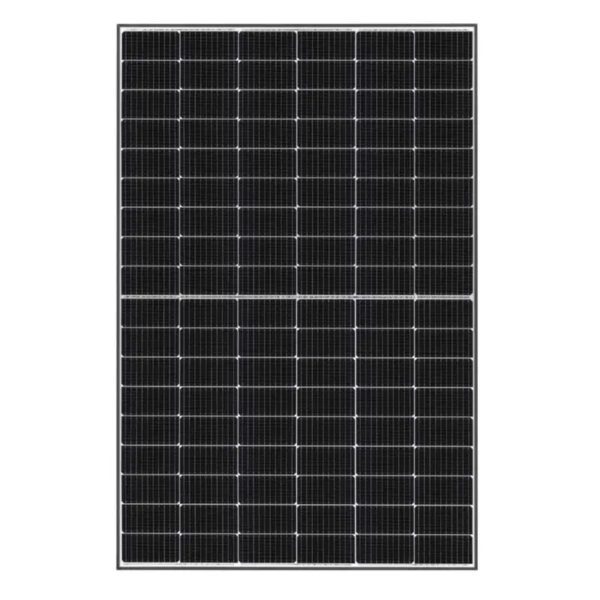

JA Black Frame PV Modules JAM54S30 415W-440W/LR Serious Half-cell Module Mono Solar Panel JA Best-selling Solar Panels
The surface color is uniform.
No obvious chromatic aberration, broken grid.
No defect damage.
Solder joints have no oxidation spots.
Anodized aluminum frame.
Corrosion resistant and more durable.
High strength, strong resistance to mechanical impact.
Price range: $173.00 through $183.00

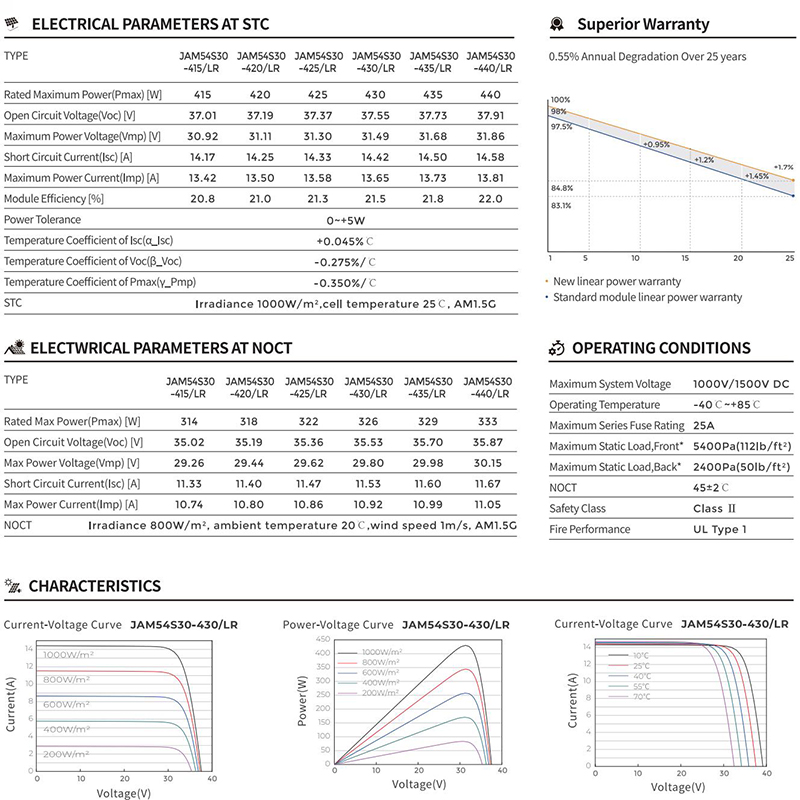

CompareModel of JA Black Frame PV Modules: 415W 420W 425W 430W 435W 440W
| Cell | Mono |
| Weight | 20kg |

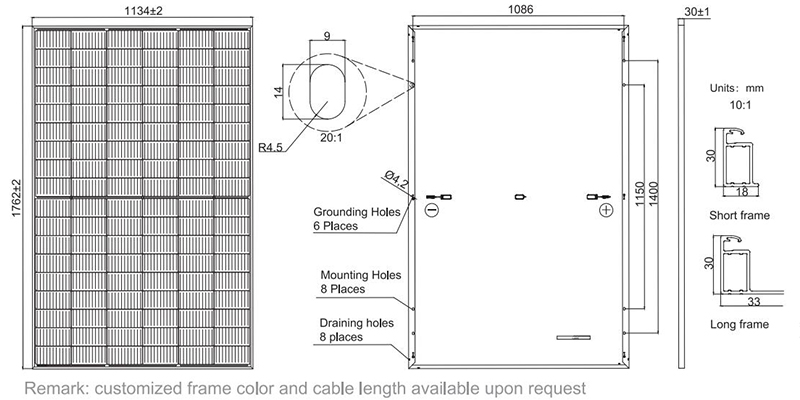

| Dimensions | 1762±2mm×1134±2mm×30±1mm |
| Cable Cross Section Size | 4mm²(IEC),12 AWG(UL) |
| No.of cells | 108(6×18) |
| Junction Box | IP68, 3 diodes |
| Connector | QC4.10-351 / MC4-EVO2A |
| Cable Length (Including Connector) | Portrait: 300mm(+)/400mm(-);800mm(+)/800mm(-)(Leapfrog) ; Landscape: 1200mm(+)/1200mm(-) |
| Front Glass/Back Glass | 2.8mm |
| Packaging Configuration | 36pcs/Pallet, 936pcs/40HQ Container |
| Max. Power | 415W, 420W, 425W, 430W, 435W, 440W |
|---|
Related products
-
Trinasolar Solar Panel
Trina 550W Vertex 425W Solar Full Black Trinasol 450 Wats 150 Cell Solarpanel Panel Fotovoltaico Trinasolar Watt
Trinasolar Solar PanelTrina 550W Vertex 425W Solar Full Black Trinasol 450 Wats 150 Cell Solarpanel Panel Fotovoltaico Trinasolar Watt
excellent visual appearance
·Aesthetic design
Excellent color rendering through battery black treatment and mechanical optimization
·Thinner battery grid makes the module more integrated
Small Size, Big Power
·Compact appearance, small panel power increased to 425WV high-density module technology makes the maximum efficiency reach 21.3%
Application of multi-busbar (MBB) technology to effectively improve optical utilization and reduce internal current consumption
Lower temperature coefficient (-0.34%) and lower operating temperature bring more power generation
Higher power and efficiency, effectively reducing installation costs.
Flexible and easy to configure
· Adapt to mainstream inverters and installation systems
Ideal size, light weight, saving transportation cost
·Diversified installation solutions can support more flexible system design
solid and reliable
·15 years product warranty
25-year warranty to reduce attenuation rate
Improve anti-PID performance through battery process optimization and material control
Passed the mechanical load test of 6000 Pa on the front and 4000 Pa on the back
Apply innovative non-destructive cutting technology to reduce the risk of hidden cracksSKU: n/a -
JA Solar Panel
JA n-type Bifacial Solar Panel JAM54D41 400W-425W/GB Series Double Glass Half-cell Black Module with 25 Years Warranty for Sale
JA Solar PanelJA n-type Bifacial Solar Panel JAM54D41 400W-425W/GB Series Double Glass Half-cell Black Module with 25 Years Warranty for Sale
Introduction
Powered by the latest SMBB n-type solar cell and half-cell configuration, these modules have higher output power, lower LID, better weak illumination response, and better temperature coefficient.
- Higher power generation better LCOE.
- Better weak illumination response.
- n-type with very Lower LID.
- Better Temperature Coefficient
SKU: n/a -
Trinasolar Solar Panel
Best Trinasolar Panel Panneaux Solaires Vertex Bifacial 665w 660w 655w 650w Double Glass Solar Panel Half Cut In The World
Trinasolar Solar PanelBest Trinasolar Panel Panneaux Solaires Vertex Bifacial 665w 660w 655w 650w Double Glass Solar Panel Half Cut In The World
higher customer value
·Effectively reduce the cost of system BOS: achieve lower cost of electricity and improve project yield
Lower power attenuation value in the first year and year by year
The product is compatible with mainstream system design
The maximum power is increased to 670W
·Application of 210mm large silicon wafer technology and half-cut module technology
Application of dense packing technology, module efficiency increased to 21.6%
Application of multi-busbar (MBB) technology to effectively improve optical utilization and reduce internal current consumption
high reliability
·Application of innovative non-destructive cutting technology to reduce the risk of hidden cracks.
Improve the anti-PID performance through battery process optimization and material control.
Passed the mechanical load test of 5400 Pa on the front and 2400 Pa on the back
· Resistant to salt spray, dust, ammonia and other harsh environments
High power generation performance
·Excellent IAM and weak light response performance verified by a third party
Lower temperature coefficient (-0.34%) and lower operating temperature bring more power generation
·Unique version design brings stronger anti-shadow blocking abilitySKU: n/a -
JA Solar Panel
JA MBB Half-cell Module JAM54S30 390-415/MR Series Solar Panel High Efficiency JA Solar PERC Mono Solar Panel
JA Solar PanelJA MBB Half-cell Module JAM54S30 390-415/MR Series Solar Panel High Efficiency JA Solar PERC Mono Solar Panel
Introduction
Assembled with 11BB PERC cells, the half-cell configuration of the modules offers the advantages of higher power output, better temperature-dependent performance, reduced shading effect on the energy generation, lower risk of hot spot, as well as enhanced tolerance for mechanical loading.
- Higher output power.
- Less shading and lower resistive loss.
- Lower LCOE.
- Better mechanical loading tolerance.
SKU: n/a
