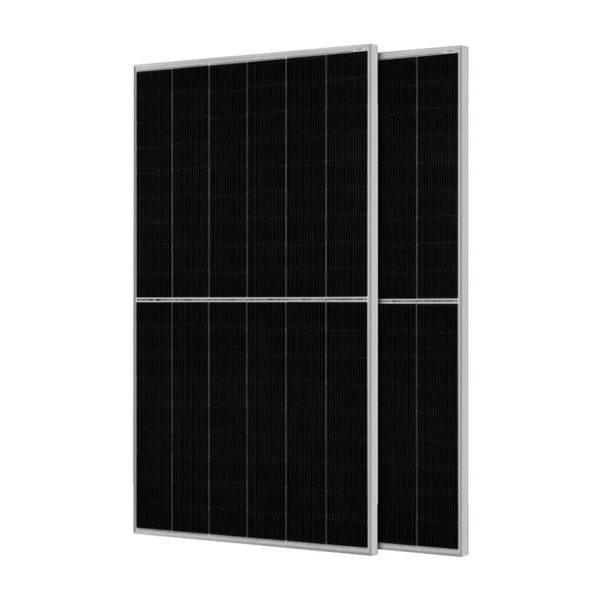

JA Photovoltaic Module JAM54D41 430W-455W/LB Serious n-type Bifacial Double Glass High Efficiency Mono Solar Panel Solar PV Panels
Product line of JA Solar Panel：
1.Cells Tabbing and Stringing
2.Lay up
3.Lamination
4. Edge Trimming
5.Frame Assembly
6.Junction Box Potting
7.Curing
8. Cleaning
9.Final Power Determination
$200.00 – $210.00
CompareModel of JA Photovoltaic Module: 430W 435W 440W 445W 450W 455W
- 12-year product warranty.
- 30-year linear power output warranty.
- Higher power generation better LCOE.
- n-type with very Lower LID.
- Better weak illumination response.
- Better Temperature Coefficient.
| Cell | Mono-16BB |
| Weight | 22kg |

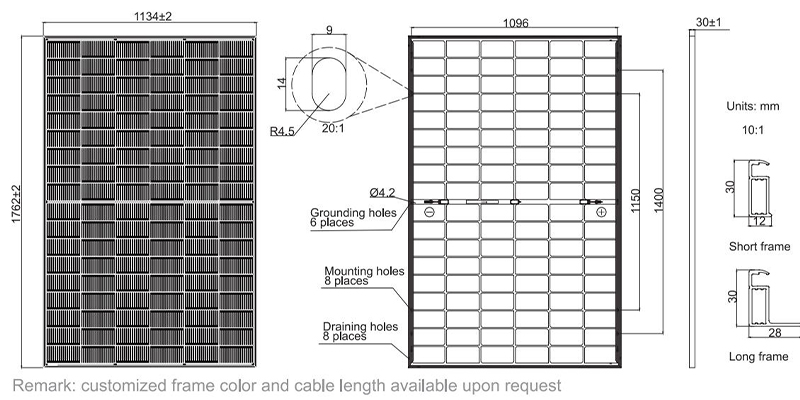

| Dimensions | 1762±2mm×1134±2mm×30±1mm |
| Cable Cross Section Size | 4mm²(IEC),12 AWG(UL) |
| No.of cells | 108(6×18) |
| Junction Box | IP68, 3 diodes |
| Connector | QC4.10-351 / MC4-EVO2A |
| Cable Length (Including Connector) | Portrait: 300mm(+)/400mm(-);800mm(+)/800mm(-)(Leapfrog) ; Landscape: 1200mm(+)/1200mm(-) |
| Front Glass/Back Glass | 1.6mm/1.6mm |
| Packaging Configuration | 36pcs/Pallet, 936pcs/40HQ Container |
| Max. Power | 430W, 435W, 440W, 445W, 450W, 455W |
|---|
