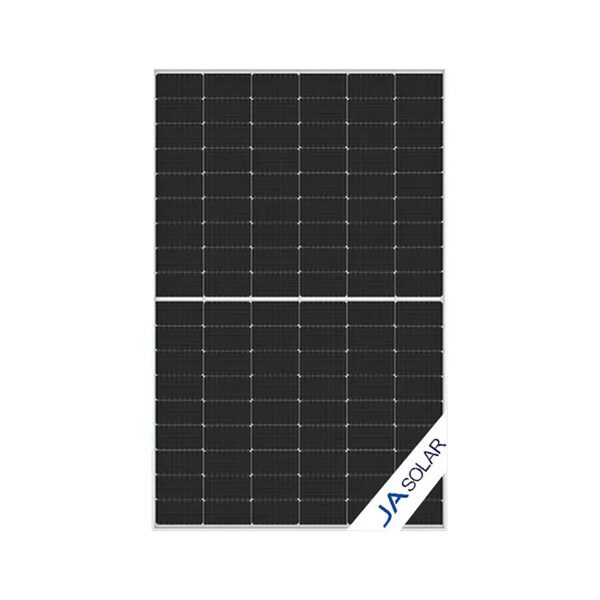

JA MBB Bifacial Mono Solar Panel JAM54D30 400W-425W/GB Serious PERC Half-cell Double Glass Module Solar Panels for Home
Introduction
Assembled with 11BB bifacial PERCIUM cells and gapless ribbon connection technology,these double glass modules have the capability of converting the incident light from the rear side together with the front side into electricity, providing higher output power, lower temperature coefficient, less shading loss, as well as enhanced tolerance for mechanical loading.
- Higher output power.
- Less shading effect.
- More reliable, more stable power generation.
- Lower temperature coefficient.
$187.00 – $197.00
CompareModel of JA MBB Bifacial Mono Solar Panel: 400W 405W 410W 415W 420W 425W
| Cell | Mono |
| Weight | 21.5kg |
| Dimensions | 1722±2mm×1134±2mm×30±1mm |
| Cable Cross Section Size | 4mm²(IEC),12 AWG(UL) |
| No.of cells | 108(6×18) |
| Junction Box | IP68,3 diodes |
| Connector | MC4-EVO2A/ QC4.10-35 |
| Cable Length (Including Connector) | Portrait: 200mm(+)300mm(-); 800mm(+)800mm(-)(Leapfrog); Landscape: 1100mm(+)/1100mm(-) |
| Front Glass/Back Glass | 1.6mm/1.6mm |
| Packaging Configuration | 36pcs/Pallet, 936pcs/40HQ Container |
Strict QC System
- 100% Optimal Testing
Comprehensive QC information management system with barcode ID, Quality traceable system in place to allow quality data flow constantly. - 100% Inspection
Before and After Lamination.
Most stringent acceptance criteria and tightest tolerance, Intelligent alarm and stop mechanism in case of any deviation or errors. - 100% EL Testing
Before and Following Lamination
Ensure “Zero” micro crack monitoring before final Inspection, Continuous line monitoring and video/photo record for each cell and panel. - 100% Cells Sorting
Ensure Colour and Power Difference.
Ensure high yields,consistent performance and durability, First of 52 steps strict quality control and inspection process.
| Power Range | 400W, 405W, 410W, 415W, 420W, 425W |
|---|
