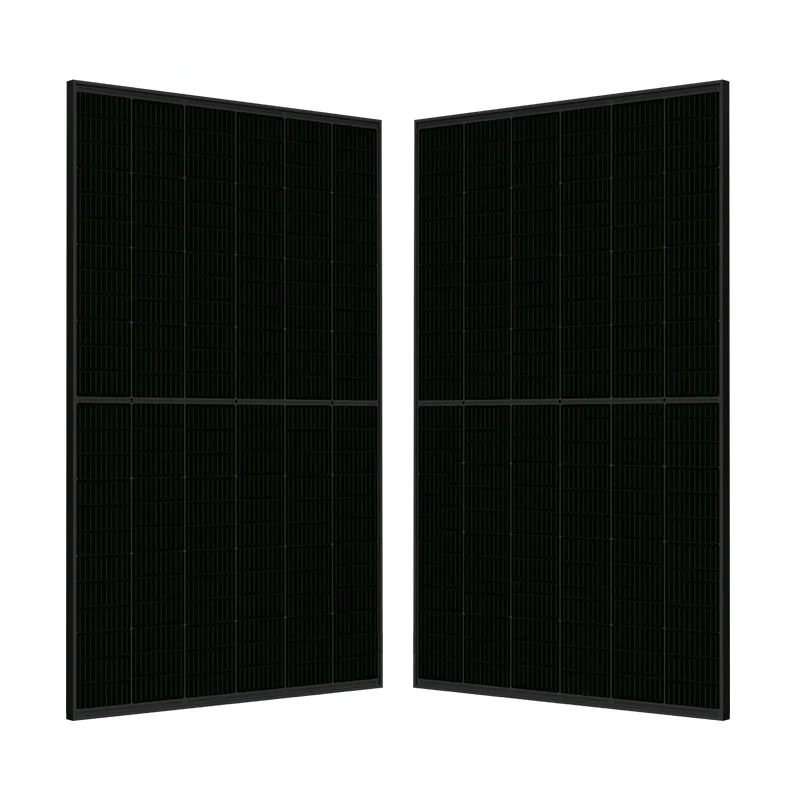

Trina 550W Vertex 425W Solar Full Black Trinasol 450 Wats 150 Cell Solarpanel Panel Fotovoltaico Trinasolar Watt

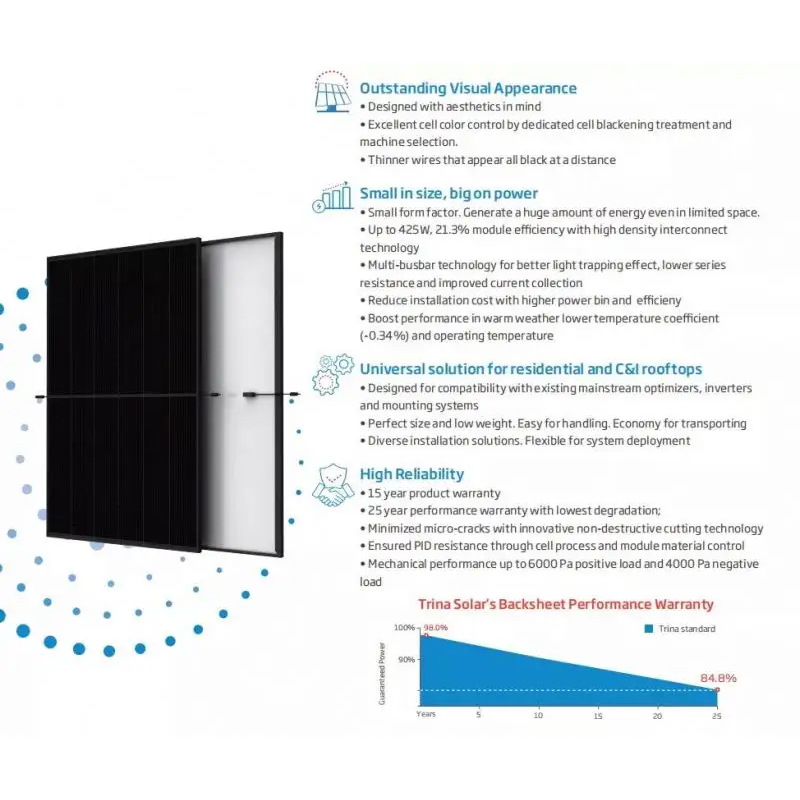

excellent visual appearance
·Aesthetic design
Excellent color rendering through battery black treatment and mechanical optimization
·Thinner battery grid makes the module more integrated
Small Size, Big Power

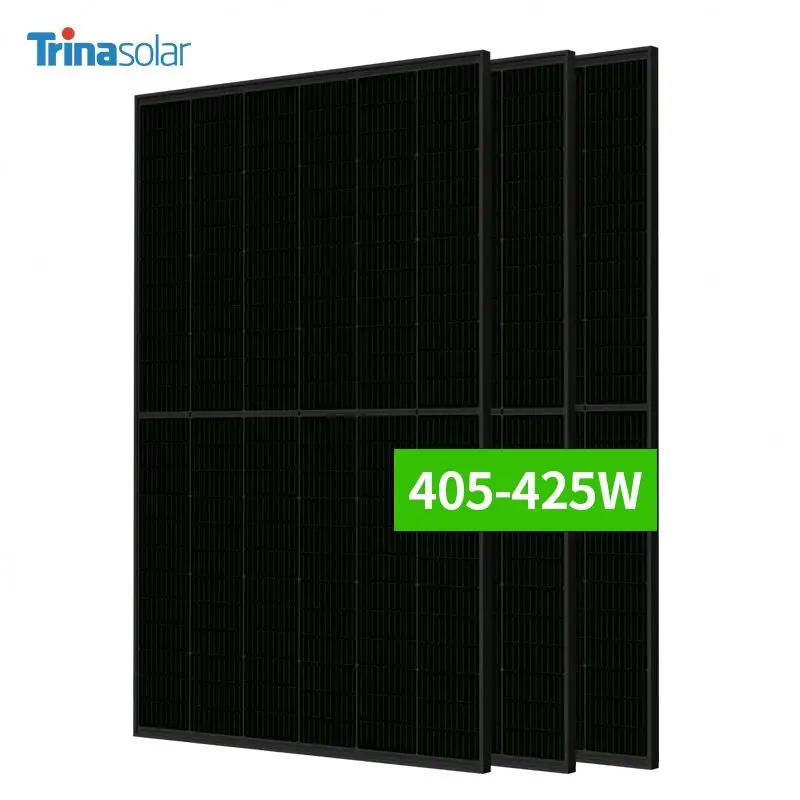

·Compact appearance, small panel power increased to 425WV high-density module technology makes the maximum efficiency reach 21.3%
Application of multi-busbar (MBB) technology to effectively improve optical utilization and reduce internal current consumption
Lower temperature coefficient (-0.34%) and lower operating temperature bring more power generation
Higher power and efficiency, effectively reducing installation costs.
Flexible and easy to configure
· Adapt to mainstream inverters and installation systems
Ideal size, light weight, saving transportation cost
·Diversified installation solutions can support more flexible system design
solid and reliable
·15 years product warranty
25-year warranty to reduce attenuation rate
Improve anti-PID performance through battery process optimization and material control
Passed the mechanical load test of 6000 Pa on the front and 4000 Pa on the back
Apply innovative non-destructive cutting technology to reduce the risk of hidden cracks
$199.00 – $257.00
Compare·Aesthetic design
Excellent color rendering through battery black treatment and mechanical optimization
·Thinner battery grid makes the module more integrated
Small Size, Big Power
·Compact appearance, small panel power increased to 425WV high-density module technology makes the maximum efficiency reach 21.3%
|
Maximum Power.Pmax(W)
|
405
|
410
|
415
|
420
|
425
|
|
Open Circuit Voltage -Voc(V)
|
49.0
|
49.2
|
49.4
|
49.7
|
49.9
|
|
Short -Circuit Current -Isc(A)
|
10.52
|
10.58
|
10.64
|
10.69
|
10.74
|
|
Current at Pmax -Imp(A)
|
9.99
|
10.05
|
10.11
|
10.17
|
10.24
|
|
Voltage at Pmax -Vmp(V)
|
40.6
|
40.8
|
41.0
|
41.3
|
41.5
|
|
Module Effciency
|
20.3
|
20.5
|
20.8
|
21.0
|
21.3
|
| Specification: | 410W, 420W, 425W, 550W |
|---|
