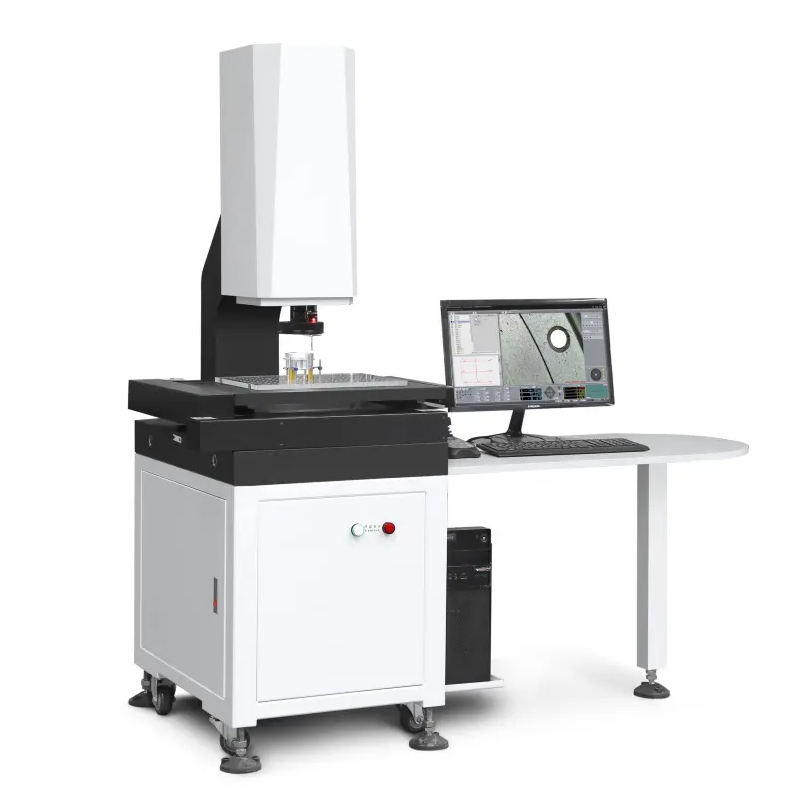

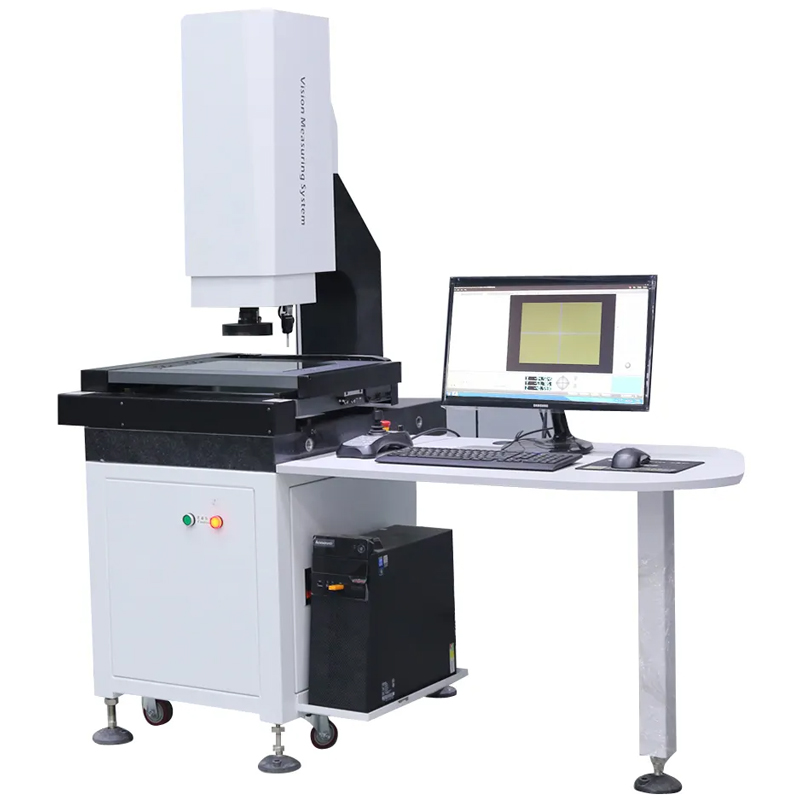

Models of the Image Measuring Instrument
Item | A300 | A400 | A500 | |
Dimension( L×W×H ) | 1600mm×780mm×1700mm | 1750mm×920mm×1700mm | 1900mm×1080mm×1700mm | |
Measuring range( X×Y×Z ) | 300mm×200mm×200mm | 400mm×300mm×200mm | 500mm×400mm×200mm | |
Measuring Accuracy | 2.5+L/200µm | 2.5+L/200µm | 2.5+L/200µm | |
Repeatability | 2.5µm | 2.5µm | 2.5µm | |
Weight | 320kg | 390kg | 460kg | |
Image and Measuring | CCD | Industrail grade color CCD camera | ||
Lens | Manual dented zoom lens 0.7-4.5X/Auto zoom lens 1-10X | |||
Magnification | 18-195X ( For reference only. With different camera and lens the magnification | |||
Field of View | 8.1~1.3mm | |||
Working distance | 108mm | |||
Linear scale resolution | 0.5 µm ( 0.1µm for option ) | |||
Driving system | CNC control, close-loop AC Servo driving system, joystick, mouse or keyboard control. | |||
Illumination | Programmable 8 sections LED surface light 40 section LED ring light, co-axaillight,movable mult color ring light for option. |
Features
- High quality with great originality and fine-tuning
- Aluminum work stage, makes the motion control fast reacting and flexible.
- Standard with precise linear slide way, offers smarter mechanical structure and higher accuracy.

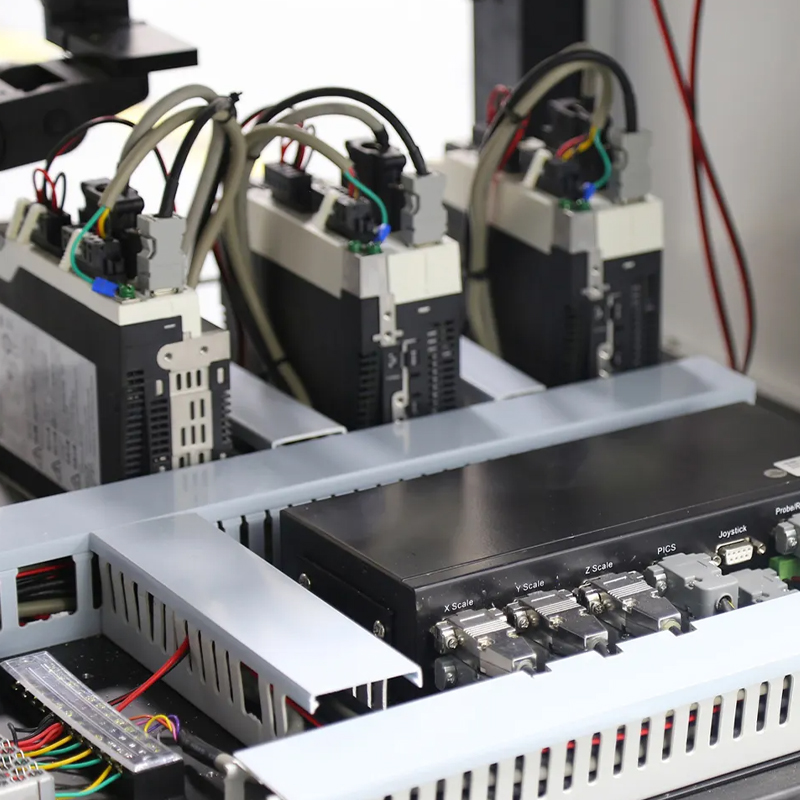

- Integrated control system, embedded with motion control, and all signal control as illumination and linear scale reading, ensur the performance of the machine is extremely stable.
- With powerful automation accessories, the machine is able to work with touch probes, non-contact measuring sensors or robots, which gives more possibilities and efficiency to the series.
