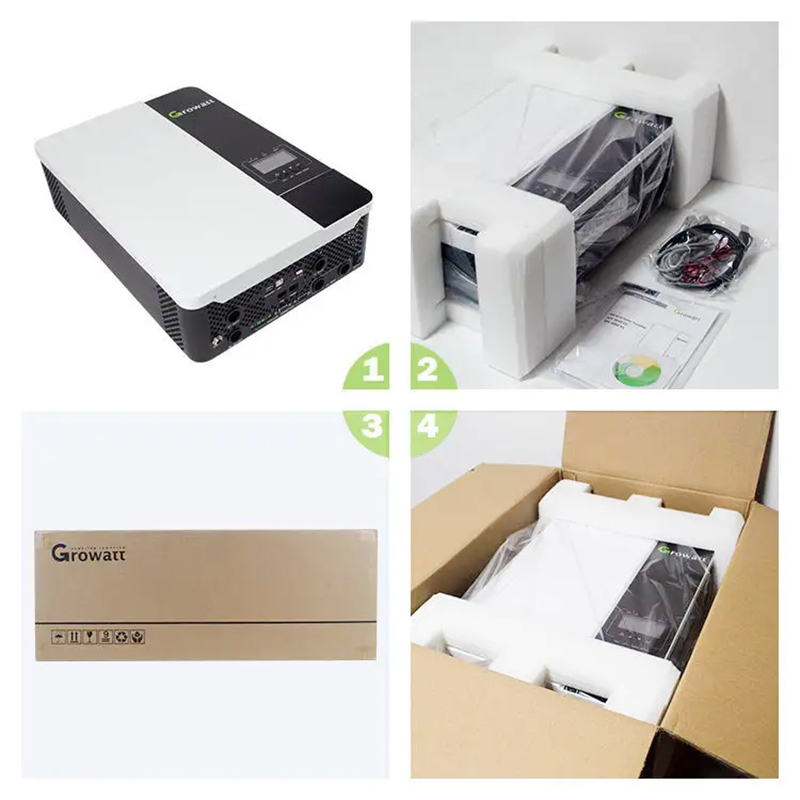

Growatt SPF5000ES Solar off-Grid Energy Storage Inverter Supplier 5kw Off-grid Inverter
· Integrated MPPT charge controller
· Equalization charging function.
· Work with battery or without battery.
· Maximum PV input voltage up to 450VDC.
· Configurable grid or solar input priority.
· Optional WIFI/ GPRS remote monitoring.
· Support parallel operation for capacity expansion up to 30kW.
· PV and Grid power the load jointly if PV energy unsufficient.
· Flexibly schedule the Inverter charging and discharging time.
$690.00
CompareStorage Inverter Product Description
· Integrated MPPT charge controller
· Equalization charging function.
· Work with battery or without battery.
· Maximum PV input voltage up to 450VDC.
· Configurable grid or solar input priority.
· Optional WIFI/ GPRS remote monitoring.
· Support parallel operation for capacity expansion up to 30kW.
· PV and Grid power the load jointly if PV energy unsufficient.
· Flexibly schedule the Inverter charging and discharging time.
|
Model
|
SPF 3500ES
|
SPF 5000ES
|
||
|
Battery Voltage
|
48VDC
|
|||
|
Battery Type
|
Lithium/Lead-acid
|
|||
|
Inverter Output
|
||||
|
Rated Power
|
3500VA/3500W
|
5000VA/5000W
|
||
|
Parallel Capability
|
Yes,6 units maximum
|
|||
|
AC voltage Regulation(Battery Mode)
|
230VAC±5%@50/60Hz
|
|||
|
Surger Power
|
7000VA
|
10000VA
|
||
|
Efficiency(Peak)
|
93%
|
|||
|
Waveform
|
Pure sine wave
|
|||
|
Transfer Time
|
10ms typical,20ms Max
|
|||
|
Solar Charger
|
||||
|
Maximum PV Array Power
|
4500W
|
6000W
|
||
|
MPPT Range@Operating Volytage
|
120VDC-430VDC
|
|||
|
Maximum PV Array Open Circuit Voltage
|
450VDC
|
|||
|
Maximum Solar Charger Current
|
80A
|
100A
|
||
|
AC Charger
|
||||
|
Charge Current
|
60A
|
80A
|
||
|
AC Input Voltage
|
230VAC
|
|||
|
Selectable Voltage Range
|
170-280VAC(For Personal Computers);90-280VAC(For Home Appliances)
|
|||
|
Frequency Range
|
50/60Hz
|
|||
|
Physical
|
||||
|
Protection Degree
|
IP20
|
|||
|
Dimension(W/H/D)
|
330/485/135mm
|
330/485/135mm
|
||
|
Net Weight
|
11.5kgs
|
12kgs
|
||
|
Operating Environment
|
||||
|
Humidity
|
5% to 95% Relative Humidity
|
|||
|
Alititude
|
<2000m
|
|||
|
Operating Temperature
|
0ºC-55ºC
|
|||
|
Storage Temperature
|
-15ºC-60ºC
|
|||
