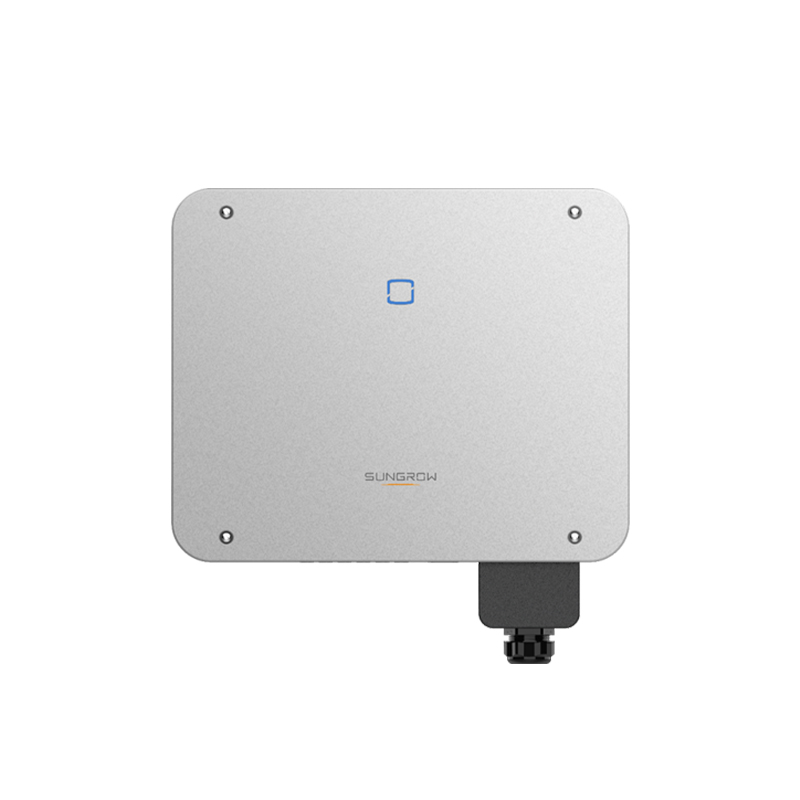

Sungrow Inverter Solar Energy System SG25/30/33CX-P2 25kW 30kW 33kW On Grid Solar Inverter in Stock Multi-MPPT String Inverter
Sungrow Inverter Solar Energy System SG25/30/33CX-P2 25kW 30kW 33kW On Grid Solar Inverter in Stock Multi-MPPT String Inverter - Image 2
Sungrow Inverter Solar Energy System SG25/30/33CX-P2 25kW 30kW 33kW On Grid Solar Inverter in Stock Multi-MPPT String Inverter - Image 3

Sungrow Inverter Solar Energy System SG25/30/33CX-P2 25kW 30kW 33kW On Grid Solar Inverter in Stock Multi-MPPT String Inverter

Compare
  • Dimensions ( W * H * D ) : 645 mm * 575 mm * 245 mm
  • Mounting Method : Wall-mounting bracket
  • Weight : 38 kg
  • Degree of protection : IP66
  • Corrosion : C5
  • Night power consumption : ＜5W
  • Operating ambient temperature range : -30ºC – 60ºC
  • Allowable relative humidity range (non-condensing) : 0% – 100 %
  • Cooling method : Smart forced air cooling
  • Max. operating altitude : 4000m
  • Display: LED, Bluetooth+APP

$2,005.00

Compare

Features of Sungrow Inverter

  • DC 15A current input, compatiable with over 500W+ PV module
  • Dynamic shading optimization mode
  • Built-in PID recovery function
  • Key component diagnosis and protection
  • Smart IV Curve Diagnosis
  • Grid fault record function, easy for remote O&M
  • Easy to handle thanks to 34% weight reduced
  • Plug and Play with Buckle Design
  • IP66 protection and C5 Anti-corrosion
  • DC Type I+II SPD, AC Type II SPD
  • Support AFCI 2.0 function

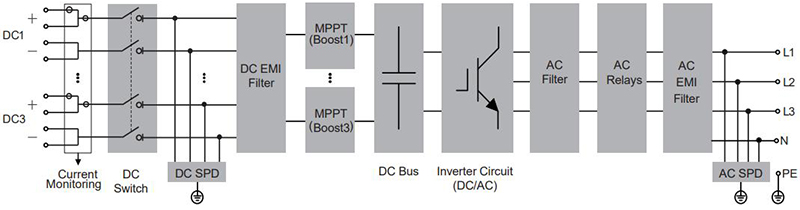

CIRCUIT DIAGRAM

EFFICIENCY CURVE (SG33CX-P2)

Type designation SG25CX-P2 SG30CX-P2 SG33CX-P2
Input (DC)
Recommended max. PV input power 35kWp 42kWp 46.2kWp
Max.PV input voltage 1100V 1100V 1100V
Min.PV input voltage / startup input voltage 160V/200V 160V/200V 160V/200V
Rated PV input voltage 600V 600V 600V
MPP voltage range 160V-1000V 160V-1000V 160V-1000V
No. of independent MPPinputs 3 3 3
No. of PV strings per MPPT 2 2 2
Max.PV input current 90A(30A*3) 90A(30A*3) 90A(30A*3)
Max. DC short-circuit current 120A(40A*3) 120A(40A*3) 120A(40A*3)
Max.current for DC connector 30A 30A 30A
Output (AC)
Rated AC output power 25kW(415V@50ºC)* 30kW(415V@50ºC)* 33kW(415V@50ºC)*
Max.AC output apparent power 27.5kVA(415V@50ºC)* 33kVA(415V@50ºC)* 36.3kVA(415V@50ºC)*
Max.AC output current 41.8A 50.2A 55.2A
Rated AC output current(at 230V) 36.2A 43.5A 47.8A
Rated AC voltage 3/N/PE, 220/380V, 230/400V 3/N/PE, 220/380V, 230/400V 3/N/PE, 220/380V, 230/400V
AC voltage range 312 V – 480 V 312 V – 480 V 312 V – 480 V
Rated grid frequency 50 Hz / 60 Hz 50 Hz / 60 Hz 50 Hz / 60 Hz
Grid frequency range 45Hz – 55Hz / 55Hz – 65Hz 45Hz – 55Hz / 55Hz – 65Hz 45Hz – 55Hz / 55Hz – 65Hz
Harmonic ( THD ) <3% (at rated power) <3% (at rated power) <3% (at rated power)
Power factor at rated power / Adjustable power factor >0.99 / 0.8leading – 0.8lagging >0.99 / 0.8leading – 0.8lagging >0.99 / 0.8leading – 0.8lagging
Feed-in phases / connection phases 3 / 3-N-PE 3 / 3-N-PE 3 / 3-N-PE
Efficiency
Max. efficiency / European efficiency 98.4% / 98.2% 98.5% / 98.3% 98.5% / 98.3%

Protection

Grid monitoring Yes
DC reverse connection protection Yes
AC short-circuit protection Yes
Leakage current protection Yes
Surge protection DC Type I+II / AC Type II
Ground fault monitoring Yes
DC switch Yes
PV String current monitoring Yes
Arc fault circuit interrupter (AFCI) Yes
PID recovery function Yes
Optimizer compatibility ** Optional

* PV input voltage need over 630VDC
* *For optimizer compatibility, please consult Sungrow before placing an order
