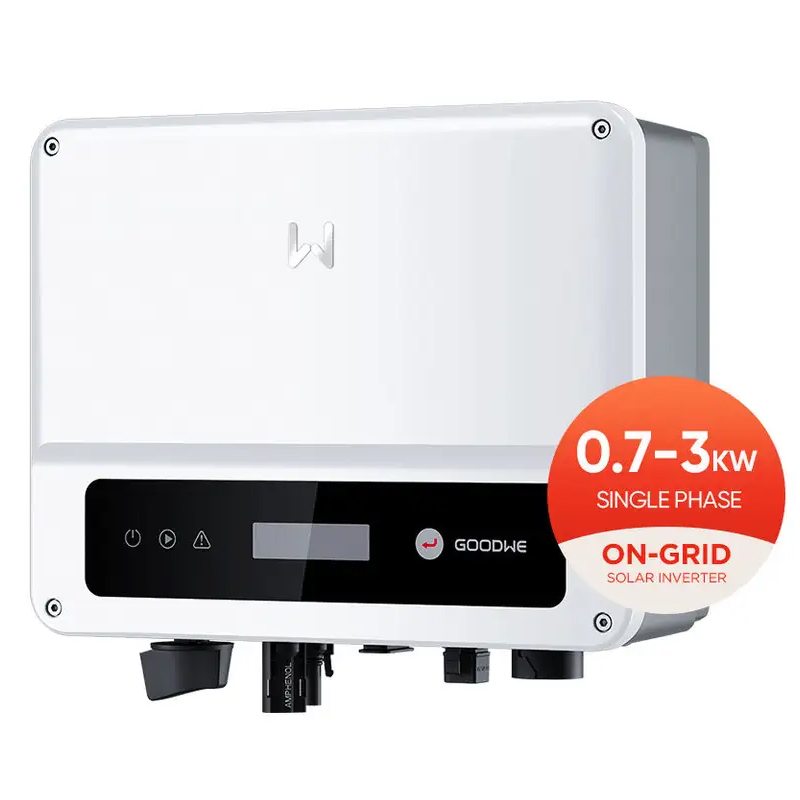

Goodwe Solar Power On Grid Inverter GD5000-XS 700W 1kw 3kw 5kw 6kw For Home Photovaltic System single phase 220V 230V

Add to wishlist
Compare

Maximum efficiency up to 97.6%
Maximum 1.3 times DC over-provisioning
1.1 times AC continuous overload
A4 paper size

$437.00

Compare
Inverter Maximum efficiency up to 97.6%
Maximum 1.3 times DC over-provisioning
1.1 times AC continuous overload
A4 paper size
Specification
Technical parameters
GW-1000XS
GW-1500XS
GW-2000XS
GW-2500XS
GW-3000XS
Efficiency
Maximum efficiency
97.20%
97.20%
97.30%
97.50%
97.50%
The input
Recommended max. PV power 1
1000wp
1500wp
2000wp
2500wp
3000wp
Max. input voltage
450V
Start voltage
40v
Max. input current per MPPT
12.5A
Maximum short circuit current
15.6A
Nominal Output Voltage
230V
Rated input voltage
360V
Number of MPP Trackers
1
Number of Strings per MPPT
1
The output
Grid connection
Single-phase
Rated output
1000W
1500W
2000W
2500W
3000W
Maximum apparent power
1000VA
1500VA
2000VA
2500VA
3000VA
Maximum active power
1000W
1500W
2000W
2500W
3000W
Rated output voltage
230Vac
Output voltage frequency
50HZ/60HZ
Maximum output current
4.8A
7.2A
9.6A
12.0A
14.3A
Max. total harmonic distortion
<3%
Output (Backup Power via Backup Box-B1)
Rated output voltage
220 V / 230 V
Power factor range
0.8 leading … 0.8 lagging
Features & Protections
Input-side disconnection device
Yes
Anti-Islanding protection
Yes
DC reverse polarity protection
Yes
Insulation monitoring
Yes
DC surge protection
Yes, compatible with TYPE III protection class according to EN/IEC 61643-11
AC surge protection
Yes, compatible with TYPEIII protection class according to EN/IEC 61643-11
Residual current monitoring
Yes
AC overcurrent protection
Yes
AC short-circuit protection
Yes
AC overvoltage protection
Yes
Arc fault protection
Yes
Ripple receiver control
Yes
Integrated PID recovery
Yes
Battery reverse charging from grid
Yes
Nighttime Power Consumption
Yes

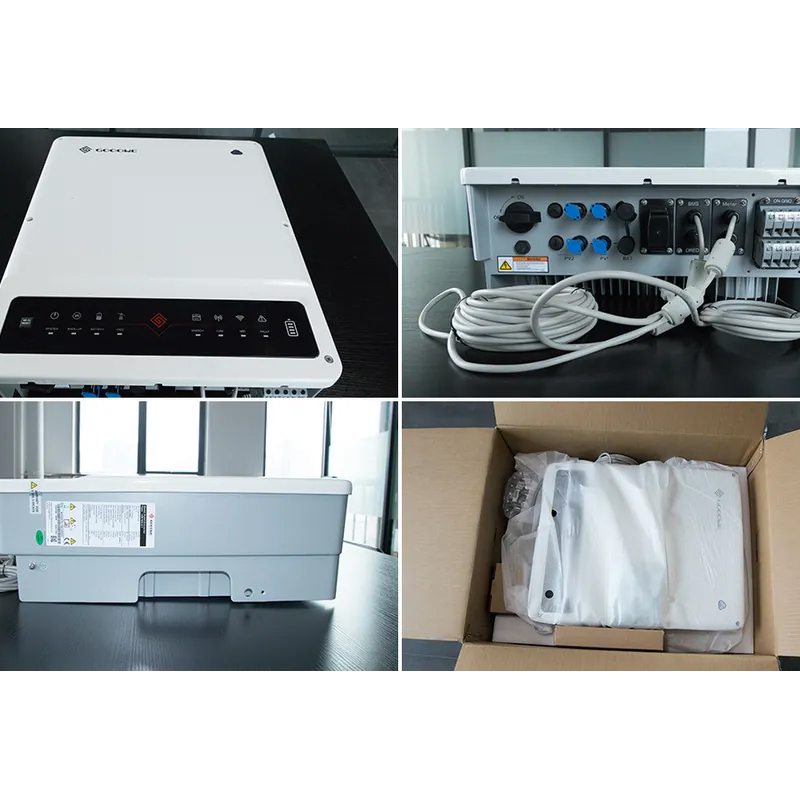

Packing & Delivery
Indway XS series photovoltaic inverter adopts a new hardware topology design, selects the latest generation of power devices, integrated power boards, greatly optimizes and improves the production process of the product, and greatly improves the consistency of the whole machine and the reliability and stability of performance.
The new die-casting cabinet design is beautiful and elegant, which effectively guarantees that the product can adapt to different temperature and humidity installation environments. This model conforms to the trend of household demand, and raises the power density to a new level.
The size of the front is equivalent to that of A4 paper, and the technology is far ahead of the products of the same level in the industry.
