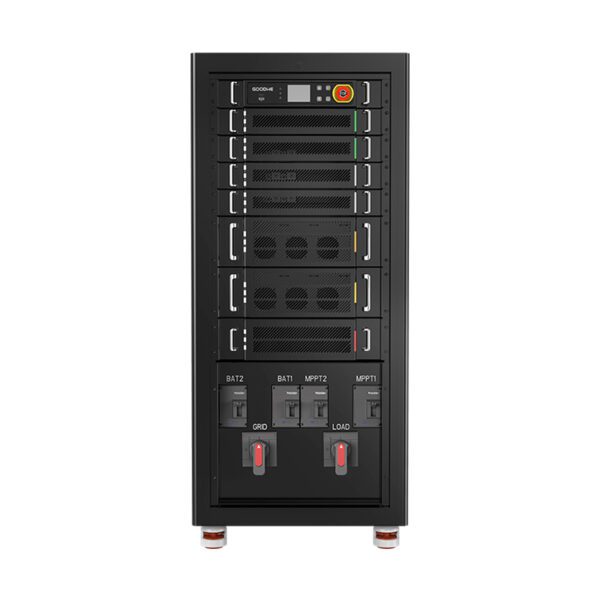

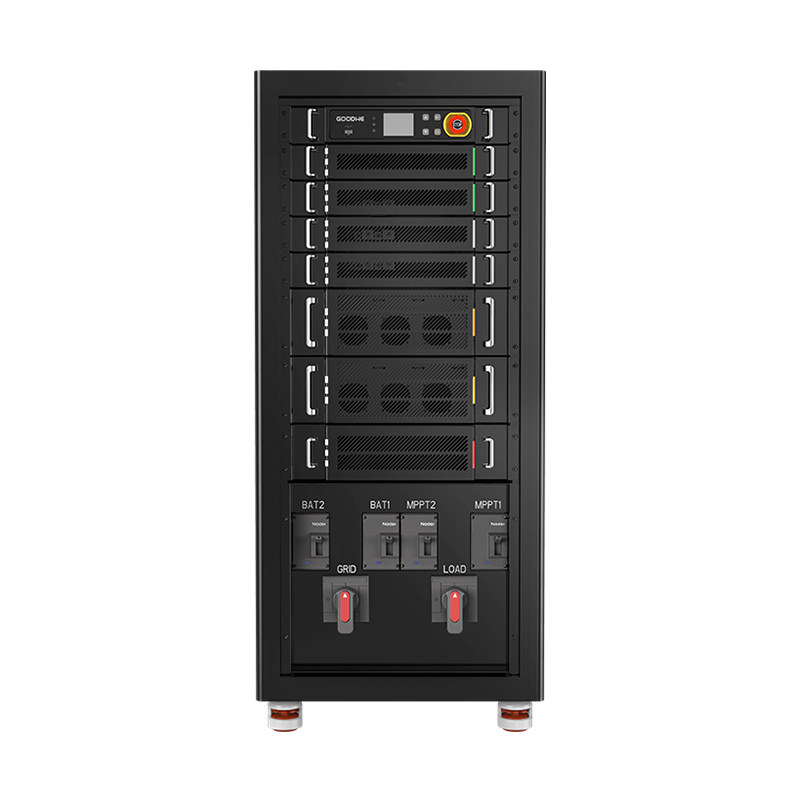

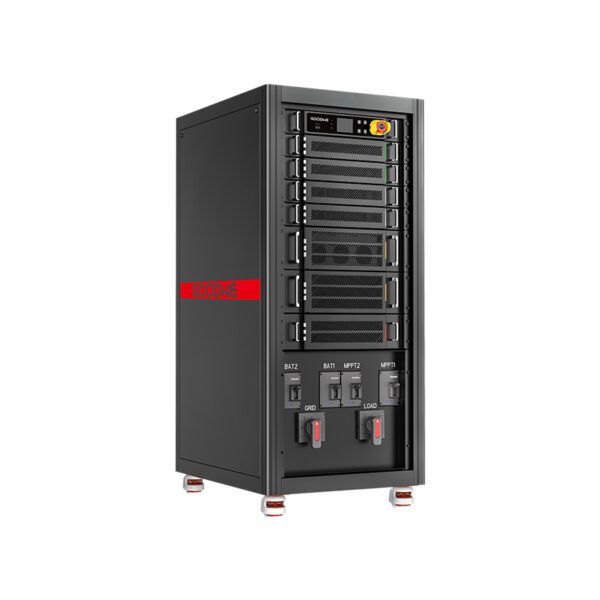

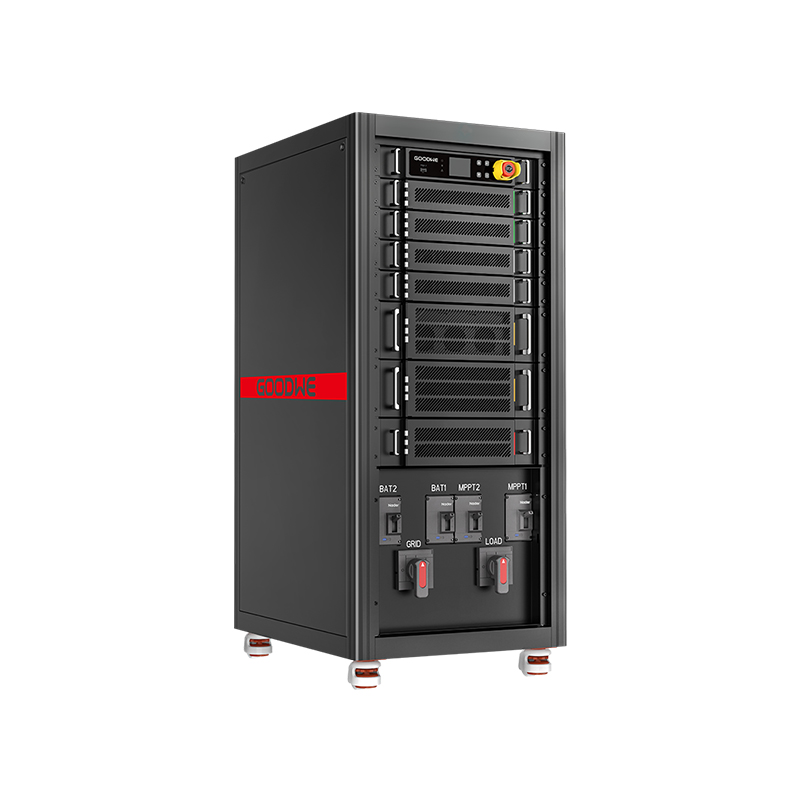

Hot Sale Factory Direct Price Battery Storage Inverter Goodwe GW50K-ETC GW100K-ETC solar inverters

Add to wishlist
Compare

Modular design, easy installation
Built-in Bluetooth, compatible with Modbus protocol
1.1 times continuous AC overload
Support photovoltaic access
Support three-phase unbalanced access
Less than 10ms to seamlessly enable backup power
With anti-backflow function
Shaving peaks and filling valleys to increase self-use rate

$4,375.00

Compare

GoodWe Inverter ETC series photovoltaic hybrid energy storage system supports functions such as photovoltaic access, battery energy storage, grid-connected output, and off-grid output, and can be connected to high-voltage energy storage batteries ranging from 200V to 865V.

Streamlined and intelligent modular design, composed of MPPT, DC/DC, DC/AC, STS, EMS and other modules, can meet various application requirements through the combination of modules. It supports three-phase unbalanced access/output, system expansion, and intelligent electrical load management.

1.1 times continuous AC overload output, support demand management, integrated RSD, output overvoltage protection, APP monitoring to ensure system safety.

Technical Parameter
GW50K-ETC
GW100K-ETC
Battery input parameters
Battery Type
Li-ion Battery
 Rated Battery  Voltage（V)
620
Battery Voltage Range （V)
200~865
Max Continuous Charge Current （A)
200
Number of Battery Input Circuits
1
Maximum Continuous Discharge Current （A)
100
200
Maximum Charging Power （W)
50000
100000
Maximum Discharge Watt （W)
50000
100000
PV Input Parameters
Max. Input Power (W）
65000
130000
Max. Input Voltage (V）
1000
1000
MPPT Range (V)
250~850
250~800
Start-up Voltage (V)
180
180
Rated Output Voltage (V)
600
600
Max. Input Current (A)
100
100
Mac. Short Current (A)
125
125
Max Back-filling Current of the PV Array
0
0
No. of MPPT Rackers
1
2
No. of Input Strings per Tracker
8
8
On-grid Output Parameters
Rated grid-Connected Output Apparent Power （VA）
50000
100000
Maximum grid-Connected Output Apparent Power （VA）
52500
105000
Grid Output Rated Apparent Power
50000
100000
PV （VA）
55000
110000
Rated Power Output（V)
400, 3L/N/PE
Frequency of output voltage （Hz）
50
Maximum grid-tied Output Current（A)
76
152
Max Input Current （A)
100
200
Rated Output Current (A)
72.5
145
Power Factor
~1
Output Current THD
<3%
Off-grid Output Parameters
Off-grid Apparent Power Rating （VA）
50000
100000
Maximum Output Apparent Power （VA）
55000
110000
Maximum Output Current （A)
76
152
Rated output voltage （V)
400, 3L/N/PE
Rated output voltage frequency （Hz）
50
Total Voltage Waveform Distortion Rate
<3%
Efficiency
Max. Efficiency
97.60%
97.60%
Battery side ，AC side Maximum Efficiency
97.20%
97.20%
Basic Parameter
Operating Temperature Range (℃)
-25~+60
Relative Temperature
0~95%
Maximum Operating Altitude (m)
3000
Cooling Model
Intelligent
HMI
LED&LED&APP
BMS Communication
RS485/CAN
Meter Communication
RS485
Monitor Mode
RS485, LAN/Bluetooth
Weight (KG)
142
180

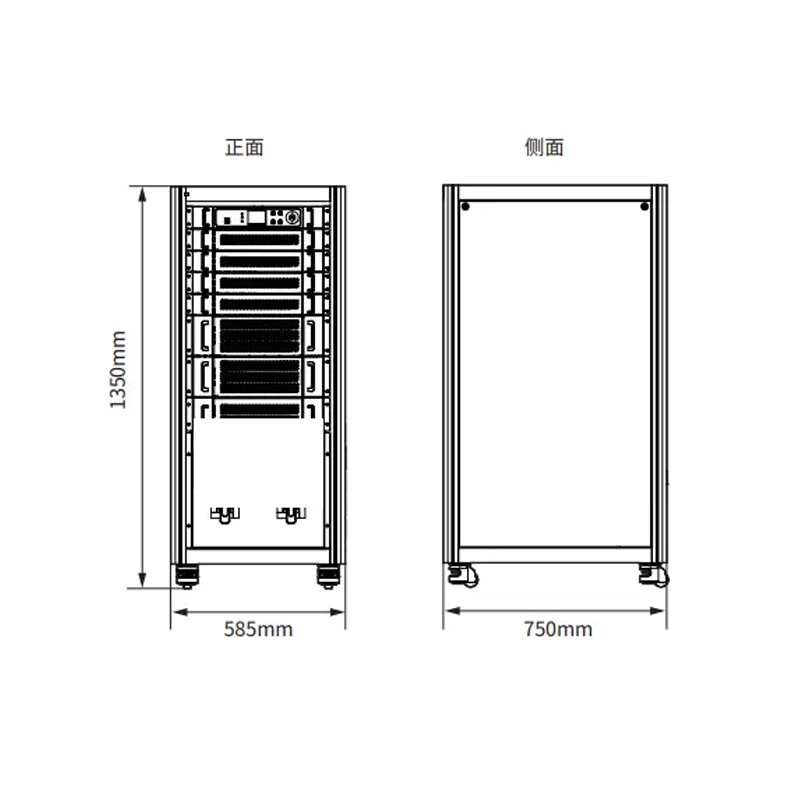

Size (mm)
585*1360*750mm
Topology
Transformerless
Night Power Expenditure
null
Protection Class
IP20
Installation
STAND
Category: Tags: ,
Specification

530w, 535w, 545w
