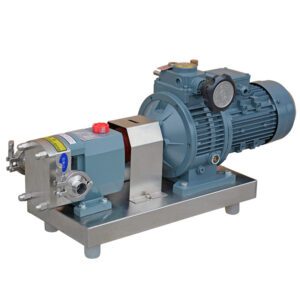

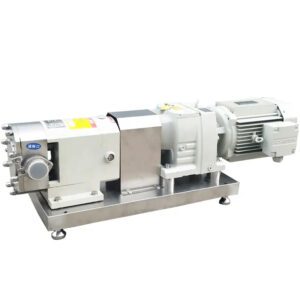

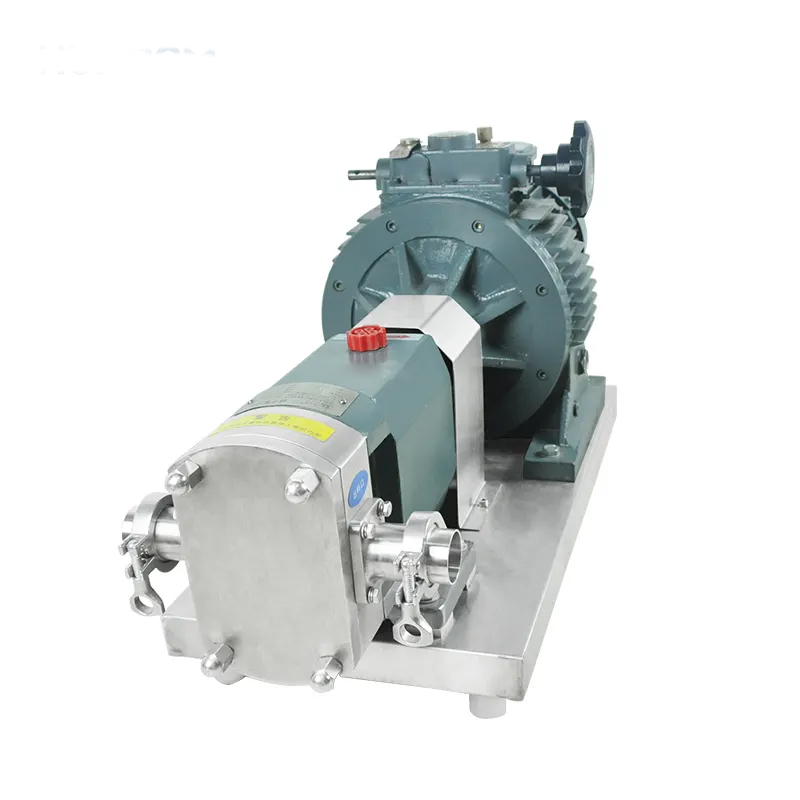

Food grade high viscosity sugar syrup or liquids with solid particles lobe transfer pumps

Food grade high viscosity sugar syrup or liquids with solid particles lobe transfer pumps
working principle:
sugar syrup and other liquids lobe transfer pumps is also named rotary lobe epump, three-lobe pump, sole pump,etc. When the 2 simultaneous reverse rotating rotors(with 2-4 gears)revolve, it produces suction force at the inlet(vacuum),which intakes the material delivered.The 2 rotors divide the rotor housing into many smaller parts and revo-Ive in the sequence of a→b→c→d.When it revolves to position a,only housing I is filled with medium;when it revolves to position b,housing B encloses part of the medium,when it goes to position c, housing A encloses medium,and finally it goes to position d,then housing A,B and II are interlinked and the medium is transported to the outlet.As this process is repeated,medium(material)is transpor-ted continuously.
Product Feature:
1, Between Rotor and stator keep a certain gap,no friction coefficient and long service life.
2, High efficiency and energy saving,conveying smooth,low failure rate, reliable sealing and low noise.
3, Simple assembly and disassembly,maintenance,cheaning is convenient,less easyworn parts.
4, To keep the continuity of operation reliability and no leak time.
5, After to use of special material,may conveying the sludge and sewage containing solid grain of the granular.
6, May conveying the medium viscosity for less than or equal to one million cp,and contain solid content is sixty percent of the slurry.
7, May conveying the vapor,fluid and solid three-phase mixed material.
8, This pump to use special stainless steel,can conveying strong corrosive fluid.
9, Configuration frequency transfurer,can adjust flow,and can make the general metering pump use.
10,According to user needs,in the pump shell increase thermal insulation and health-grade safety valve.
11,Have a strong self suction.
12,Conveying medium ingredients won’t change.
13,According to the user requirements of connect,can choose flange,threaded type,fast interface type and mobile.
Using Range Profile:
1, Food industrial: butter milk,chocolate,syrup,cheese,malt juice,beer,soda,water jelly,
pudding,fruit juice beverages,tomato sauce,fruit mud,vegetables paste,jelly,flavouring agent,fruit filling,cooking oil and dilute cream, etc.
2, Daily use industrial:hair gel, toothpaste,detergent,shampoo,shoe polish,cosmetics,and,honey etc.
3, Pharmaceutical industry: emulsifier, syrup,biological products and royal jelly,etc
4, Chemical industry:paint,dye,lubricate oil,emulsified asphalt,adhesive and glass glue,etc.
5, Building industry: corrosion waterproof coating,ceramic coating,paint coating and ceramic material,etc.
6, Other industry:textile industry,papermaking industry and biological chemical industry,etc.

Sugar syrup and other liquids lobe transfer pumps parameter:
