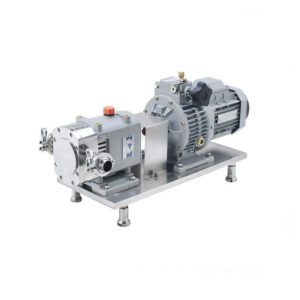

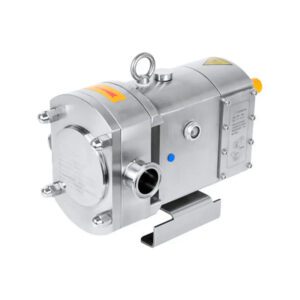

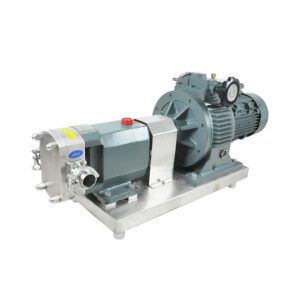

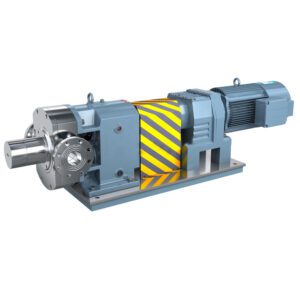

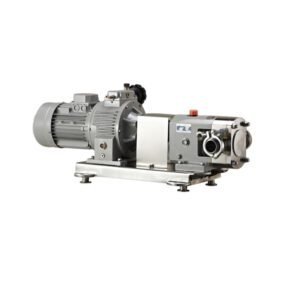

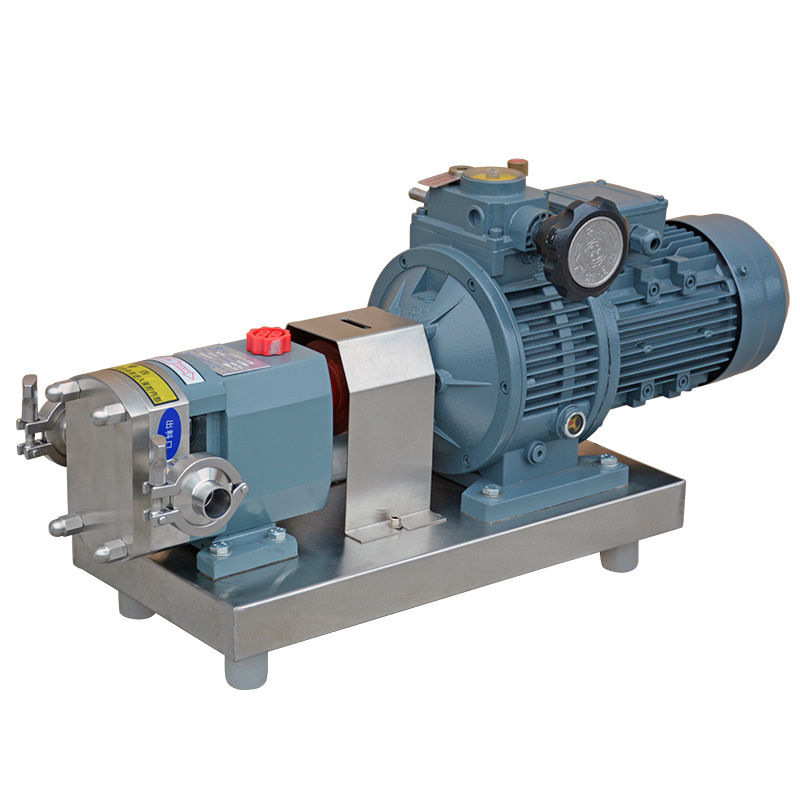

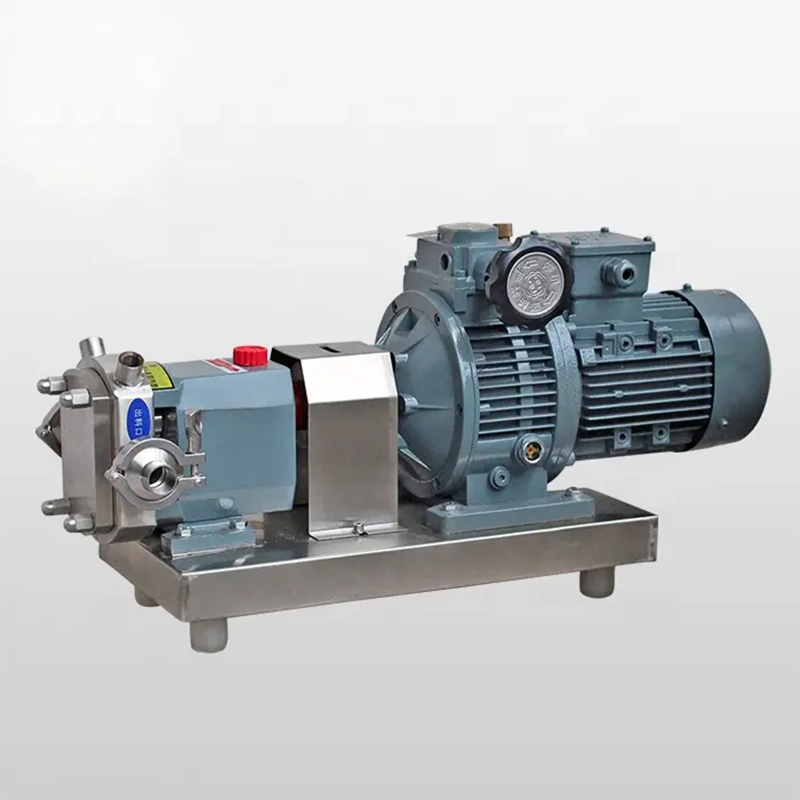

Lobe rotor pump Introduction:
1. D-3A stainless steel sanitary lobe rotor pump high viscosity cooking oil pump is special designed for liquid sugar, vegetable oil, edible oil, molasses, chocolate, cooking oil, paste, milk, fruit, etc.
2. The dependable rust protection and the non-toxic sealing of the pump ensure the safety and the sanitary standard.
3. Apply to the transfer of the mediums that are easy-foaming/high viscosity/high concentration/with solid and protect them from physicochemical reaction & remain the same.
4. Low rotational speed prevent the change of existing quality, physics and chemistry properties.
5. Three motor type: CVT Stepless variable speed motor, Fixed ratio gear-box motors, Frequency conversion variable speed motor. It can configured with insulation jacket, Water cooling device, Trolley.
|Working Principle:||Double rotors|
|Main applications:||Oil, food, colloid|
|Power Specs:||220V,240V,380V,400V,415V,440V 50hz/60hz|
|Max.permissible fluid temperature:||100°C(212°F) / 200°C(392°F)-water cool type|
|Type of connection:||Quick clamp, Flange, Thread, SMS, Barb, Square port|
|Position of inlet/outlet:||Horizontal or Vertical|
|Casing/Inner parts material:||SS304, SS316L|
|Shaft seal type:||Mechanical seal|
|Maximum viscosity:||1×106 C.S.T|
|Maximum drive rating:||30kW(40HP)|
|Maximum discharge-side pressure:||1.6MPa(16bar)|
|Flow rate range:||0.3-72m3/h(1.3-316.8US.GPM)|
Configuration specification :
1. Supply voltage: 110~240V single phase (only D-3A-3 and D-3A-6), 220~480V three phase (all models)
2. Frequency: 50Hz or 60Hz
3. Caliber direction: Horizontal(left-inlet, right-outlet), Vertical(up-inlet, down-outlet)
4. Lobe number: Single vane, double vanes(butterfly), three vanes, five vanes
5. Material: SS304, SS316L
6. Motor type: CVT (continuously variable transmission),
Gear box fixed speed ratio motor,
VFD (variable frequency drive motor) + frequency controller
7. Model: D-3A-500, D-3A-600, max flow rate 100m3/h (customized)
8. Custom services: Insulation jacket, sealing water cooling device (for 100~200°C), reflow device + safety valve, SS304 trolley SS304 motor cover, explosion proof, add single stage gearbox, belt pulley structure, etc
3A stainless steel cam rotor pump range of application:
Food industry: yogurt, chocolate, syrup, cheese, wort, beer, soft drink, jelly, pudding, fruit juice drink, tomato paste fruit puree, meat oil, edible oil, syrup, cream, chocolate, etc.
Daily industry: face cream lotion, hair gel, hair dye, essential oil, toothpaste, detergent, shampoo, shoe polish, cosmetics, essence, soap, balm, etc.
Pharmaceutical industry: various types of pill paste, emulsifier, nutrient solution, Chinese patent medicine, ointment, biological product, fish powder, royal jelly, vaccine, etc.
Chemical industry: fats, solvents, resins, polymers, paints, pigments, dyes, coatings, lubricating oils, greases, petroleum agents, adhesives, spices, leather, etc.
Construction industry: various coatings, anti-corrosion and waterproof coatings, ceramic coatings, paint coatings, ceramic materials, etc.
Other industries: material industry, textile industry, paper industry, nanomaterials, biochemical industry and other industries.
