SOLAR PANEL SPECIFICATIONS

MECHANICAL DATA		ELECTRICAL DATA
Cell Type	Mono-crystalline	Operating Temperature	-40°C ~ +85°C
Cell Arrangement	120 [2 x (10 x 6) ]	Max. System Voltage	1500 V (IEC/UL) or 1000 V (IEC/UL)
Dimensions	2172 ˣ 1303 ˣ 35 mm (85.5 ˣ 51.3 ˣ 1.38 in)	Module Fire Performance	or CLASS C (IEC61730)
Weight	35.9 kg (79.1 lbs)	Max. Series Fuse Rating	35 A
Front / Back Glass	2.0 mm heat strengthened glass	Application Classification	Class A
Frame	Anodized aluminium alloy	Power Tolerance	0 ~ + 10 W

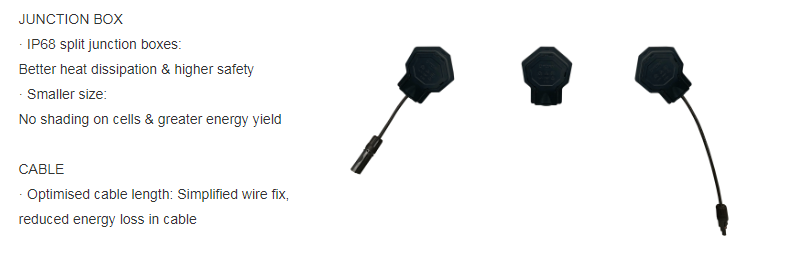

J-Box	4.0 mm² (IEC)	Power Bifaciality*	70 %
Cable	4.0 mm² (IEC), 12 AWG (UL)	TEMPERATURE CHARACTERISTICS
Cable Length (Including Connector)	460 mm (18.1 in) (+) / 340 mm (13.4 in) (-) or customized length*	Temperature Coefficient (Pmax)	-0.26 % / °
Connector	T4 series or H4 UTX or MC4-EVO2	Temperature Coefficient (Voc)	-0.26 % / °C
Per Pallet	30 pieces	Temperature Coefficient (Isc)	0.05 % / °C
Per Container	480 pieces	Nominal Module Operating Temperature	41 ± 3°C

Based on 0 reviews

0.0 overall

There are no reviews yet.

Brand Name:	CanadianSolar
Model Number:	CS6R-MS
Cell size:	182mmx182mm
Type:	PERC, Half Cell, Bifacial, Double-glass, high power
Panel Dimensions:	1722x1134x30 mm (67.8×44.6×1.18 in)

Brand Name:	CanadianSolar
Model Number:	CS3Y-MB-AG
Cell size:	166mmx166mm
Type:	PERC, Half Cell, Bifacial, Double-glass, high power
Panel Dimensions:	2260 X 1048 X 32 mm

Model Number:	LR5-72HTD
Type:	Himo6
Cell Efficiency:	Performance at STC (Power Tolerance 0 ~ +3%)
Certificate:	IEC61215(2016)
Weight:	32.6kg
Cell Arrangement:	144(6*24)
Module Dimensions:	2278113435mm

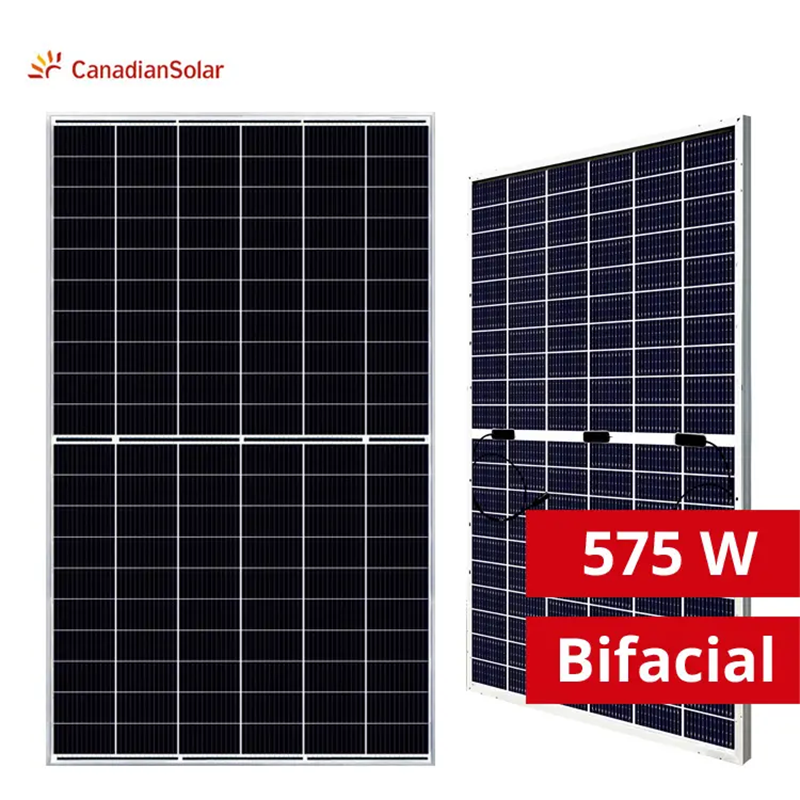

Canadian solar HIKU7 Canadian Solar 120cells High Power 575w 580w 585w 590w Portable Polycrystalline Solar Panel Roof
