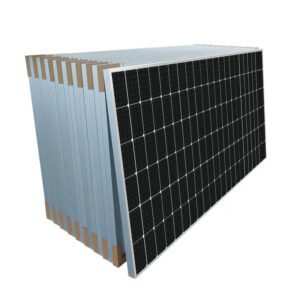

Trinasolar Panel Panneaux Solaires Vertex Bifacial 665w 660w 655w Double Glass Solar Panel Half Cut
High customer value
Lower LCOE (Levelized Cost Of Energy),reduced BOS (Balance ofSystem) cost, shorter payback time
Lowest guaranteed first year and annual degradation; Designed for compatibility with existing mainstream systemcomponents
$238.00 – $242.00
CompareMinimized micro.cracks with innovative non-destructive cutting technology
Ensured PID resistance through cell process and module material control
Resistant to harsh environments such as salt, ammonia, sand, high temperature and high humidity areas
Mechanical performance up to 5400 Pa positive load and 2400 Panegative load
|
Electrical Characteristics STC
|
|||||
|
Peak Power Watts-PMAX (Wp)*
|
645
|
650
|
655
|
660
|
665
|
|
Power Tolerance-PMAX (W)
|
0~+5
|
||||
|
Maximum Power Voltage-VMPP (V)
|
37.5
|
37.7
|
37.9
|
38.1
|
38.3
|
|
Maximum Power Current-IMPP (A)
|
17.23
|
17.27
|
17.31
|
17.35
|
17.39
|
|
Open Circuit Voltage-VOC (V)
|
45.3
|
45.5
|
45.7
|
45.9
|
46.1
|
|
Short Circuit Current-ISC (A)
|
18.31
|
18.35
|
18.4
|
18.45
|
18.5
|
|
Module E_x005fciency η m (%)
|
20.8
|
20.9
|
21.1
|
21.2
|
21.4
|
|
MECHANICAL DATA
|
|||||
|
Cell Type
|
Monocrystalline
|
||||
|
No. of cells
|
132 cells
|
||||
|
Module Dimensions
|
2384×1303×33 mm (93.86×51.30×1.30 inches)
|
||||
|
Weight
|
38.3 kg (84.4 lb)
|
||||
|
Front Glass
|
2.0 mm (0.08 inches), High Transmission, AR Coated Heat Strengthened Glass
|
||||
|
Encapsulant material
|
EVA/POE
|
||||
|
Back Glass
|
2.0 mm (0.08 inches), Heat Strengthened Glass (White Grid Glass)
|
||||
|
Frame
|
33 mm(1.30 inches) Anodized Aluminium Alloy
|
||||
|
J-Box
|
IP 68 rated
|
||||
|
Cables
|
Photovoltaic Technology Cable 4.0mm2 (0.006 inches2),
Portrait: 350/280 mm(13.78/11.02 inches) Length can be customized |
||||
|
Connector
|
MC4 EVO2 / TS4*
|
||||
|
PACKAGING CONFIGUREATION
|
|||||
|
Modules per box
|
33 pieces
|
||||
|
Modules per 40’ container
|
594 pieces
|
||||
| Specification: | 655W, 660W, 665W |
|---|
Based on 0 reviews
