DASOLAR Solar Panel

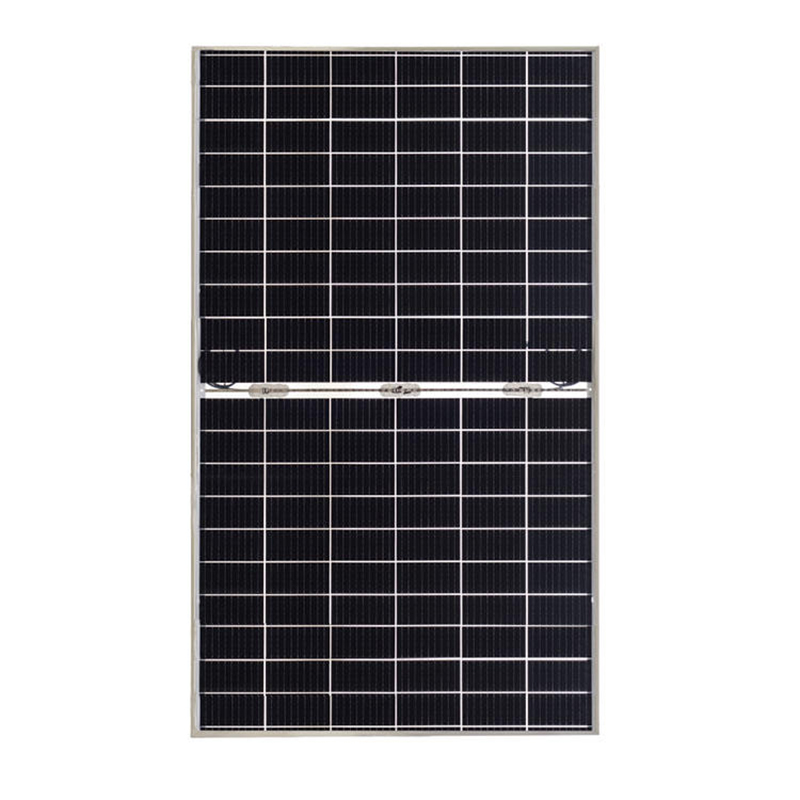

Solar Panel DAS-DH120N 330W ~ 350W Without Frame
Lead time:
| Quantity(watts) | 1 – 280000 | 280001 – 1000000 | >1000000 |
| Est. time (days) | 35 | 45 | To be negotiated |
$150.00
Compare
- Brand Name: DASOLAR
- Model Number: DAS-DH120N 330W ~ 350W without frame
- Type: Half cell mono perc
- Certificate: CE,IEC61215,IEC61730,ISO,TUV
- Product name: Sola Panel
- Model Type: Monocrytalline Solar Cells
- Weight: 21.9Kg
- Thickness: 2.0mm
- Color: Black/white
- OEM: Support
- Max system voltage: DC1500V
- Work temperature: -40℃ ~ +85℃
- Warranty: 12/15YEARS
Mechanical Parameters
| Cell size | Bifacial N Type 158.75×79.375mm |
| Module size | 1704×1008×30mm(L×W×H) |
| Glass Thickness | 2.0mm |
| Module Weight | 21.9kg |
| Output Cable | 4mm², cable length 300mm (can be customized) |
| Connector | MC4 compatible |
| J-Box | IP68, 3 bypass diodes |
| Frame | Anodized aluminium alloy |
