DASOLAR Solar Panel

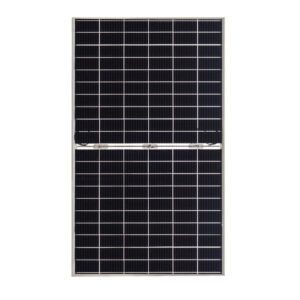

DASOLAR Solar Panel N-type 330W 350W Half Cut Cell PERC Module Both Side Black Support
Operating Parameters：
| Max. System Voltage | DC1500V |
| Power Tolerance | 0 ~ +5 W |
| Operating Temperatue | -40℃ ~ +85℃ |
| Max. Fuse Rated Current | 20A |
| Front Static Load | Snow load 5400Pa, Wind load 2400Pa |
| Application Classifcation | Class A |
| Packing Specification | 33 pcs/Pallet, 198 pcs/ 20’GP; 792 pcs/ 40’HQ; |
$120.00
CompareSolar Panel Mechanical Parameters：
| Cell size | Bifacial N Type 158.75×79.375mm |
| Module size | 1698×1002×6mm(L×W×H) |
| Glass Thickness | 2.5mm |
| Module Weight | 24.2kg |
| Output Cable | 4mm², cable length 300mm (can be customized) |
| Connector | MC4 compatible |
| J-Box | IP68, 3 bypass diodes |
| Frame | Frameless |
Temperature Coefficients：
| Short Circuit Current(Isc) | +0.048%/℃ |
| Open Circuit Voltage(Voc) | -0.30%/℃ |
| Nominal Max. Power(Pmax) | -0.35%/℃ |
| NMOT | 42±2℃ |
Solar Panel Operating Parameters：
| Max. System Voltage | DC1500V |
| Power Tolerance | 0 ~ +5 W |
| Operating Temperatue | -40℃ ~ +85℃ |
| Max. Fuse Rated Current | 20A |
| Front Static Load | Snow load 5400Pa, Wind load 2400Pa |
| Application Classifcation | Class A |
| Packing Specification | 33 pcs/Pallet, 198 pcs/ 20’GP; 792 pcs/ 40’HQ; |
Related products
-
JinKo Solar Panel

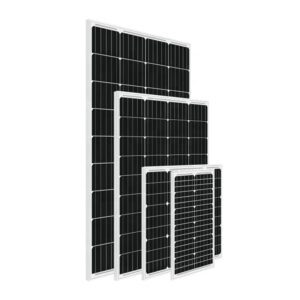

Monocrystalline Solar Panel 72 Cells 300W~360W Solar Panels MOQ 10000Watts
Cell Type： 156.75mm x 156.75mm
Number of Cells：72 cells in series
Weight：22.5 kg (49.60 lbs)
Dimension：1956×992×40mm (77.01×39.06×1.58 inch)
Max Load ：5400 Pascals ( 112 lb/ft 2 )
Junction Box： ≥ IP67 rated
Connector：MC4 Compatible
Output cable ：PV 1-F 4mm 2
SKU: n/a -
TW Solar Panel
TW Solar Cell Panel TWMPF-60HS590-610W Roof Mount Solar Panel Mount P-type Half-cell Monofacial Module Solar Structural Panel
TW Solar PanelTW Solar Cell Panel TWMPF-60HS590-610W Roof Mount Solar Panel Mount P-type Half-cell Monofacial Module Solar Structural Panel
MOQ: 10pcs
- The grid lines are densely distributed and the force is uniform. The output power of the multi-busbar design is more than 5W higher than that of the conventional one.
- Non-destructive scribing technology, no mechanical damage, smooth cutting surface without burrs. The risk of battery cracks is low, and micro cracks are reduced by more than 50%
- Cut in half, downflow detracts. The current density is reduced by 1/2. The internal power loss is reduced to 1/4 of conventional components. The rated output power is increased by 5-10W.
- New welding wire. Using round wire ribbon, the shading area is reduced. The incident light is reflected multiple times, increasing the power by 1-2W.
- Shade is not shade. The upper and lower symmetrical parallel component design can effectively reduce the current mismatch caused by shading.
- Adopt advanced high-density packaging technology to ensure the perfect balance between efficiency and reliability. Module efficiency increased by more than 0.15%.
SKU: n/a -
-
JA Solar Panel
JA MBB Half-cell Module JAM54S30 390-415/MR Series Solar Panel High Efficiency JA Solar PERC Mono Solar Panel
JA Solar PanelJA MBB Half-cell Module JAM54S30 390-415/MR Series Solar Panel High Efficiency JA Solar PERC Mono Solar Panel
Introduction
Assembled with 11BB PERC cells, the half-cell configuration of the modules offers the advantages of higher power output, better temperature-dependent performance, reduced shading effect on the energy generation, lower risk of hot spot, as well as enhanced tolerance for mechanical loading.
- Higher output power.
- Less shading and lower resistive loss.
- Lower LCOE.
- Better mechanical loading tolerance.
SKU: n/a
