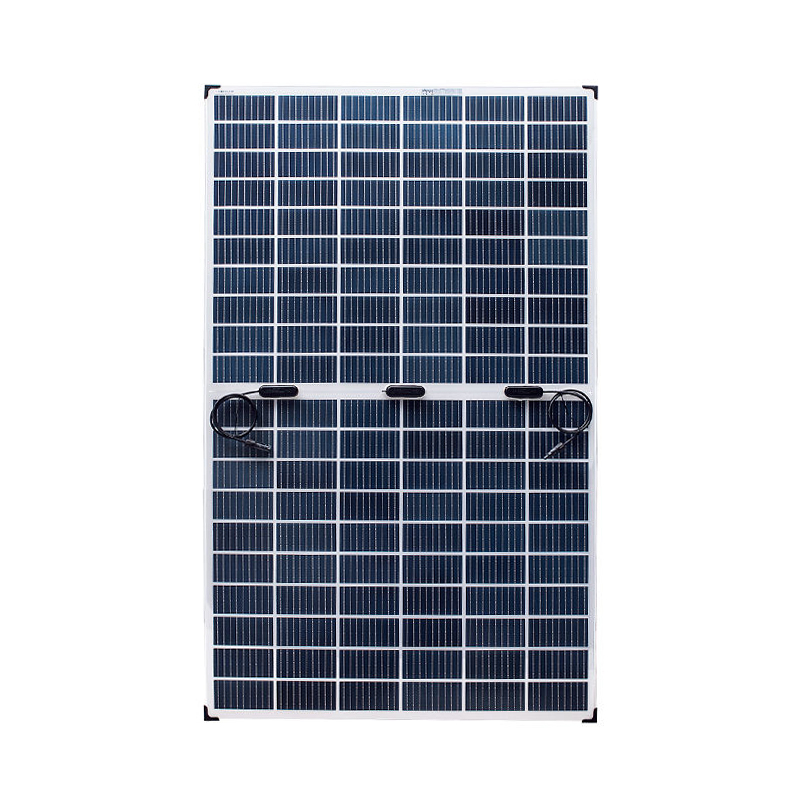

DASOLAR Solar Panel
Monocrystalline Silicon Solar Panel 330W /350W Solar Energy Products
Temperature Coefficients
| Short Circuit Current(Isc) | +0.048%/℃ |
| Open Circuit Voltage(Voc) | -0.30%/℃ |
| Nominal Max. Power(Pmax) | -0.35%/℃ |
| NMOT | 42±2℃ |
$150.00
CompareSolar Panel Supply Ability
Supply Ability: 125000000 Watt/Watts per Month
Supply Ability: 125000000 Watt/Watts per Month
| Material | Monocrystalline Silicon |
|---|---|
| Model Type | Monocrytalline Solar Cells |
| Work temperature | -40℃ ~ +85℃ |
| Max system voltage | DC1500V |
| OEM | Support |
| Color | Black/white |
| Thickness | 2.0mm |
| Weight | 21.9Kg |
| Product name | Sola Panel |
| Max power | 330W /350W |
| Certificate | CE,IEC61215,IEC61730,ISO,TUV |
| Model Number | DAS-DH120N 330W ~ 350W without frame |
| Brand Name | DASOLAR |
| Size | 1704*1008*30mm |
| Busbar | MBB |
| Warranty | 12/15YEARS |
Operating Parameters
| Max. System Voltage | DC1500V |
| Power Tolerance | 0 ~ +5 W |
| Operating Temperatue | -40℃ ~ +85℃ |
| Max. Fuse Rated Current | 20A |
| Front Static Load | Snow load 5400Pa, Wind load 2400Pa |
| Application Classifcation | Class A |
| Packing Specification | 35 pcs/Pallet, 330 pcs/ 20’GP; 910 pcs/ 40’HQ; |
Temperature Coefficients
| Short Circuit Current(Isc) | +0.048%/℃ |
| Open Circuit Voltage(Voc) | -0.30%/℃ |
| Nominal Max. Power(Pmax) | -0.35%/℃ |
| NMOT | 42±2℃ |
