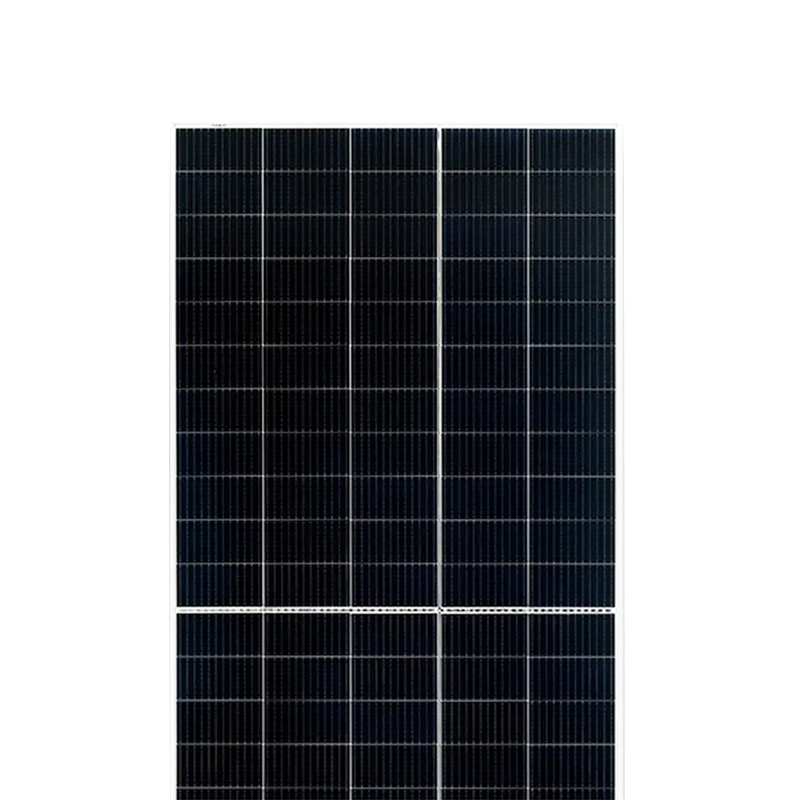

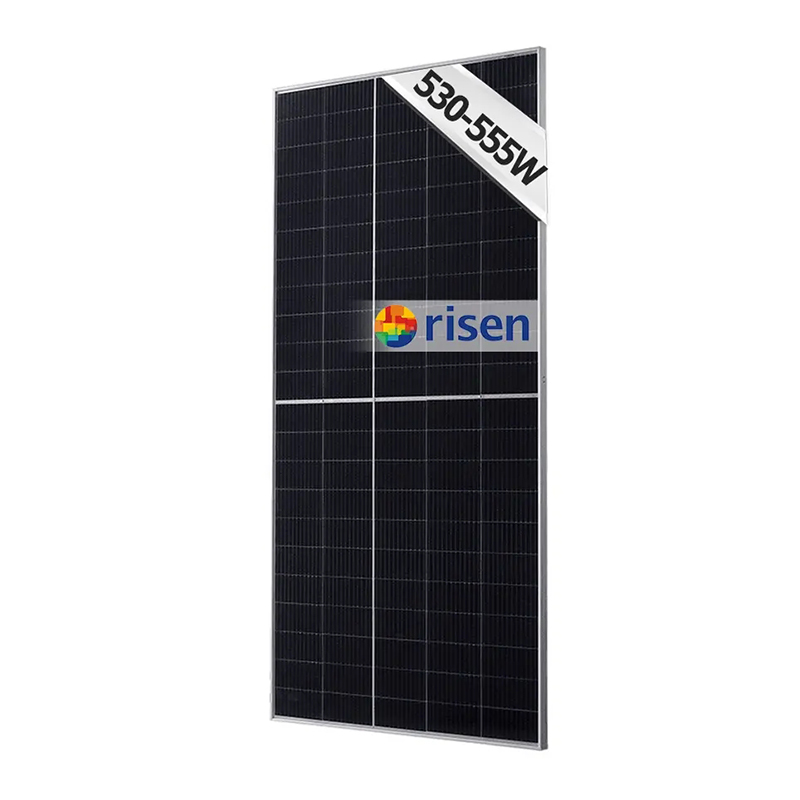

Risen Brand 530W~550W Panels Solar Panel Monocrystalline For Home Use Energy System MOQ 10000Watt
STC: Irradiance 1000W/m2, Cell temperature 25 ℃, Air Mass AM 1.5 according to EN 60904-3
Cell configuration :110 cells (5×11+5×11)
Module dimensions:2384×1096×30mm
Weight:30.5kg
Frame:High strength alloy steel
J-Box:Potted, IP68, 1500VDC, 3 Schottky bypass diodes
Cables:4.0mm² (12AWG), Positive(+)350mm, Negative(-)230mm (Connector Included )
$3,500.00
Compare|

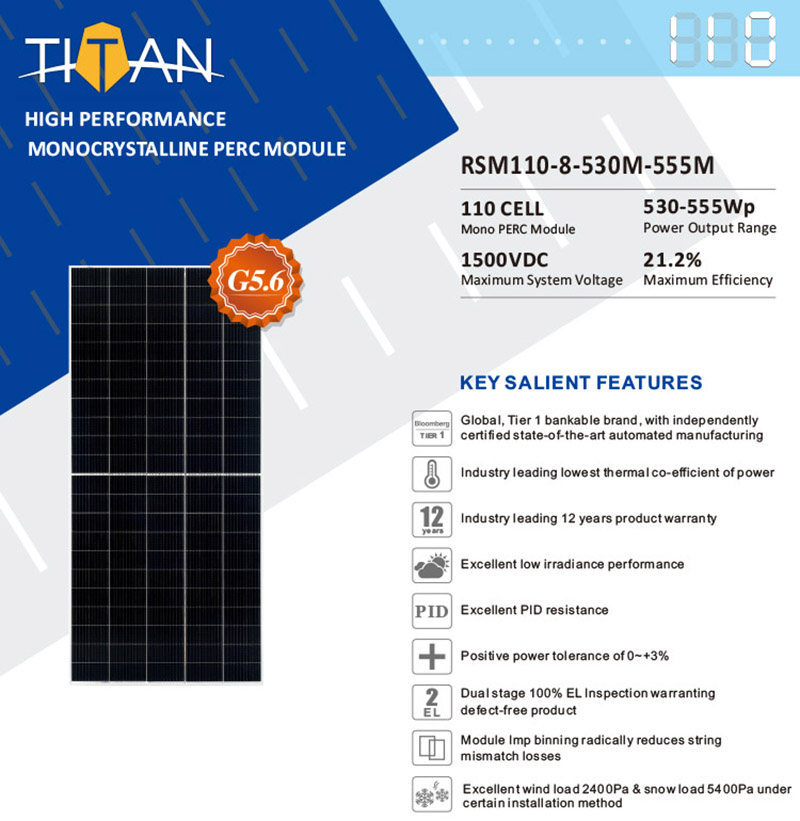

ELECTRICAL DATA(STC)
|
||||
|
Model Number
|
RSM110-8-530M
|
RSM110-8-535M
|
RSM110-8-540M
|
RSM110-8-550M
|
|
Rated Power in Watts-Pmax(Wp)
|
530
|
535
|
540
|
550
|
|
Open Circiuit Voltage-Voc(V)
|
37.38
|
37.58
|
38.02
|
38.24
|
|
Short Circuit Current-Isc(A)
|
18.08
|
18.13
|
18.18
|
18.28
|
|
Maximum Power Voltage-Vmpp(V)
|
31.06
|
31.26
|
31.46
|
31.86
|
|
Maximum Power Current-Impp(A)
|
17.07
|
17.12
|
17.17
|
17.27
|
|
Module Efficiency(%)
|
20.3
|
20.5
|
20.9
|
21.0
|
|
STC: Irradiance 1000W/m2, Cell temperature 25 ℃, Air Mass AM 1.5 according to EN 60904-3
|
||||
|
Cell configuration
|
110 cells (5×11+5×11)
|
|||
|
Module dimensions
|
2384×1096×30mm
|
|||
|
Weight
|
30.5kg
|
|||
|
Frame
|
High strength alloy steel
|
|||
|
J-Box
|
Potted, IP68, 1500VDC, 3 Schottky bypass diodes
|
|||
|
Cables
|
4.0mm² (12AWG), Positive(+)350mm, Negative(-)230mm (Connector Included )
|
|||
|
Packaging Data
|
40ft(HQ)
|
20ft
|
||
|
Number of modules per container
|
700
|
140
|
||
|
Number of modules per pallet
|
35
|
35
|
||
|
Number of pallets per container
|
20
|
4
|
||
|
Packaging box dimensions (LxWxH) in mm
|
2414×1105×1235
|
2414×1105×1235
|
||
|
Box gross weight[kg]
|
1113
|
1113
|
||
