The gear reducer is a relatively precise machine, the purpose of using it is to reduce the speed and increase the torque.

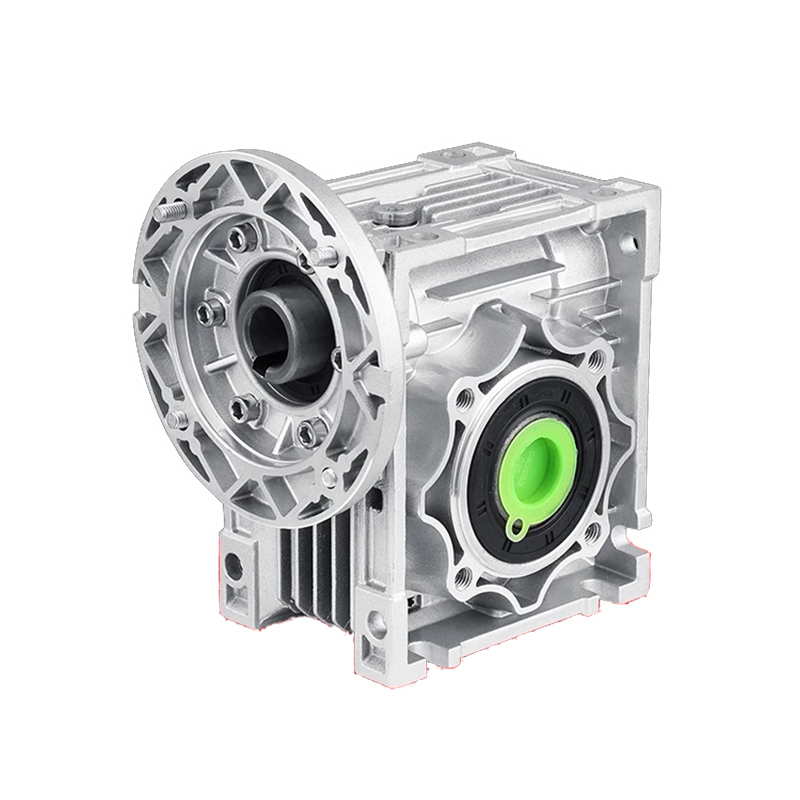

Model:NMRV040
Speed Ratio:30:1
Input Bore Size:14mm, 0.55″ ;
Output Bore Size:18mm, 0.71″
Application:Matched with Stepper Motor
Smooth transmission, low noise; The multi-faceted installation;High-quality aluminum alloy enclosure, thermal performance, large carrying capacity.
$61.00
The gear reducer is a relatively precise machine, the purpose of using it is to reduce the speed and increase the torque.
The planetary reducer is a versatile industrial product that can reduce the speed of the motor while increasing the output torque. Planetary reducers can be used as supporting components in industries such as lifting, excavation, transportation, and construction.
The ring gear (A) is tightly connected to the gearbox housing. In the center of the ring gear there is an externally powered sun gear (B). Among them, there is a group of three gears, which are equally divided into the planetary gear set (C) on the tray. This set of planetary gears floats while being supported by the output shaft, the ring gear and the sun gear; when the planetary reducer drives the sun gear through the input side power When rotating, it can drive the planetary gear to rotate and revolve along the center according to the track of the inner ring gear, and the rotation of the star wheel drives the output shaft connected to the tray to output power.
The main transmission structure of the planetary reducer is: planetary gear, sun gear and ring gear.
Model:NMRV030
Speed Ratio:30:1
Input Bore Size:11mm, 0.43″ ;
Output Bore Size:14mm, 0.55″
Application:Matched with Stepper Motor
Smooth transmission, low noise; The multi-faceted installation;High-quality aluminum alloy enclosure, thermal performance, large carrying capacity.
Worm Gear Speed Reducer Main features:
– Compact structure and small volume saves mounting space.
– High load capacity and overload functions give stable transmission with reduced vibration and noise.
– No gap structure of gearbox makes this reducer maintenance free and prevents lubricant from leaking.
– Various linking structures for power input and torque output allows for different mounting methods.
– Low noise and stably running, can adapt long term work condition in terrible environments.
– Motor mounting, shaft mounting, and flange mounting.
– Raw materials are imported from Taiwan.
– Easily to install and we have professional engineer to explain for you.
