1PCS 57 CNC Stepper Motor,180 Ncm,76mm,1.8 deg,3A,with 4 Lead Wires for 3D Printer/Robot/CNC Milling Machine (23HS8430)
- 👍{PRODUCT INCLUDES} – 1 * 23HS8430 57 Stepper Motor 76mm/2.99″,high torque 1.8 Nm (270 oz.in) holding torque.
- 👍{BASIC PARAMETERS} – Size: 57 x 57 x 76 mm(2.24″ x 2.24″ x 2.99″); 1.8 degree; Rated current:3A; Connection Cable: 4 pieces; phase:2; type: hybrid.
- 👍{ADVANTAGES} – 1.)High torque, power 15%-20% higher than conventional motors,to achieve the best uniform rotation.2.)The coil is made of 100% pure copper enamel wire, which is made of international cutting-edge technology. 3.) The surface of the rotor is coated with high-quality epoxy resin adhesive to isolate the adsorption burr on the surface of the rotor, the magnetic field is more stable.
- 👍{LOW NOISE} – The stepper motor is made of sturdy and durable metal. The perfect combination of rubber and rotor makes the inner structure more stable. This reduces vibrations and noise when the engine is running.
- 👍{APPLICATION} – Widely Used in Engraving Machine, 3D Printers, Medical Equipment,Textile, Printing, Packaging and Other Industrial Automation equipment.
$40.00
CompareCNC Stepper Motor BASIC PARAMETERS
PACKAGE INCLUDES – 1 * 23HS8430 57 Stepper Motor 76mm/2.99″,high torque 1.8 Nm (270 oz.in) holding torque.
Specification:
Size: 57 x 57 x 76 mm(2.24″ x 2.24″ x 2.99″);
1.8 degree;
Rated current:3A;
Connection Cable: 4 pieces;
phase:2;
type: hybrid.
The stepper motor is made of sturdy and durable metal. The perfect combination of rubber and rotor makes the inner structure more stable. This reduces vibrations and noise when the engine is running.
If you are not satisfied at goods after you have received the package, or there is other problem such as defective with goods, please tell us the reason for detail and provide the photos.
Related products
-
Gear reducer, Power Transmission
K series reducer, small gearbox gear reducer, hollow shaft reduction gearbox, helical bevel gearbox,K Series Right Angle Bevel Helical Gear Units
Gear reducer, Power TransmissionK series reducer, small gearbox gear reducer, hollow shaft reduction gearbox, helical bevel gearbox,K Series Right Angle Bevel Helical Gear Units
K series spiral bevel gear reducer
1. The K series reducer is manufactured in accordance with international technical requirements and has a high technological content.
2. This series of gear reducers saves space, is reliable and durable, has high overload capacity, and the power can reach more than 200KW.
3. Low energy consumption, superior performance, and the efficiency of the reducer is as high as 95%.
4. Select high-quality section steel material, rigid cast iron box body, and the surface of the gear is subjected to high-frequency heat treatment.
5. After precision machining, the reducer that constitutes the helical gear, bevel gear, and bevel gear transmission assembly is equipped with various types of motors to form a mechatronics, which fully guarantees the quality characteristics of the geared motor products.SKU: n/a -
Gear reducer, Power Transmission

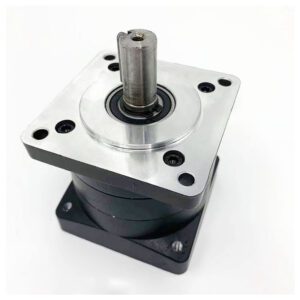

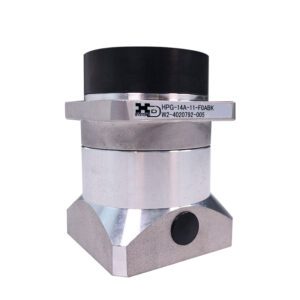

Precision Reducer Planetary Helical Gear Stepping TM Series 042/060/090/115/142/180 Servo Planetary Reducer Gearbox
