MODEL NO.
|
NMRV 25 30 40 50 63 75 90 110 130 150
|
Installation
|
Torque Arm Type
|
Step
|
Stepless
|
Type
|
Worm Gear box
|
Output Speed
|
14.4-192rpm
|
Warranty
|
1 years
|
Transport package
|
Standard Sea Worthy Package
|
Input Speed
|
1440rpm
|
Lubricant
|
Synthetic & Mineral
|
Color
|
Blue, Silver
|
Seal
|
NAK seal from TAIWAN
|
Worm
|
20cr
|
Power supply: 380V/220V
Input speed 1400
Speed ratio: 7.5-100
The above data are for reference only.
Gear Reducer Features:

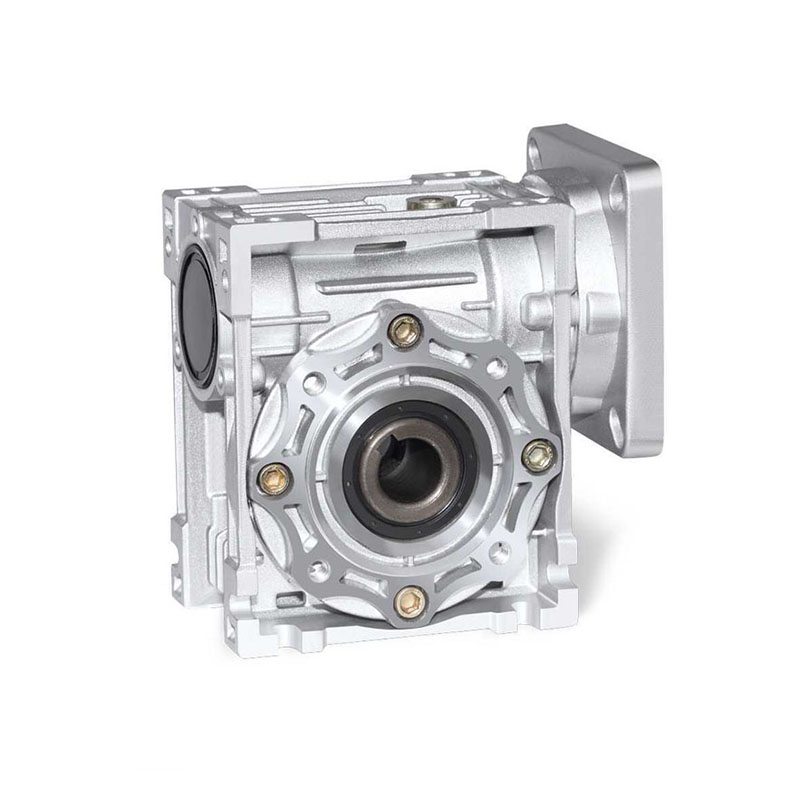

1) Aluminum alloy die-casted gearbox
2) Compact structure saves mounting space
3) Highly accurate
4) Runs forward and backward
5) High overload capacity
6) Stable transmission with reduced vibration and noise
Technical Data:
1. Input power: 0.06kW-15kW
2. Output torque: 7.8-1195N.m
3. Speed ratio: (5-100) 5, 7.5, 10, 15, 20, 25, 30, 40, 50, 60, 80, 100
4. Adapt for IEC, NEMA, SERVO
Materials:
1. From RV25 up to RV105: Aluminium alloy housing.
2. From RV110 to RV150: Cast iron housing.
3. Seal: NAK Seal from TAIWAN
4. Bearing :homemade Bearing
Quality control:
1.Quality guarantee: 1 year
2.Certificate of quality: ISO 9001:2008
3.Every product must be tested before packing
