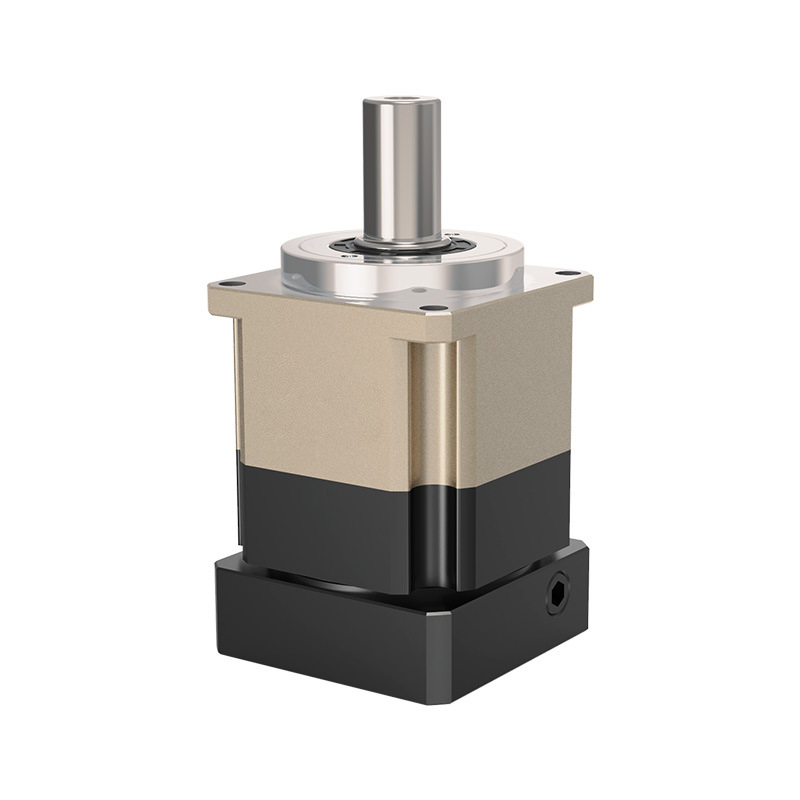

Precision Reducer Planetary Helical Gear Stepping TM Series 042/060/090/115/142/180 Servo Planetary Reducer Gearbox
The maximum radial force and axial force that the output shaft of the reducer can bear. The end depends on the design of the internal support bearing. The reducer adopts a large-size bearing and a large-span design. It can withstand greater radial and axial loads.
NOTE: Prices may vary by product model and material.
$472.00
CompareThe maximum radial force and axial force that the output shaft of the reducer can bear. The end depends on the design of the internal support bearing. The reducer adopts a large-size bearing and a large-span design. It can withstand greater radial and axial loads.
| Series | Type | Adapted motor | Remark |

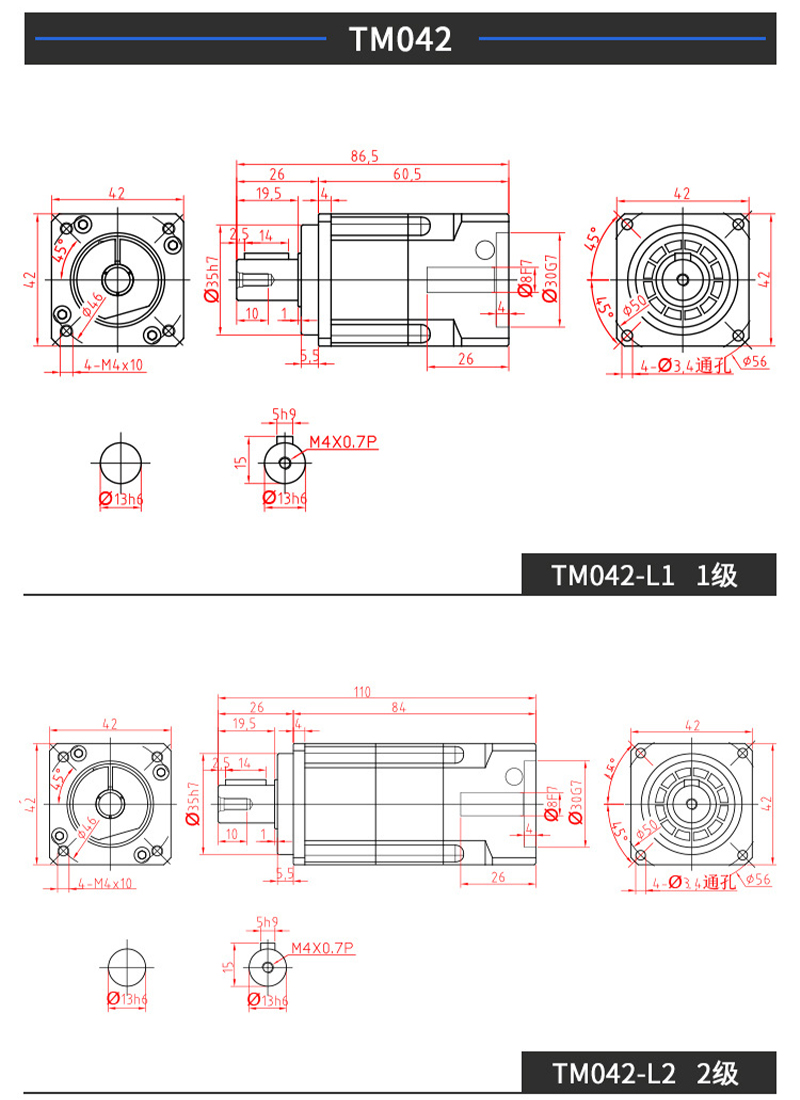

| TM Series | TM042-L1 single stage – speed ratio 3-10 | 50/100W Servo/42 Stepper | |
| TM042-L2 double stage – speed ratio 12-100 | 50/100W Servo/42 Stepper | ||
| TM060-L1 single stage – speed ratio 3-10 | 200/400W Servo/57 Stepper | ||
| TM060-L2 double stage – speed ratio 12-100 | 200/400W Servo/57 Stepper | ||

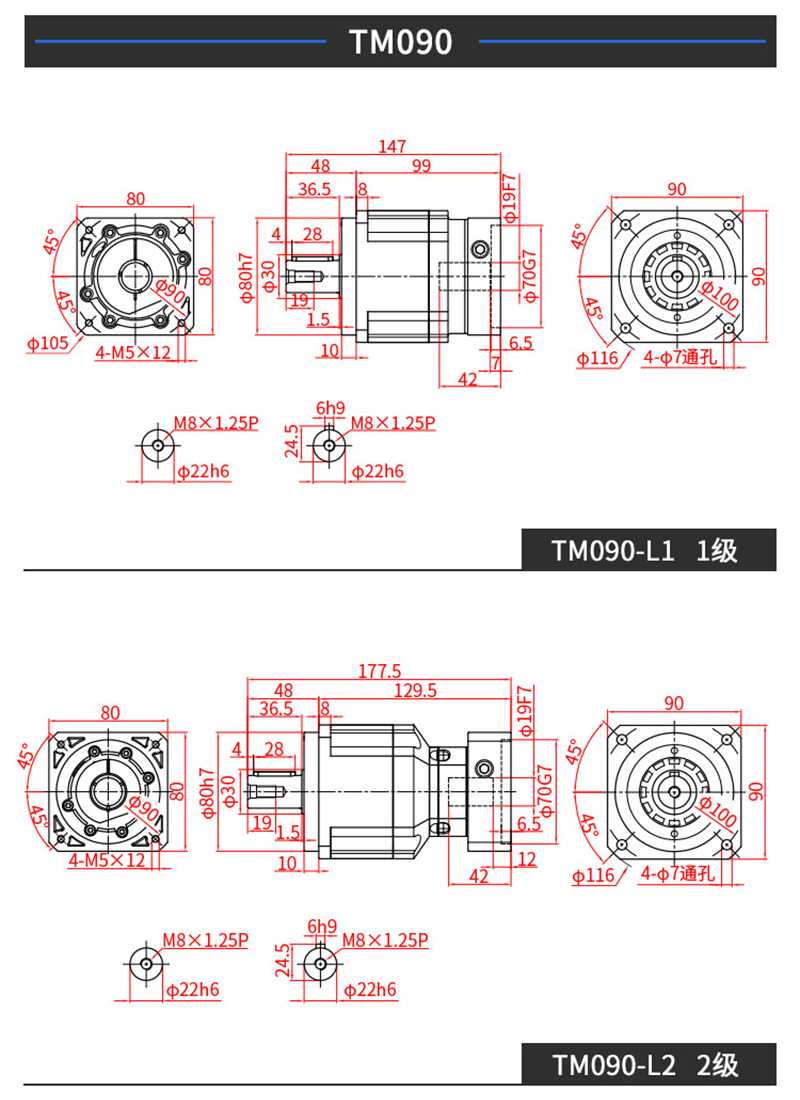

| TM090-L1 single stage – speed ratio 3-10 | 750-1500W Servo/86 Stepper | Servo standard is 80 frame and 130 frame | |
| TM090-L2 double stage – speed ratio 12-100 | 750W Servo/86 Stepper | ||

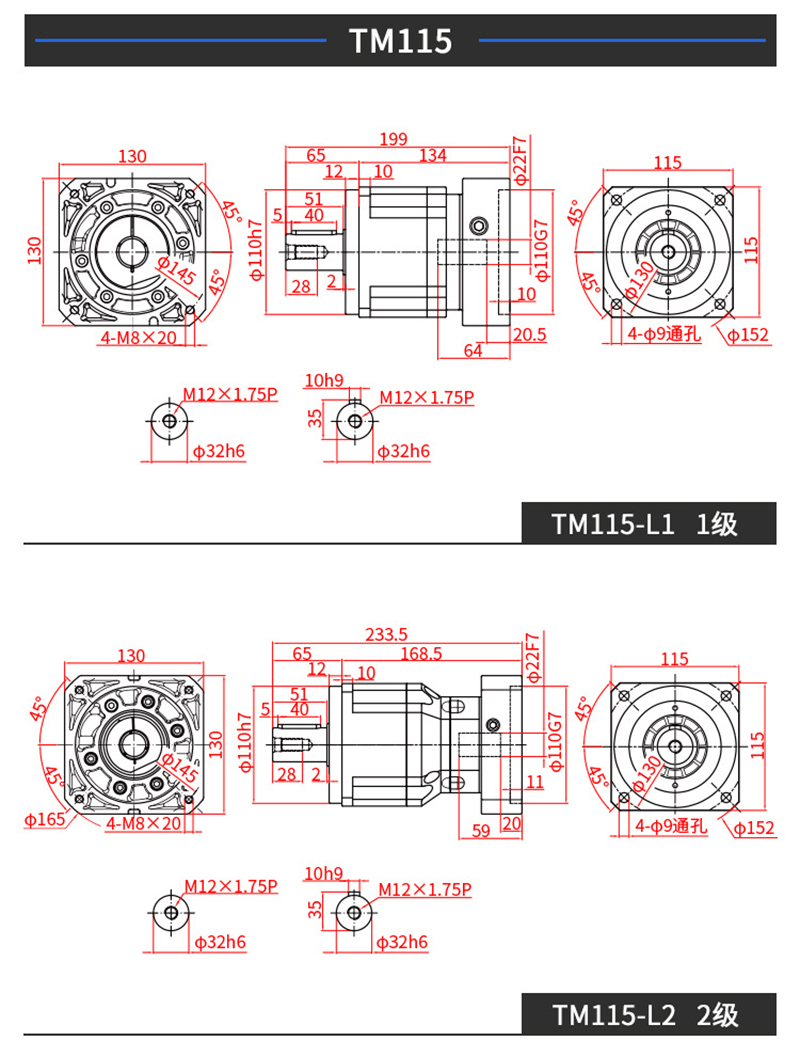

| TM115-L1 single stage – speed ratio 3-10 | 1-1.5KW/110 Stepper | Servo standard is 130 frame | |
| TM115-L2 double stage – speed ratio 12-100 | 1-1.5KW/110 Stepper | Servo standard is 130 frame | |
| TM142-L1 single stage – speed ratio 3-10 | 2-4Kw | Servo standard is 180 frame | |
| TM142-L2 double stage – speed ratio 12-100 | 1.5KW-3KW | Servo standard is 180 frame/or 130 frame | |
| TM180-L1 single stage – speed ratio 3-10 | 2KW-7.5KW | Servo standard is 180 frame/or 220 frame | |
| TM180-L2 double stage – speed ratio 12-100 | 2KW-5.5KW | Servo standard is 180 frame |
