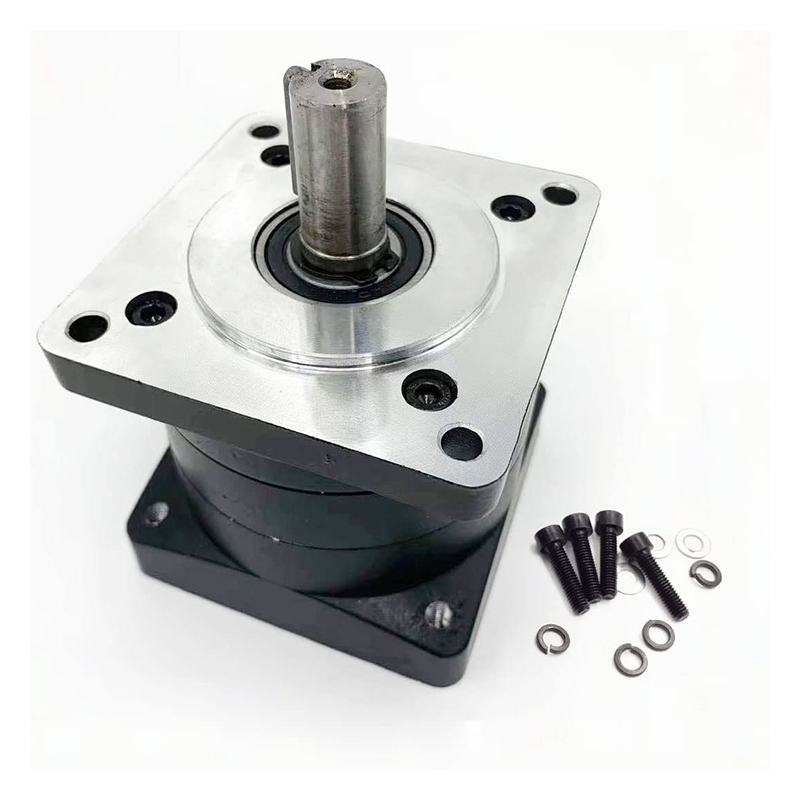

Planetary Gearbox 1/2″ Bore Input Shaft for 86 Stepper Motor 3000RPM Gear Head Gear Box Reducer for CNC Benchtop Lathe Machine (10:1)
This planetary gerabox has 1/2″ Input hole that can match the 12.7mm shaft motor (without keyed) . The output shaft diameter is 16mm with keyway 5*5*25mm
The gearhead has Input & ouput flange,suitable for 86 stepper motor and other motors which can completely match the installation holes.
4pcs screws provide for instalaltion , small size gearbox , very convenient for the machine which has limited space for a gearbox.
Stage I Ratio : 3/4/5/6
Stage II Ratio : 10/16/20/24/36
$102.00
This planetary gearbox is mainly used to reduce speed and increase holding torque , widely applied in CNC machine, such as engraving machine, mill, lathe, work bench, grinding machine etc.

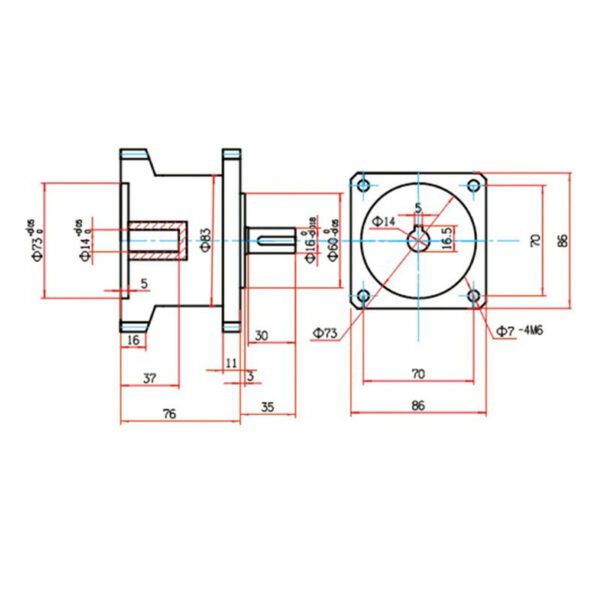

Standard FlangeOutput Shaft Dia. 16mm (0.63″) Shaft Keyway 5*5*25mm |
Two StageStage I , body Lenth L=80mm (3.15″) Stage II , body length L=94mm (3.7″) |
Input 1/2 inch ShaftInput shaft hole 14mm without keyway to match most of the stepper motor. |
Based on 0 reviews
Be the first to review “Planetary Gearbox 1/2″ Bore Input Shaft for 86 Stepper Motor 3000RPM Gear Head Gear Box Reducer for CNC Benchtop Lathe Machine (10:1)”
Related products
-
Gear reducer, Power Transmission
NMRV040 Worm Gear Reducer Speed Ratio 30:1 RV40 Output Hole 18mm
Model:NMRV040
Speed Ratio:30:1
Input Bore Size:14mm, 0.55″ ;
Output Bore Size:18mm, 0.71″
Application:Matched with Stepper Motor
Smooth transmission, low noise; The multi-faceted installation;High-quality aluminum alloy enclosure, thermal performance, large carrying capacity.SKU: n/a -
Power Transmission, Gear reducer

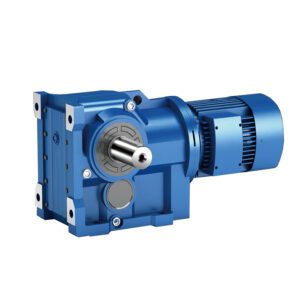

K series reducer, small gearbox gear reducer, hollow shaft reduction gearbox, helical bevel gearbox,K Series Right Angle Bevel Helical Gear Units
