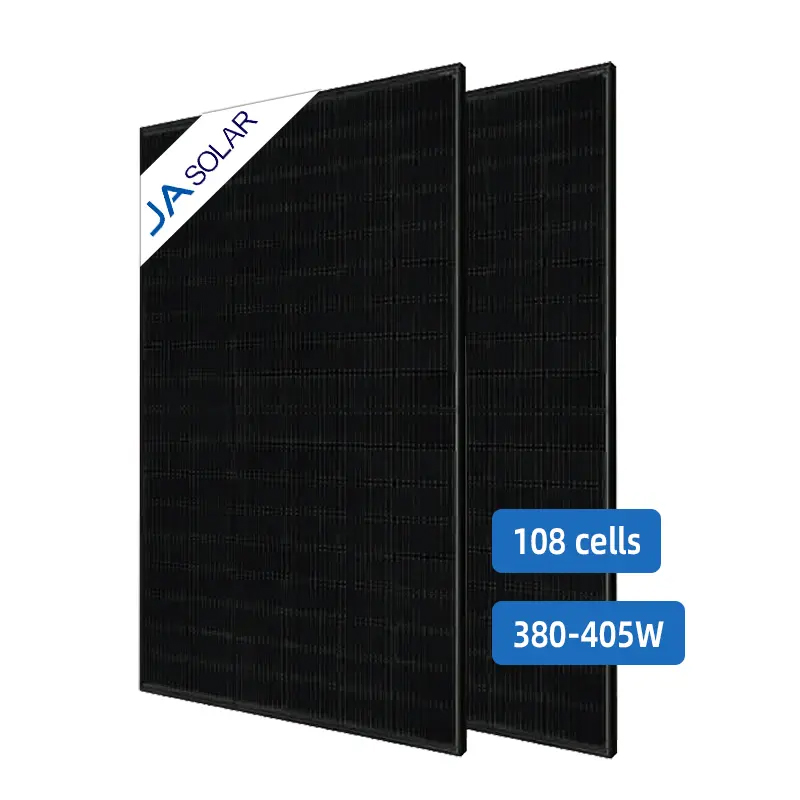

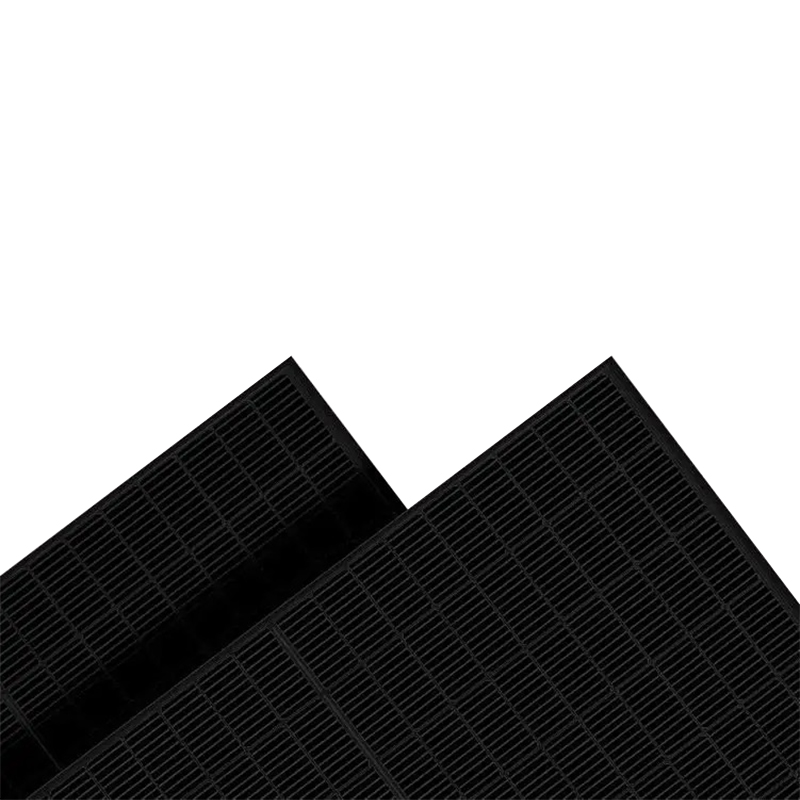

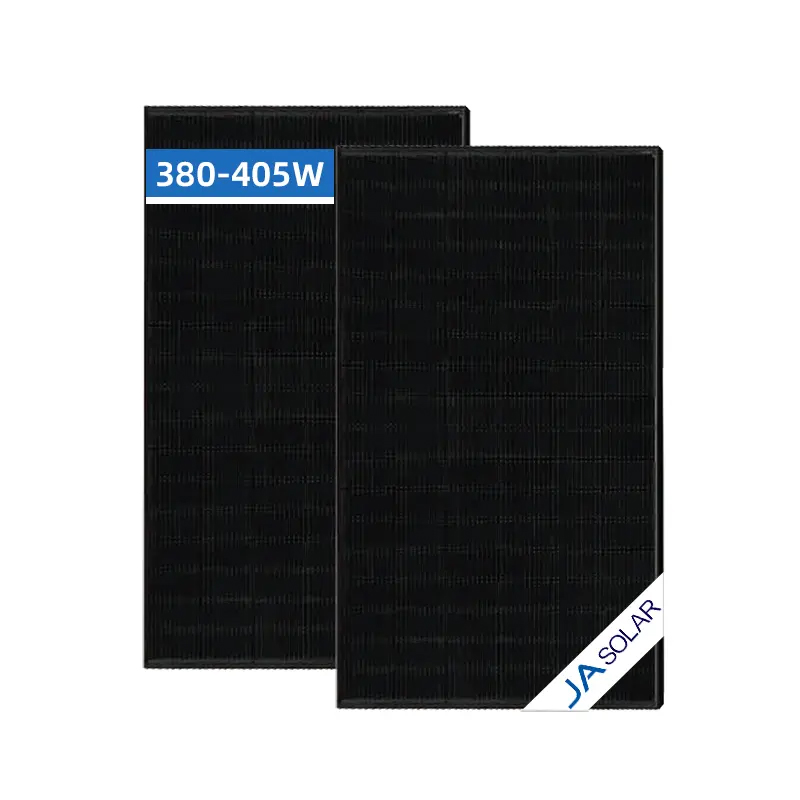

JA Half-cell Black Solar Panel JAM54S31 380W-405W/MR Series MBB PERC Half-cell Black Module JA Mono Solar Panels
Introduction
Assembled with 11BB PERC cells,the half-cell configuration of the modules offers the advantages of higher power output, better temperature-dependent performance, reduced shading effect on the energy generation, lower risk of hot spot, as well as enhanced tolerance for mechanical loading.
- 0.55% Annual Degradation Over 25 years
- Lower LCOE.
- Higher output power.
- Better mechanical loading tolerance.
- Less shading and lower resistive loss.
$170.00 – $180.00
CompareModel of JA Half-cell Black Solar Panel: 380W 385W 390W 395W 400W 405W
Features of JA Half-cell Black Solar Panel
- Universal solution for residential and C&I rooftops
Compatible with mainstream optimizers,Inverters and mounting systems.
Flexible-installing & Easy-handling. - Small in size, big on power
It is perfectly designed to fulfill power, efficiency, size, weight, appearance,mechanical load, reliability requirements of rooftop application! Best balance of power and size & weight. - Superior Warranty
12-year product warranty
25-year linear power output warranty
| Cell | Mono |
| Weight | 19.5kg |

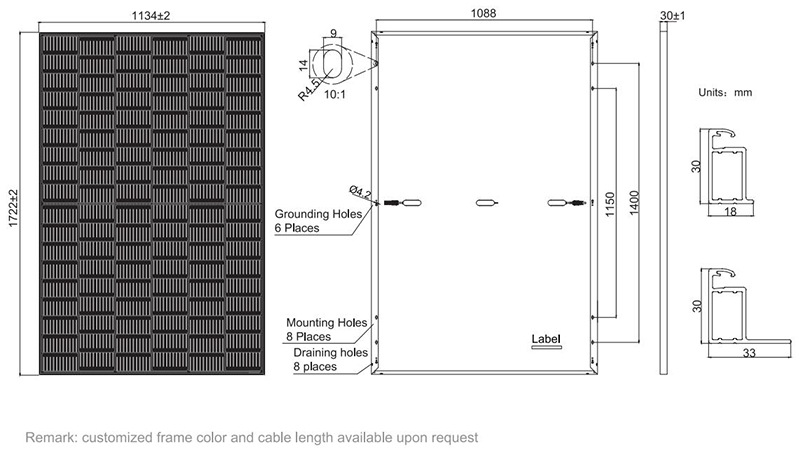

| Dimensions | 1722±2mm×1134±2mm×30±1mm |
| Cable Cross Section Size | 4mm²(IEC),12 AWG(UL) |
| No.of cells | 108(6×18) |
| Junction Box | IP68, 3 diodes |
| Connector | QC4.10-35 / MC4-EVO2A |
| Cable Length (Including Connector) | Portrait: 200mm(+)/300mm(-);800mm(+)/800mm(-)(Leapfrog) ; Landscape: 1100mm(+)/1100mm(-) |
| Front Glass/Back Glass | 2.8mm |
| Packaging Configuration | 36pcs/Pallet, 936pcs/40HQ Container |

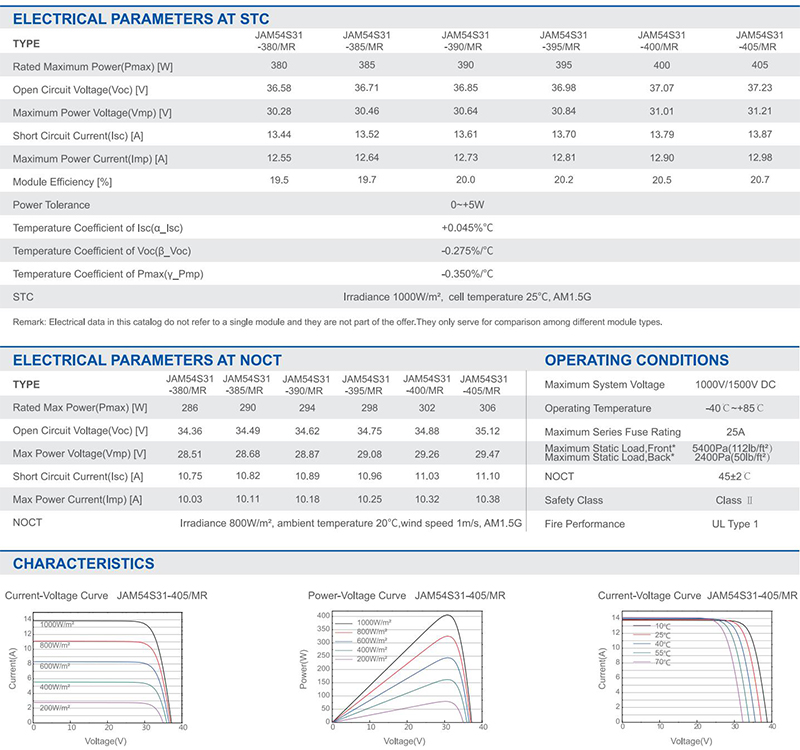

| Max. Power | 380W, 385W, 390W, 395W, 400W, 405W |
|---|
Related products
-
JA Solar Panel
JA Solar JA Solar Panel 555W-580W JAM72D30 Mono Half Cut Cell Solar PV Panels Monocrystalline Photovoltaic Panel
JA Solar PanelJA Solar JA Solar Panel 555W-580W JAM72D30 Mono Half Cut Cell Solar PV Panels Monocrystalline Photovoltaic Panel
- Place of Origin: China
- Brand Name: JA
- Model Number: JAM72D30
- Certificate: CE TUV INMETRO ETL
- Warranty: 25 years
- Application: Solar Power System
- Junction Box: IP68 Rated
SKU: n/a -
JA Solar Panel

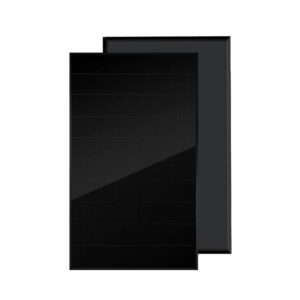

JA Mono Half-cell Module JAM54S31 395W-420W/GR Serious 11BB PERC Cells and Gapless Ribbon Connection Solar Panels Manufacturer
