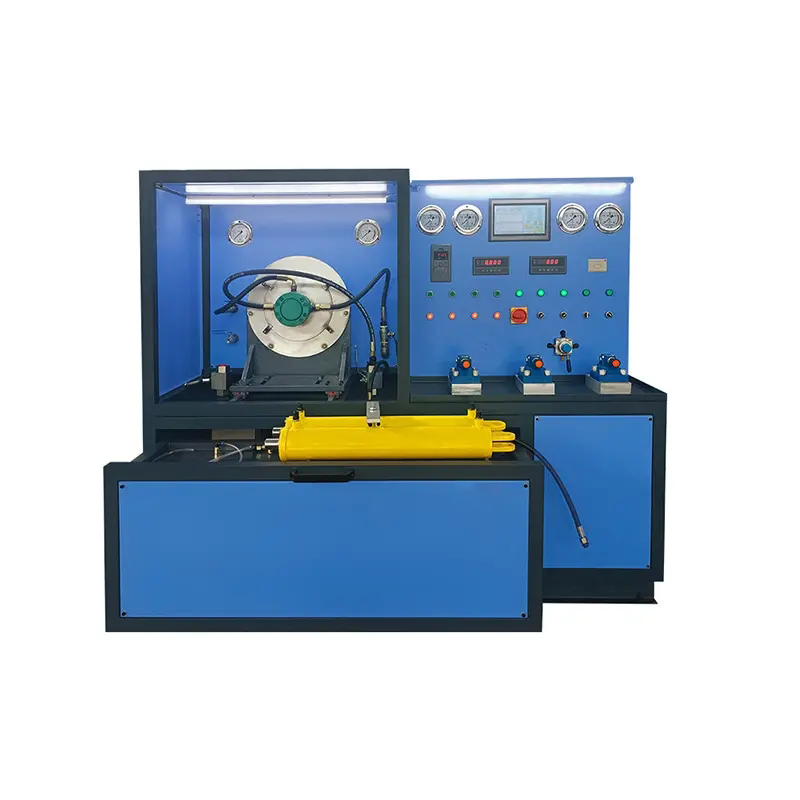

Hydraulic Test Stand 55KW Hydraulic Pump Test Stand Hydraulic Motor Hydraulic Valve Hydraulic Oil Cylinder Test Bench
This test stand uses an electric motor as the driver system of the entire test table. The test stand is divided into three parts: the motor drive table, the main oil box valve console, the valve and the tank detection table.
The installation structure has The advantages of large volume, compact structure, and convenient installation.
NOTE: Prices may vary by product model and material.
$16,125.00
CompareApplication of 55KW Hydraulic Test Stand
1. It is a comprehensive test stand for detecting hydraulic pumps/motors/valves // oil cylinders. It is a special equipment for hydraulic pumps, hydraulic motors, valves, and cylinders.
2. The hydraulic system of this test stand adopts a closed fuel tank structure to allow work in a dusty environment.
| Weight | 3-4t (theoretical weight) |
| Dimensions | Test Power Channel 2000X2000X1800mm |
| Driver power | 55KW-level 4 |
| Auxiliary motor | 5.5kW |
| Highest oil supply pressure | 20MPa |
| System maximum pressure | 30MPa |
| System limit pressure | 30MPa |
| Maximum displacement | 300-400L/min |
| Driver method | Motor driver |
| Speed | Level 4 motor 0–2000r/min (frequency conversion) |
| Oil supply method | Forced oil supply and self-absorbing oil supply |
| Display method | Digital table and PLC touch screen display |
| The volume of the fuel tank | 1000L actual refueling 800L |
