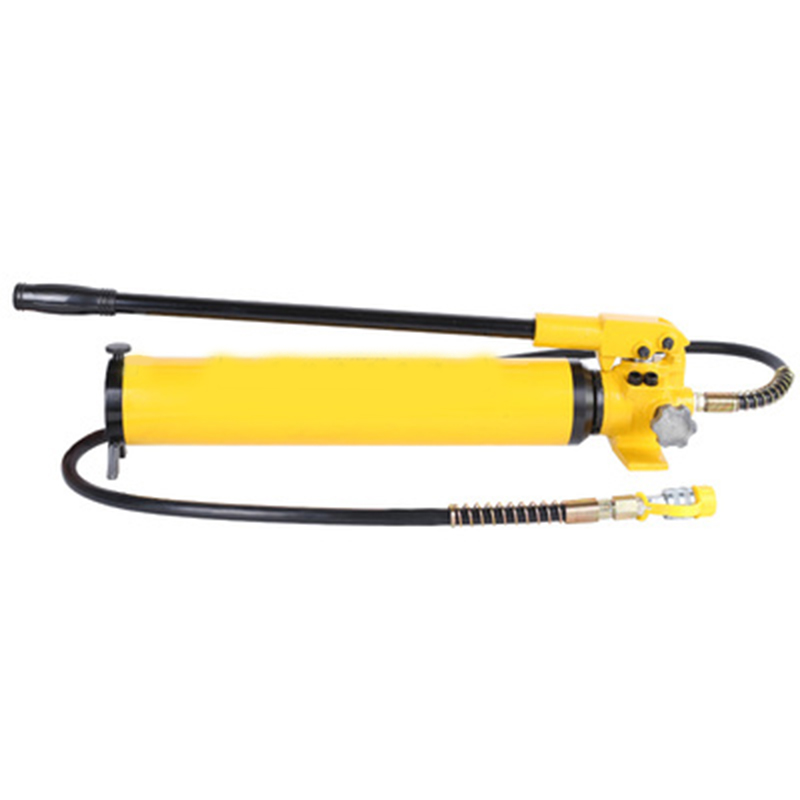

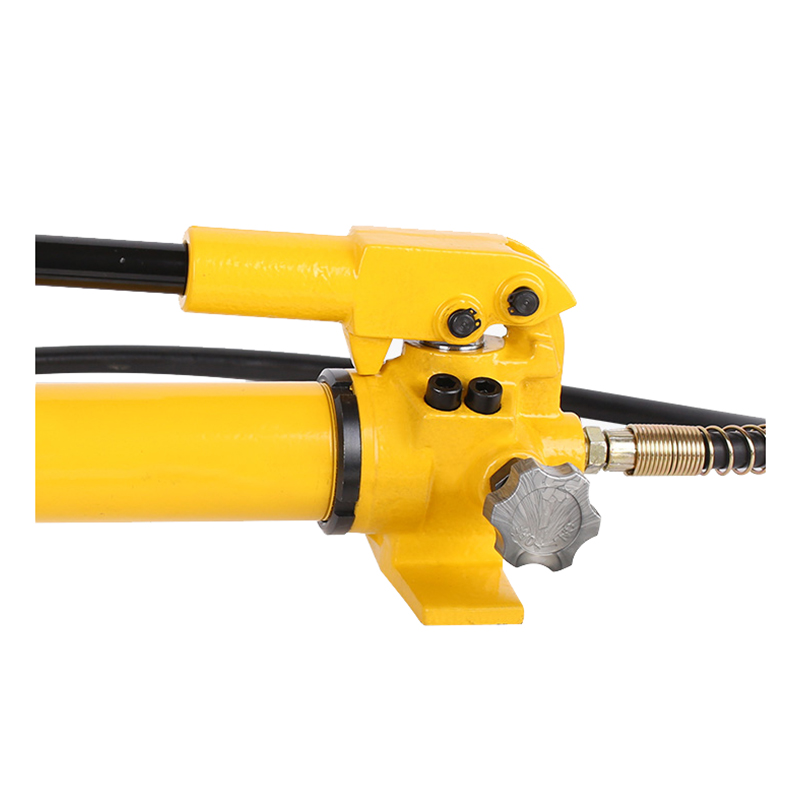

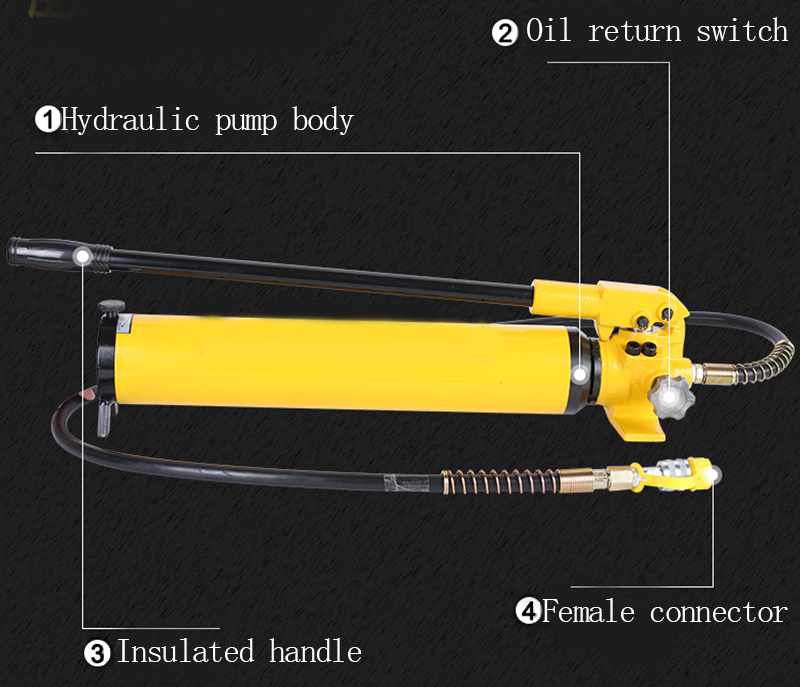

Hydraulic manual pump Hydraulic manual pump Hydraulic pump High pressure pump Hand pump 180
1. The maximum output pressure is 10,000 PSl and is coated with varnish to prevent rust
2. Oil capacity: 2900cc with 2m hose
3. External thread connector: stainless steel female connector with dust cover
4. Easy to carry: weight 17 kg
5. Wide range of uses: can be used for hydraulic cylinder jacks, drilling tools, etc.
$158.00
Compare
| Model | 700-2 |
| Oil storage capacity | 2900CC |
| Maximum output power | 700kgf/cm2/10000psi |
| Output pressure | low pressure 0-20kgf/cm2 high pressure 20-700kgf/cm2 |
| Hydraulic output | low pressure 12.26L/min high pressure 2.26L/min |
| Remarks | The length of the standard oil pipe is 2 meters |
Related products
-
Hydraulic Pumps, Hydraulics
Single Gear Pump HGP-3A Series High Pressure Mini Oil Pump for Engineering Machinery Hydraulic Systems Pressure 21Mpa~25Mpa Qmax:2cc/rev~12cc/rev (HGP-3A-F14R),waterjet cutting marble
Hydraulic Pumps, HydraulicsSingle Gear Pump HGP-3A Series High Pressure Mini Oil Pump for Engineering Machinery Hydraulic Systems Pressure 21Mpa~25Mpa Qmax:2cc/rev~12cc/rev (HGP-3A-F14R),waterjet cutting marble
- Pls check the size and mounting before you order.
- We provide many different models pumps with High quality.
- If you want to know the exact lead time or need it urgent, pls contact me.
- If you have any other questions pls contact me.
SKU: n/a -
Hydraulic Accessories, Hydraulics
Hydraulic Shock Absorber AC3660 Non-Adjustable Hydraulic Buffer Damper Cylinder Accessories Shock Absorber 60mm Stroke Length
Hydraulic Accessories, HydraulicsHydraulic Shock Absorber AC3660 Non-Adjustable Hydraulic Buffer Damper Cylinder Accessories Shock Absorber 60mm Stroke Length
- Stroke: 60mm
- Maximum absorbed energy: 250Nm
- Maximum allowable thrust: 400～2400kg
- Allowable speed: 1.0～4.0m/sec
- Thread interface: M36×1.5
- Working and ambient temperature: -10～80ºC
NOTE: Prices may vary by product model and material.
SKU: n/a -
Hydraulic Pumps, Hydraulics
Vane pump 45V-60A-1C-22R machine tool engineering machinery high pressure master hydraulic vane pump
Hydraulic Pumps, HydraulicsVane pump 45V-60A-1C-22R machine tool engineering machinery high pressure master hydraulic vane pump
pump start
1. Before starting the oil pump, check the inlet and steering, and do not make mistakes in the direction.
2. Fill the pump with oil for the first start, and turn the coupling by hand. The rotation force should feel even and flexible.
3. When the machine is started for the first time or after a long-term shutdown, it will cause air suction. Therefore, an exhaust valve should be installed at the output port, or the outlet flange should be slightly loosened to remove air, and a test run should be carried out under no-load conditions as much as possible.SKU: n/a
