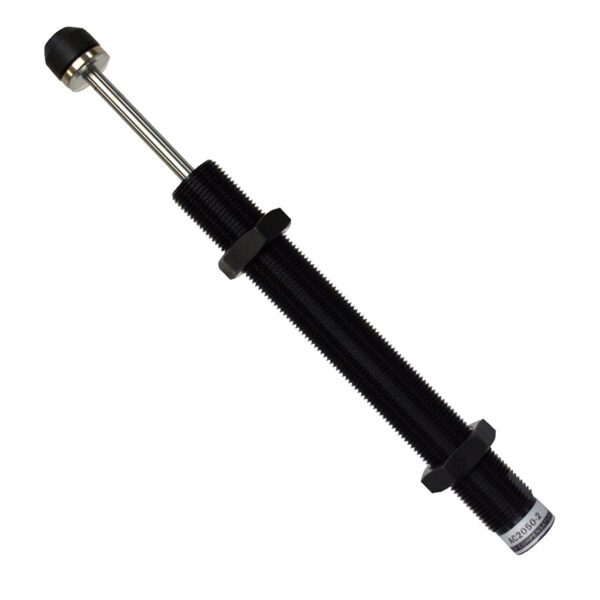

Hydraulic Shock Absorber AC2050 Non-Adjustable Hydraulic Buffer Damper Cylinder Accessories Shock Absorber 50mm Stroke Length


  • Stroke: 50mm
  • Maximum absorbed energy: 60Nm
  • Maximum allowable thrust: 60~1200kg
  • Allowable speed: 1.0~3.5m/sec
  • Thread interface: M20×1.5
  • Working and ambient temperature: -10~80ºC

NOTE: Prices may vary by product model and material.

$61.00

Compare

Application of Hydraulic Shock Absorber: Used in manipulators, air pressure booths, automatic machinery, speed-adjustable drilling machines, grinding machines, cutting machines and other fields.

Model AC2050
Stroke 50mm
Maximum absorbed energy 60Nm
Maximum allowable thrust 60~1200kg
Allowable speed 1.0~3.5m/sec
Thread interface M20×1.5
Working and ambient temperature -10~80ºC

Features of Hydraulic Shock Absorber

  • The Hydraulic Shock Absorber uses a steel piston rod. The material has good guiding properties, and the spring is connected inside, which can automatically reset the stroke.
  • High-quality oil seal improves sealing performance.

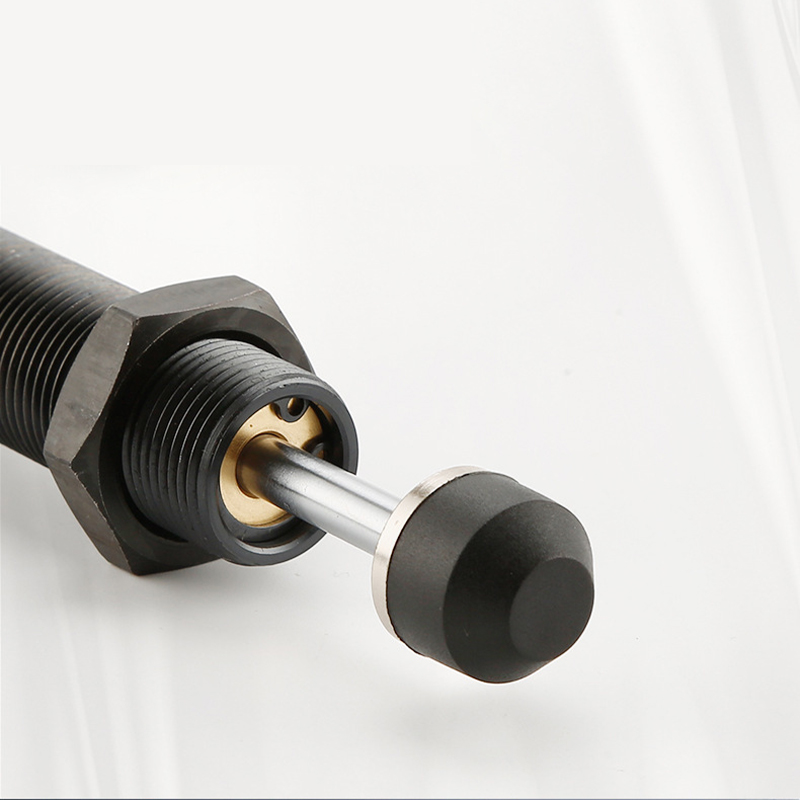

  • PP nylon buffer head. Moderate hardness, not easy to break, long service life.
  • The outer tube of medium carbon steel is harder than ordinary aluminum alloy and has better impact resistance.
  • Hydraulic Shock Absorber cushioning speed stability. Used in manipulators, air pressure booths, automatic machinery, speed-adjustable drilling machines, grinding machines, cutting
  • machines and other fields.

Precautions for use of Hydraulic Shock Absorber

1. Please align the colliding object with the center of the shaft, and make sure that the moving direction of the object is consistent with the direction of the shaft core.
2. Do not remove the front cap for use. Because removing the cap will lengthen the piston rod and make the piston rod hit the bottom, possibly damaging the bottom.
3. It is strictly forbidden to spray paint on the tube teeth and shaft, otherwise it will affect the heat dissipation effect and cause oil leakage.
4. Do not allow rust and foreign matter on the piston rod.
5. Install more than two shock absorbers on the same side, please confirm the synchronous action.
6. Do not disassemble and use.
