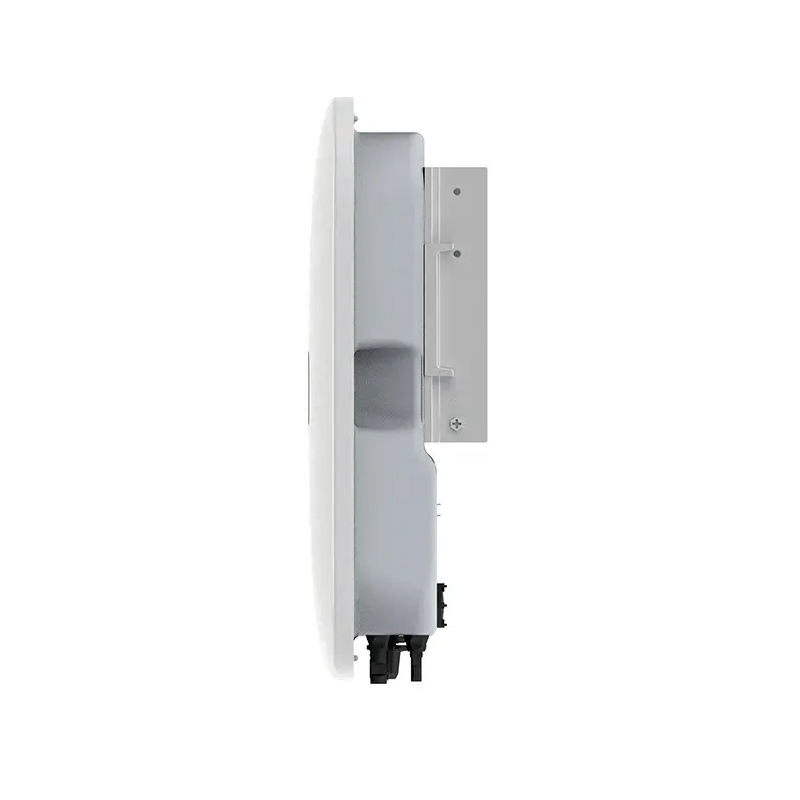

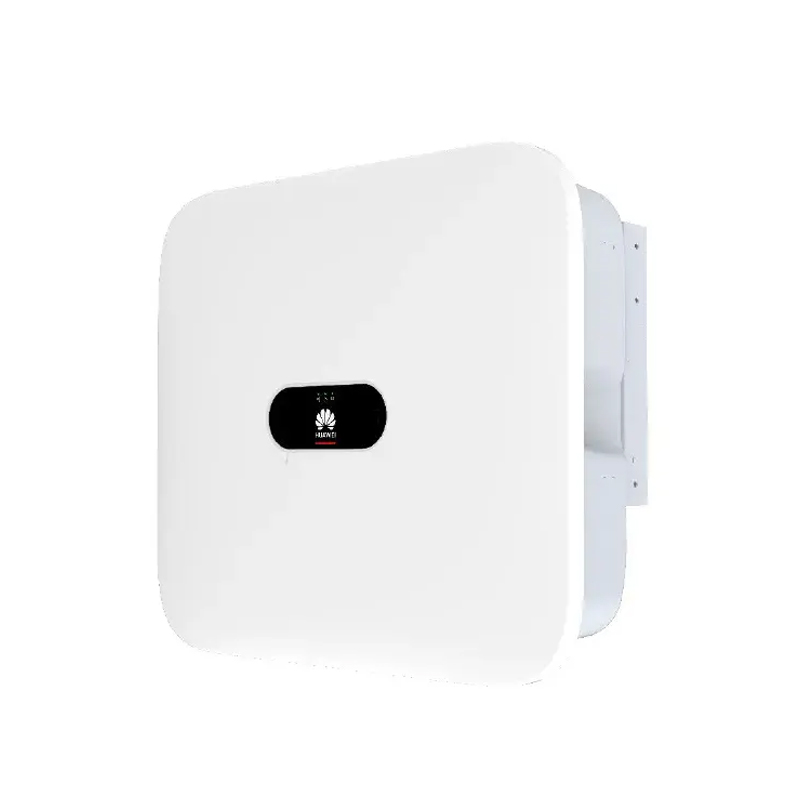

Hot Sale Household SUN2000-15/17/20KTL-M2 Three Phase On Grid Huawei Inverter，Intelligent photovoltaic controller

Add to wishlist
Compare

*1 The maximum input voltage is the upper limit of DC voltage, any higher input DC voltage may damage the inverter.
*2 Any DC input voltage exceeding the operating voltage range may cause abnormal operation of the inverter.
*3 SUN2000-15~20KTL-M2 uses the PD repair function to increase the potential between P- and ground to above OV, thereby repairing component attenuation. Supported component types include: P type (mono, poly).

$1,250.00

Compare

*1 The maximum input voltage is the upper limit of DC voltage, any higher input DC voltage may damage the inverter.
*2 Any DC input voltage exceeding the operating voltage range may cause abnormal operation of the inverter.
*3 SUN2000-15~20KTL-M2 uses the PD repair function to increase the potential between P- and ground to above OV, thereby repairing component attenuation. Supported component types include: P type (mono, poly).

Technical Specification
SUN2000
-5KTL-M1
SUN2000
-8KTL-M1
SUN2000
-10KTL-M1
Efficiency
Max. efficiency
98.4%
98.6%
98.6%
European weighted efficiency
97.5%
98.0%
98.1%
Input (PV)
Recommended max. PV power 1
7,500 Wp
12,000 Wp
15,000 Wp
Max. input voltage 2
1,100 V
Operating voltage range 3
140 V ~ 980 V
Start-up voltage
200 V
Rated input voltage
600 V
Max. input current per MPPT
11 A
Max. short-circuit current
15 A
Number of MPP trackers
2
Max. input number per MPP tracker
1
Input (DC Battery)
Compatible Battery
HUAWEI Smart String ESS 5kWh – 30kWh
Operating voltage range
600 V ~ 980 V
Max operating current
16A
Max charge Power
10,000 W
Max discharge Power
5,500 W
8,800 W
10,000 W
Output (On Grid)
Grid connection
Three-phase
Rated output power
5,000 W
8,000 W
10,000 W
Max. apparent power
5,500 VA
8,800 VA
11,000 VA 4
Rated output voltage
220 Vac / 380 Vac, 230 Vac / 400 Vac, 3W / N+PE
Rated AC grid frequency
50 Hz / 60 Hz
Max. output current
8.5 A
13.5 A
16.9 A
Adjustable power factor
0.8 leading 0.8 lagging
Max. total harmonic distortion
≤ 3 %
Output (Backup Power via Backup Box-B1)
Maximum apparent power
3,300 VA
Rated output voltage
220 V / 230 V
Maximum output current
15 A
Power factor range
0.8 leading 0.8 lagging
Features & Protections
Input-side disconnection device
Yes
Anti-Islanding protection
Yes
DC reverse polarity protection
Yes
Insulation monitoring
Yes
DC surge protection
Yes, compatible with TYPE II protection class according to EN/IEC 61643-11
AC surge protection
Yes, compatible with TYPE II protection class according to EN/IEC 61643-11
Residual current monitoring
Yes
AC overcurrent protection
Yes
AC short-circuit protection
Yes
AC overvoltage protection
Yes
Arc fault protection
Yes
Ripple receiver control
Yes
Integrated PID recovery 5
Yes
Battery reverse charging from grid
Yes
Nighttime Power Consumption
< 5.5W 6
General Data
Operating temperature range
-25 ~ + 60 °C (-13 °F ~ 140 °F)
Relative operating humidity
0 %RH~100 %RH
Operating altitude
0 ~ 4,000 m (13,123 ft.) (Derating above 2000 m)
Cooling
Natural convection
Display
LED Indicators; Integrated WLAN + FusionSolar App
Communication
RS485; WLAN/Ethernet via Smart Dongle-WLAN-FE; 4G / 3G / 2G via Smart Dongle-4G (Optional)
Weight (incl. mounting bracket)
17 kg (37.5 lb)
Dimension (incl. mounting bracket)
525 x 470 x 146.5 mm (20.7 x 18.5 x 5.8 inch)
Degree of protection
IP65
Optimizer Compatibility
DC MBUS compatible optimizer
SUN2000-450W-P
Standard Compliance (more available upon request)
Certificate
EN/IEC 62109-1, EN/IEC 62109-2, IEC 62116
Grid connection standards
G98, G99, EN 50438, CEI 0-21, VDE-AR-N-4105, AS 4777, C10/11, ABNT, UTE C15-712, RD 1699, TOR D4, NRS 097-2-1, IEC61727, IEC62116,
DEWA 2.0
