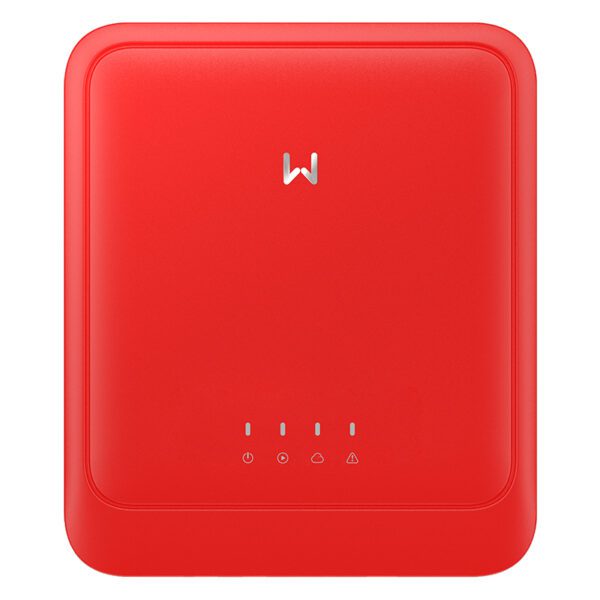

Goodwe G3 Inverter DNS G3 Series GW3600-DNS GW4200-DNS 2 MPPTs Single Phases On-grid Solar Inverter

Add to wishlist
Compare

Gudegan XS series photovoltaic inverter adopts a new hardware topology design, selects the latest generation of power devices, integrated power boards, greatly optimizes and improves the production process of the product, and greatly improves the consistency of the whole machine and the reliability and stability of performance.
The new die-casting box design is beautiful and elegant, which effectively guarantees that the product can adapt to different temperature and humidity installation environments. This model conforms to the trend of household demand, and raises the power density to a new height.

$813.00

Compare

SDT Series (THREE PHASE)
GW3600-DNS-30
GW4200-DNS-30
PV String Input Data
Max. DC Input Voltage (V)
600
MPPT Range (V)
40~560
Start-up Voltage (V)
50
Nominal DC Input Voltage (V)
360
Max. Input Current (A)
16
Max. Short Current (A)
23
No. of MPP Trackers
2
No. of Input Strings per Tracker
1
AC Output Data
Nominal Output Power (W)
3,600
4,200
Max. Output Apparent Power (VA)
3,960
4,620
Nominal Output Voltage (V)
220
Nominal Output Frequency (Hz)
50
Max. Output Current (A)
17.3
20.1
Output Power Factor
~1 (Adjustable from 0.8 leading to 0.8 lagging)
Output THDi (@Nominal Output)
<3%
item
value
Place of Origin
China
Brand Name
Goodwe
Model Number
DNS G3 Series
Input Voltage
600V
Output Voltage
220V
Output Current
20.1A
Output Frequency
50Hz
Output Type
Single
Size
350*410*143mm
Type
DC/AC Inverters
Inverter Efficiency
97.9%
Certificate
CE,TUV, CEC,CE,INMETOR,ETL,
Warranty
5 Years
Weight
12.8kg
Keyword
Solar Inverter
Brand
Goodwe
Packing
Paper Box
Operating temperature range
-25~60℃
Maximum working altitude
4,000m
Tracking
MPPT tracking , yield and faulty tracking
Application
Residential , Commercial , Industrial
Category: Tags: ,
Specification

530w, 535w, 545w
