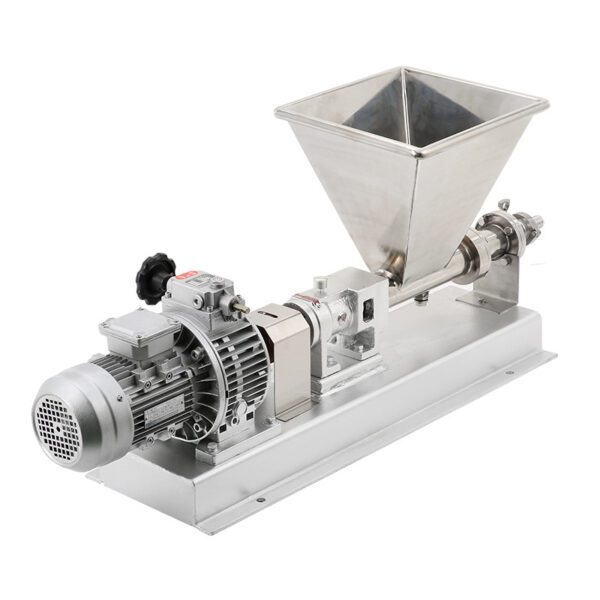

Feeding Speed Regulating Screw Pump Stainless Steel 304 Thick Slurry Pump 0.5-60m³/h Screw Conveyor Pump

Add to wishlist
Compare
  • Material: SS304 or SS316L
  • Flow: 0.5-60 m³/h
  • Power: 0.55-15 kw
  • Frequency: 50 /60 Hz
  • Speed: 710-960r/min

NOTE: Prices may vary by product model and material.

$709.00

Compare

The Feeding Speed Regulating screw pump has strong adaptability to the medium, stable flow, small pressure pulsation and good suction performance.
It can transport various flow media, and can also transport high-viscosity media, media containing hard suspensions, granules or solid particles, and media containing fibers.
Good regulation performance, wide range and high efficiency.

Item Stainless steel food grade mono screw pump
material SS304 or SS316L
Flow 0.5-60 m³/h
Power 0.55-15 kw
Frequency 50 /60 Hz
Speed 710-960r/min

Product Model and Technical Parameter

Flow(t/h) Power(kw) Rotating speed Inlet and outlet diameter
0.5 t/h 0.55 kw 960 r/min 25 mm
1 t/h 0.55 kw 960 r/min 25 mm
1.5 t/h 0.75 kw 960 r/min 32 mm
2 t/h 1.1 kw 960 r/min 32 mm
3 t/h 1.5 kw 960 r/min 38 mm
5 t/h 2.2 kw 960 r/min 51 mm
6 t/h 2.2 kw 960 r/min 51 mm
5.5 t/h 2.2-8 kw 710 r/min 51 mm
7 t/h 3 kw 960 r/min 51 mm
7 t/h 3-8 kw 710 r/min 51 mm
9 t/h 4 kw 960 r/min 51 mm
10 t/h 4-8 kw 710 r/min 89 mm
13 t/h 6-7.5 kw 960 r/min 89 mm
13 t/h 5.5-8 kw 710 r/min 89 mm
18 t/h 6-7.5 kw 960 r/min 89 mm
30 t/h 7.5-8 kw 710 r/min 102 mm
40 t/h 8-11 kw 710 r/min 125 mm
60 t/h 8-15 kw 710 r/min 150 mm
