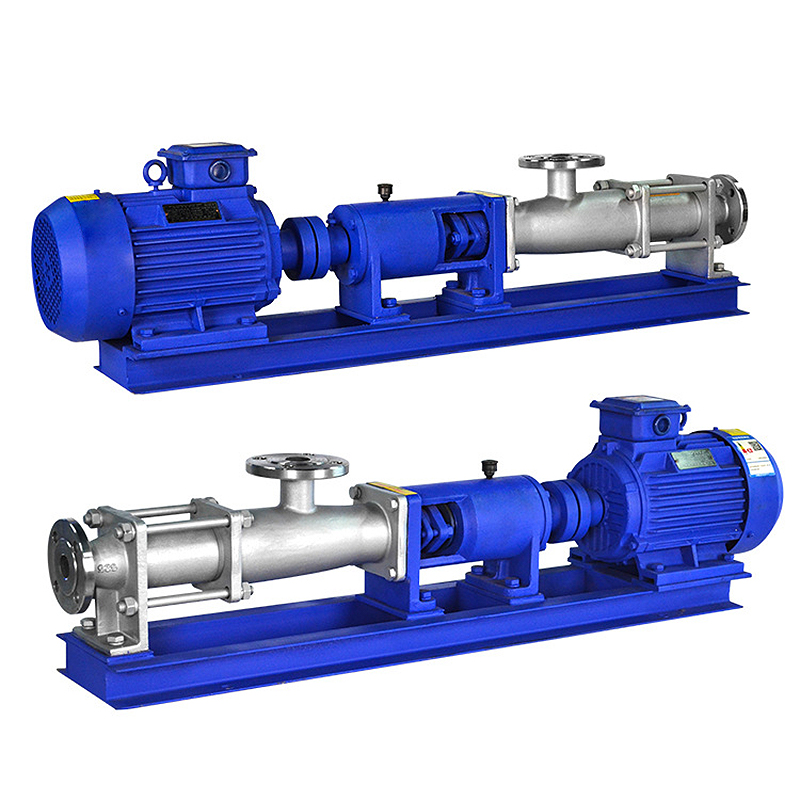

5m³/h 2.2kw Screw Pump 201 Stainless Steel Screw Pump Sludge Screw Pump Dosing Pump Sewage Pump Filter Press Screw Pump
- Flow: 5m³/h(5T/H)
- Motor power: 2.2KW
- Lift: 60M
- Pressure: 0.6Mpa
- Inlet pipe diameter: 50mm
- Output pipe diameter: 40mm
- Allowable particle diameter: 2.5mm
- Rotating speed: 900r/min
NOTE: Prices may vary by product model and material.
$1,153.00
CompareFeatures of Screw Pump
- Motor: pure copper wire configuration, the bass runs smoothly. Corresponding to different working conditions, different motors such as explosion-proof, frequency conversion, stepless speed regulation, and gear reduction can be replaced.
- Stator: Stator rubber is compacted and made of Dingqing rubber, EPDM, silica gel, etc. To correspond to different media and working conditions.
- Rotor: The rotors are all polished, and the specifications and sizes are strictly controlled, easy to install and durable.
- Universal joint assembly: used to connect and fasten the three rotors to protect the rotors from running smoothly and prolong their service life.
- Widely used in chemical industry, hospital, urban drainage, fire boosting and many other places. All kinds of viscous slurry, cement slurry, lime, etc.
| 1. Outlet | 2. Water inlet | 3. Lubricating oil filling port |
| 4. Coupling | 5. Capacitor port | 6. Stator rotor |
| 7. Gland | 8. Bearing seat | 9. Reinforced base |
| 10. Electric motor | 11. Cooling cover |
| Flow | Motor power | Lift | Pressure | Import and Export Size | Allowable particle diameter |
| 0.8 m³/h | 0.75 kw | 60 m | 0.6 MPa | 25*25 mm | 1.5 mm |
| 0.8 m³/h | 1.1 kw | 120 m | 0.6 MPa | 25*25 mm | 1.5 mm |
| 2 m³/h | 1.5 kw | 60 m | 0.6 MPa | 32*25 mm | 2 mm |
| 2 m³/h | 2.2 kw | 120 m | 1.2 MPa | 32*25 mm | 2 mm |
| 5 m³/h | 2.2 kw | 60 m | 0.6 MPa | 50*40 mm | 2.5 mm |
| 5 m³/h | 3.0 kw | 120 m | 1.2 MPa | 50*40 mm | 2.5 mm |
| 8 m³/h | 3.0 kw | 60 m | 0.6 MPa | 65*50 mm | 3 mm |
| 8 m³/h | 4.0 kw | 120 m | 1.2 MPa | 65*50 mm | 3 mm |
| 12 m³/h | 4.0 kw | 60 m | 0.6 MPa | 80*65 mm | 3.8 mm |
| 12 m³/h | 5.5 kw | 120 m | 1.2 MPa | 80*65 mm | 3.8 mm |
| 20 m³/h | 5.5 kw | 60 m | 0.6 MPa | 100*80 mm | 5 mm |
| 20 m³/h | 7.5 kw | 120 m | 1.2 MPa | 100*80 mm | 5 mm |
| 30 m³/h | 11 kw | 60 m | 0.6 MPa | 125*100 mm | 6 mm |
| 30 m³/h | 11 kw | 120 m | 1.2 MPa | 125*100 mm | 6 mm |
| 45 m³/h | 11 kw | 60 m | 0.6 MPa | 150*120 mm | 8 mm |
| 45 m³/h | 15 kw | 120 m | 1.2 MPa | 150*120 mm | 8 mm |
| 60 m³/h | 18.5 kw | 60 m | 0.6 MPa | 150*150 mm | 10 mm |
| 100 m³/h | 22 kw | 60 m | 0.6 MPa | 200*200 mm | 15 mm |
| 150 m³/h | 37 kw | 60 m | 0.6 MPa | 200*250 mm | 20 mm |
