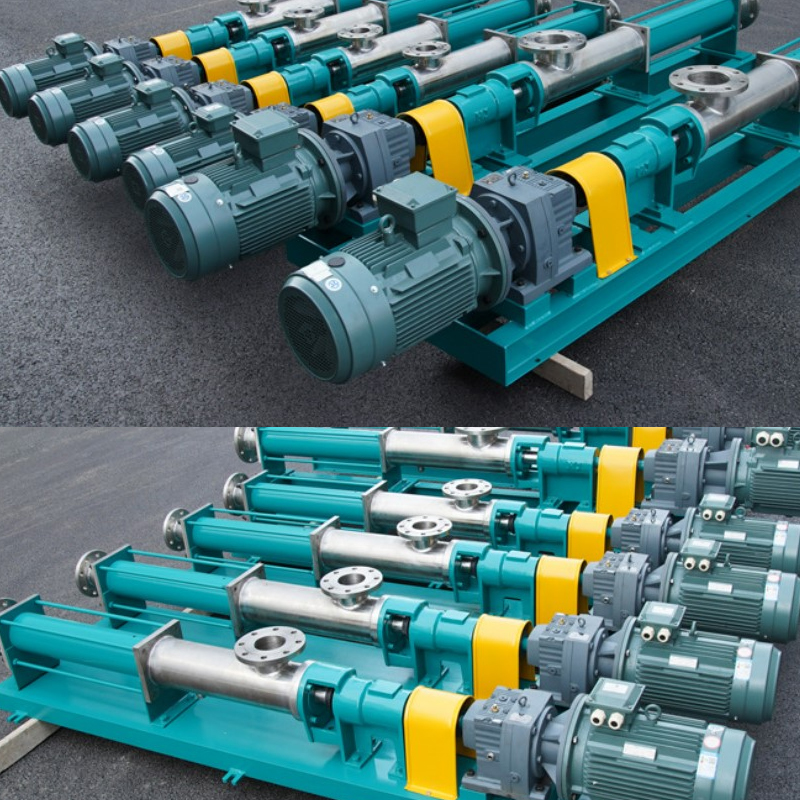

Special engineering screw pump for conveying gypsum slurry and sludge treatment in power plant,Industrial stainless steel screw pump single screw pump

G-type single-screw pump is a new type of pump that works on the principle of rotary meshing displacement. The main working parts of G-type single-screw pump are eccentric screw (rotor) and fixed bushing (stator). Due to the special geometric shape of the two parts , respectively forming a separate sealed cavity, the medium flows uniformly from the axial direction, the internal flow rate is low, the volume remains constant, and the pressure is stable, so there will be no eddy current and agitation. The output pressure of each pump is 0.6MPA, the head is 60M (clear water), and the self-priming height is generally 6M, which is suitable for the temperature of the conveying medium below 80°C (special requirements can reach 150°C).
