Compressed Air Treatment Equipment

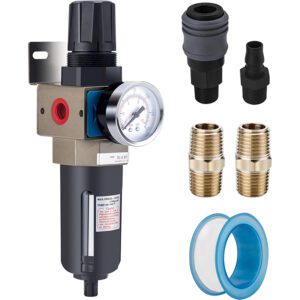

Compressed Air Filter Regulator Lubricator Zinc Alloy 5 Micron 3/8″ NPT Brass Element Manual Drain Metal Bracket
- 3/8″ NPT Air Filter Regulator Lubricator Combination- Cleans ＆ Dry Air, Precise Pressure Regulation, Lubricate Your Equipment with Air.
- Zinc Alloy Body – Higher Hardness and More Compression Resistance than Aluminum Alloy and Plastic Materials.
- Piston Type Pressure Regulating Screw – More Durable and Longer Life, Prevent Air Leakage.
- 5 Micron Brass Filter Element – Excellent Filtering Performance, Much Longer Life and Reuse Feasibility.
- Includes Manual Drain & Polycarbonate Bowl with Zinc Alloy Guard, 0-150 psi Gauge & Metal Bracket, a pair of 1/4″ NPT Brass Air Coupler＆ Plug Kit, 2 x 1/4″ NPT Fittings, 1 x Thread Seal Tape.
$73.00
CompareThe Zinc Alloy Air Filter Regulator Lubricator provides a safer and more effective drying solution for your pneumatic equipment, efficiently filter out moisture and particles in the air.
More rigorous structural design to prevent air leakage.
Use for any compressor, air tank, spray gun, or air system to precisely regulate and maintain constant air pressure to your tools and equipment.
The lubricator lubricate your pneumatic tools with air to improve the efficiency of the equipment and prolong the service life of the equipment.
| Air Inlet/Outlet | 1/2″ NPT |
| Max Inlet Pressure | 10 Bar (145 psi); |
| Operating Pressure | 0-8 Bar (0-125 psi); |
| Flow Rate | 88 SCFM @ 90 psi (2500 L /Minute @ 6 Bar); |
| Temperature Range | 41-140℉（5-60℃). |
| Package | Includes Manual Drain & Polycarbonate Bowl with Zinc Alloy Guard, 0-150 psi Gauge & Metal Bracket, a pair of 1/4″ NPT Brass Air Coupler＆ Plug Kit, 2 x 1/4″ NPT Fittings, 1 x Thread Seal Tape. |
Related products
-
Compressed Air Treatment Equipment

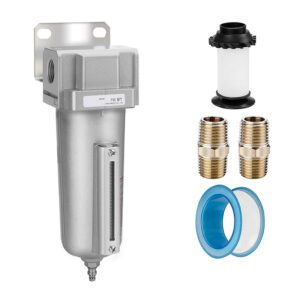

Heavy Duty Particulate Filter Industrial Grade Metal Bowl Suitable for Paint Spray 3/4″ NPT Manual Drain
Compressed Air Treatment EquipmentHeavy Duty Particulate Filter Industrial Grade Metal Bowl Suitable for Paint Spray 3/4″ NPT Manual Drain
- Compressed Air Water Trap Filter Equipped with 5 Micron Element, which has Excellent Filtering Performance, Much Longer Life and Reuse Feasibility, Remove Most of Moisture and Particles in the Air Line.
- Works Perfectly in the Pressure Environment of 7-215 psi.
- Excellent Metal Bowl w/ Visible Sight Glass in Every Stage Protect You and the System throughout the Entire Process.
- Max.Tempreture: 140℉（60℃）
- Flow Rate: 140 CFM
- Accessories: 2 × 5 Micron Element(One of Them is Installed in the Product), 2 × 3/4″ NPT Fittings, 1 × Thread Seal Tape.
SKU: n/a -
Compressed Air Treatment Equipment
1/4″ NPT Compressed Air Filter Regulator Lubricator Combo Water/Oil Trap Separator Gauge(0-150 psi) Poly Bowl Semi-Auto Drain Bracket
Compressed Air Treatment Equipment1/4″ NPT Compressed Air Filter Regulator Lubricator Combo Water/Oil Trap Separator Gauge(0-150 psi) Poly Bowl Semi-Auto Drain Bracket
- 1/4″ NPT Piggyback Filter Regulator Lubricator Unit
- Operating Pressure: 0-125 PSI
- 5 Micron Brass Filter Element, Excellent Filtering Performance, Much Longer Life and Reuse Feasibility
- Flow Rate: 18 SCFM (500 L /Minute)@90 psi
Note: Prices may vary depending on product capacity and quality.
SKU: n/a -
Compressed Air Treatment Equipment
Compressed Air Filter Regulator 3/8″ 1/2″ 1/4″ 5 Micron Brass Element 0-150 psi Gauge Manual Drain Metal Bracket
Compressed Air Treatment EquipmentCompressed Air Filter Regulator 3/8″ 1/2″ 1/4″ 5 Micron Brass Element 0-150 psi Gauge Manual Drain Metal Bracket
- 3/8″ NPT Air Filter Regulator- Cleans ＆ Dry Air, Precise Pressure Regulation.
- Two-Way Installation: Air can be Input from the Left or Right, the Position of the Pressure Gauge and the Bracket can be Exchanged.
- Piston Type Pressure Regulating Screw – More Durable and Longer Life, Prevent Air Leakage; 5 Micron Brass Filter Element – Excellent Filtering Performance, Much Longer Life and Reuse Feasibility.
- Max Inlet Pressure: 10 Bar (145 psi).
- Operating Pressure: 0-10 Bar (0-145 psi).
- Flow Rate: 74 SCFM @ 90 psi (2100 L /Minute @ 6 Bar).
- Temperature Range: 41-140°F（5-60℃).
SKU: n/a -
Compressed Air Treatment Equipment

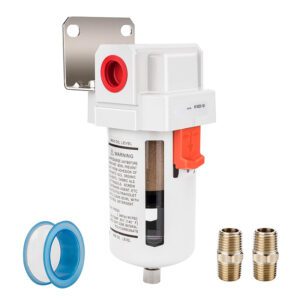

Compressed Air Line Filter 1/2″ NPT 5 Micron Brass Element Bracket Poly Bowl 145 psi
