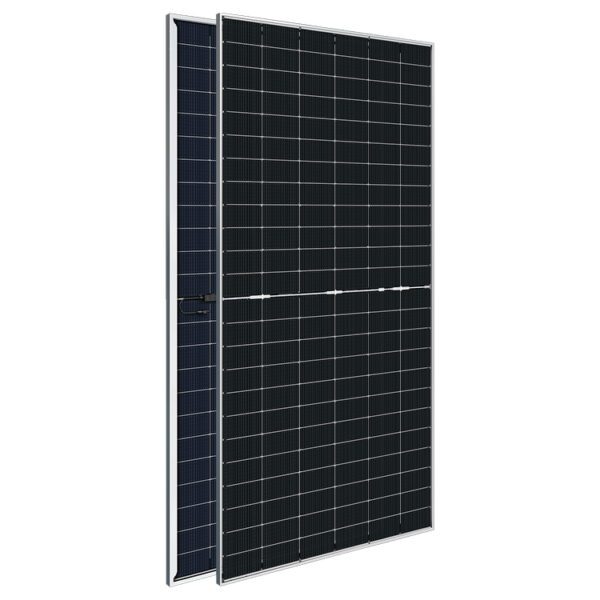

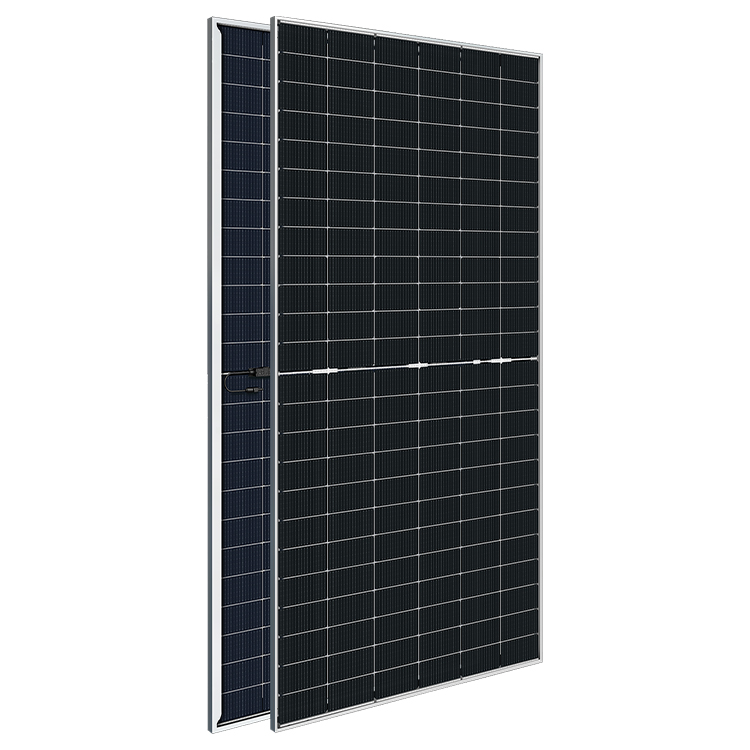

Astronergy Solar Power System Photovoltaic Panel ASTRO N7 590~615W Solar Panel CHSM72RN(DG)/F-BH Double Sided Series (182)

Solar Panel parameters

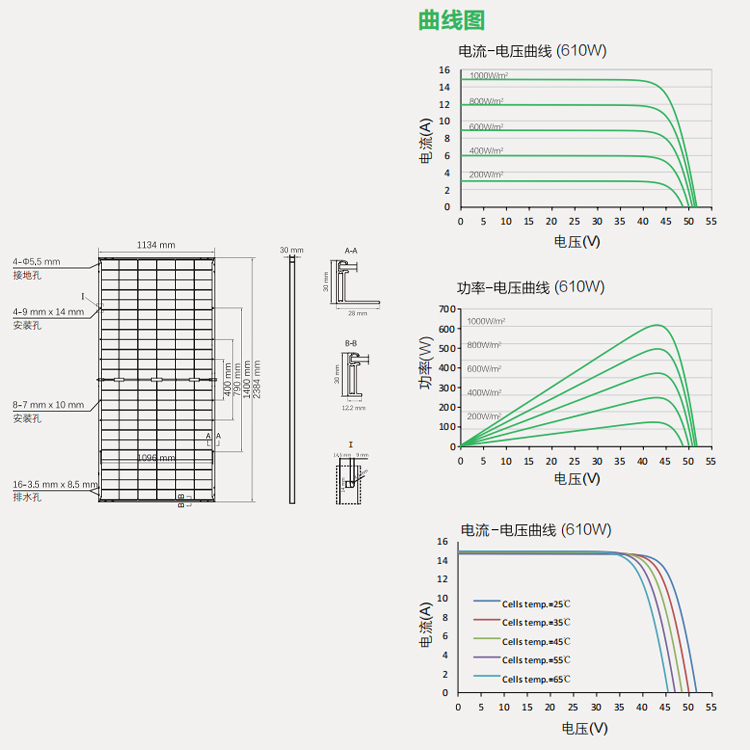

Component Dimensions (L x W x H) 2384 x 1134 x 30 mm
Cell n-type monocrystalline silicon
Number of cells 144 (6*24)
Frame type Silver white anodized aluminum profile
Glass thickness 2.0+2.0 mm
Cable length (including connectors) vertical installation: ( + ) 350 mm, ( – ) 250 mm;
or customized;
Cable cross-section (IEC/UL) 4 mm² / 12 AWG
① Maximum test mechanical load 5400 Pa (front) / 2400 Pa (rear)
Connector Type (IEC/UL) HCB40 (Standard) / MC4-EVO2A (Optional)
Packaging parameters
Component weight 33.5 kg
Quantity per pallet 36 pieces / pallet
Single pallet weight 1268 kg
Loading capacity (17.5m flatbed car) 828 yuan / car (subject to the contract)

Different rear power gains (take 610W as an example)
Power gain Pmpp / Wp Vmpp / V lmpp /A Voc / V Isc /A
5% 641 43.54 14.71 51.80 15.53
10% 671 43.54 15.41 51.80 16.27
15% 702 43.54 16.11 51.80 17.01
20% 732 43.54 16.81 51.80 17.75
25% 763 43.54 17.51 51.80 18.49
Temperature Coefficient Operating Parameters
Rated power temperature coefficient (Pmpp) -0.29%/℃ Maximum system voltage (IEC/UL) 1500VDC
Short Circuit Current Temperature Coefficient (Isc) +0.043%/°C Number of Diodes 3
Open circuit voltage temperature coefficient (Voc) -0.25%/℃ Junction box protection class IP 68
Component Nominal Operating Temperature (NMOT) 41±2°C Maximum Series Fuse Rated Current 30 A

High Power, High Module Efficiency
Using n-type TOPCon battery technology, the power can reach 615W, and the module efficiency is as high as 22.7%.
high reliability

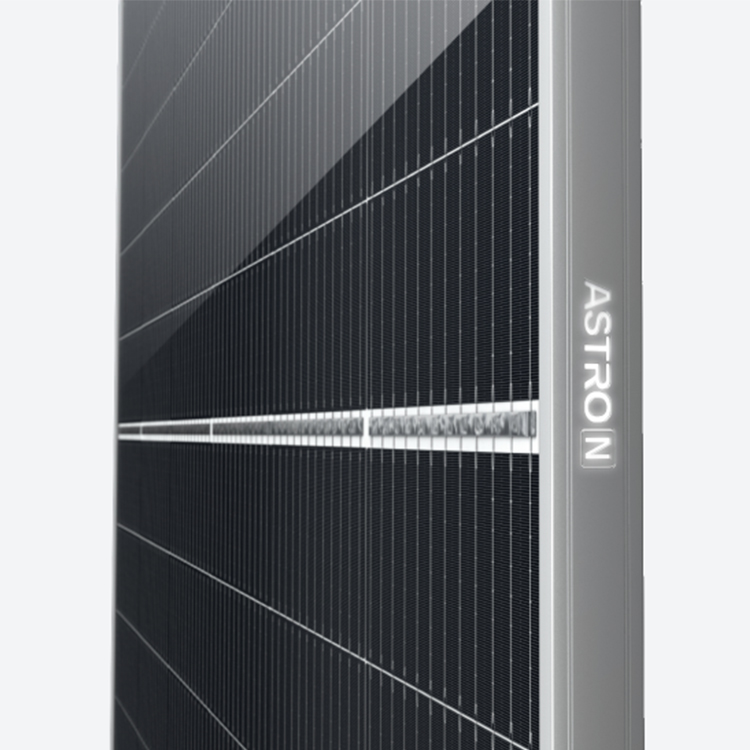

Technologies such as multi-busbar half-cut and non-destructive cutting have improved the load resistance capacity of the module and ensured the high reliability of the module.
Low attenuation, long warranty
Power attenuation ≤ 1% in the first year, linear power attenuation ≤ 0.4% year by year, power warranty up to 30 years.
double-sided power generation
The power generation on the back of the superimposed modules has a higher comprehensive power generation capacity.
Packaging Shipping Compatibility
Mainstream and mature packaging solutions to achieve high reliability and low cost transportation
