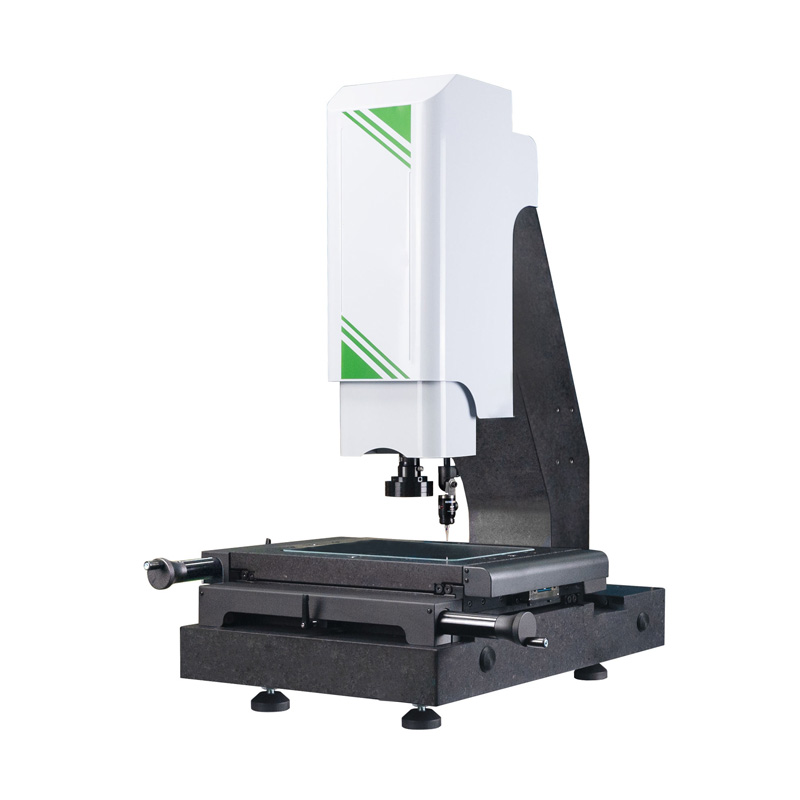

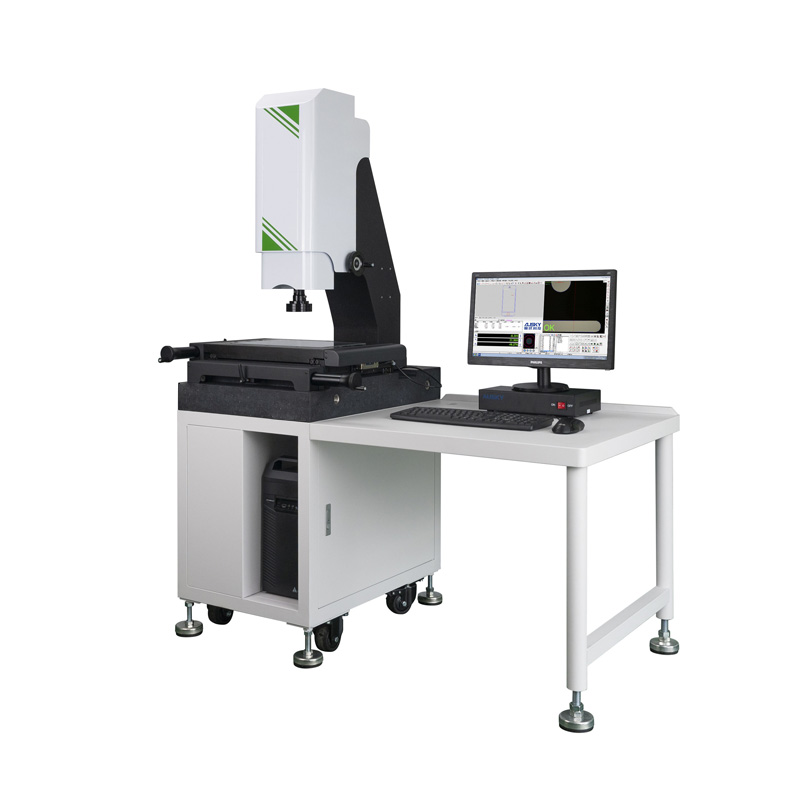

2D/3D Vision Metrology for Electronics Non-contact Precision
This high-performance optical system is a precision vision metrology instrument designed for non-contact 2D and 3D dimensional testing in high-tech manufacturing. It functions as an automated inspection station that captures intricate part geometries with micron-level accuracy for quality assurance in electronics and precision engineering.
$21.00
CompareProduct Introduction for 2D/3D Vision Metrology
This high-performance optical system is a precision vision metrology instrument designed for non-contact 2D and 3D dimensional testing in high-tech manufacturing. It functions as an automated inspection station that captures intricate part geometries with micron-level accuracy for quality assurance in electronics and precision engineering.
Parameter Table
| Materials | Granite and metal |
| Applications | High-precision dimensional measurement |
| Table size (mm) | 250 x 150 mm |
| Instrument accuracy | X, Y (2.5 + L/200) micrometers |
| Product weight | 280 kg |
Application Scenario
- Semiconductor and PCB Inspection
- Precision Automotive Parts Testing
- Medical Device Dimensional Control
- Aerospace Component Verification
Contact us to get your quotation now.
