20HL Stainless Steel Brite Tank/Bright Beer Tank/Serving tank

Add to wishlist
Compare

For those who want to produce a high-quality beer, the right amount of carbonation is essential. Not only does this aspect help amplify the drink’s flavor, but it also provides the smooth texture that everyone wants. As such, our jacketed brite tanks are the perfect beer storage tanks for your product before it’s on its way to the bar tap. With their insulated shell, accurate temperature gauge, and completely sanitary inner lining, each stainless steel brite tank can prepare and preserve hundreds of gallons for shipping and bottling.

If you’re looking for the best brite tank for sale to start off or expand your commercial brewery, check out our specs below; then, please contact us..

$7,900.00

Compare

Standard Features

  • Dual zone dimple cooling jackets (3 or more on larger tanks)
  • Interior shell: 304 stainless steel, thickness 3mm
  • Cooling jacket: 304 stainless steel, thickness 2mm
  • Exterior shell: 304 stainless steel, thickness 2mm
  • 80mm Polyurethane insulation
  • Interior surface to finish pickled and passivated
  • Exterior surface to brushed, #4 finish

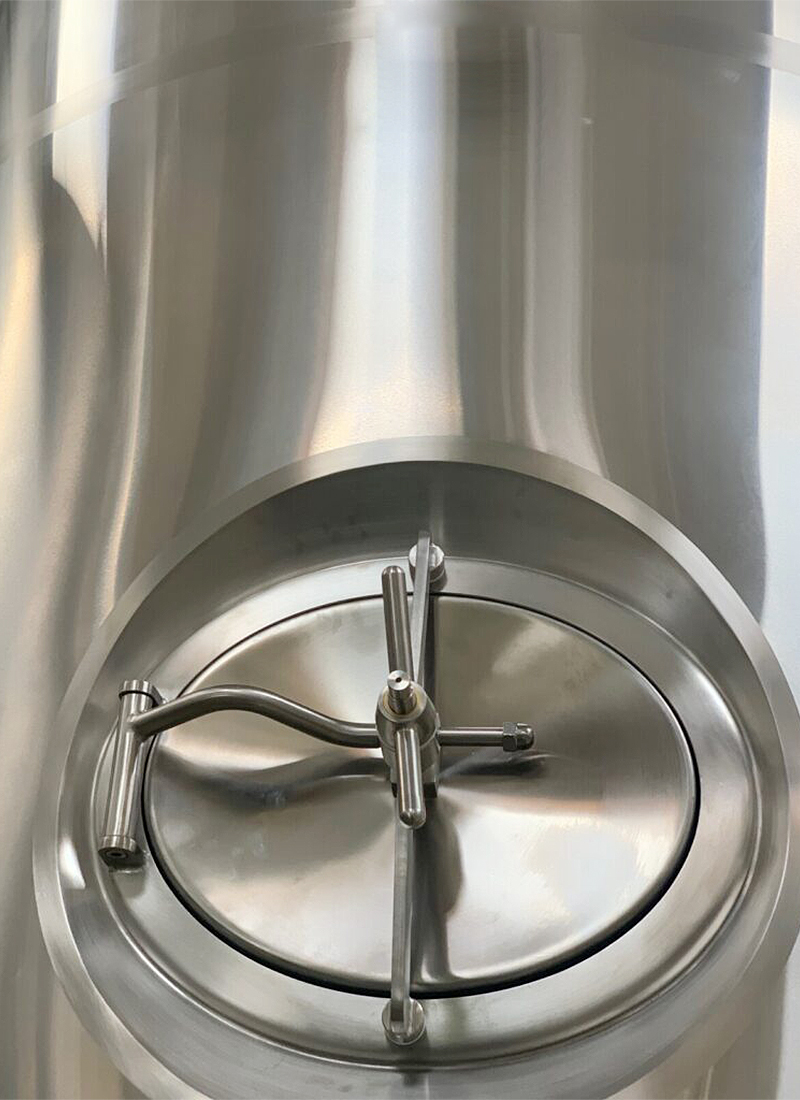

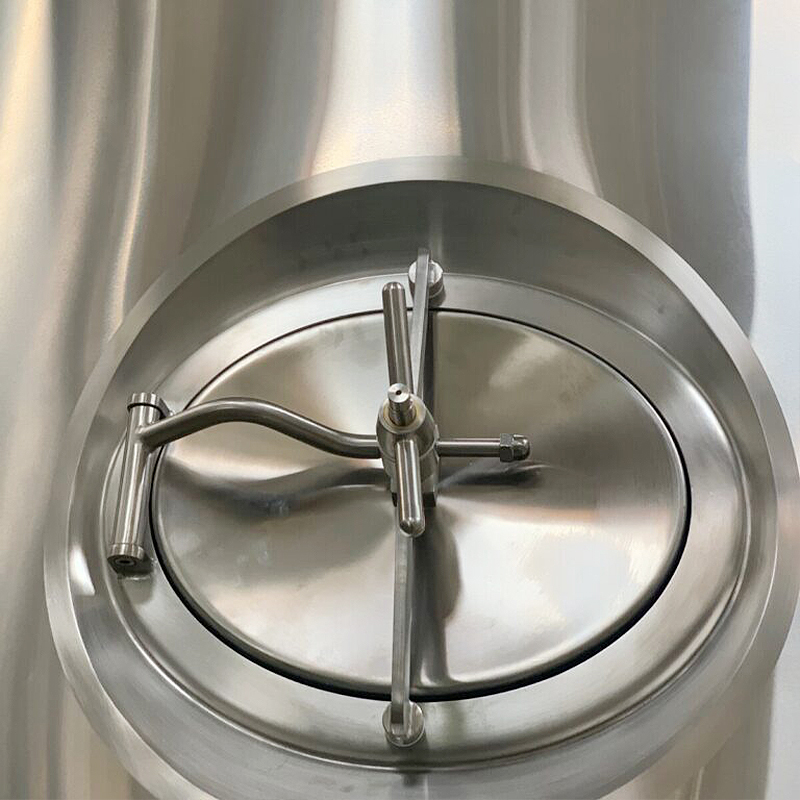

  • Side manway
  • Dry hop inlet at top



Accessories

  • Sample Valve x1
  • Pressure relief/vacuum valve x1
  • Temp sensor / thermometer x1
  • CIP spray ball
  • Rotating racking arm with butterfly valve x1
  • Bottom outlet with butterfly valve x1
  • Spraying Ball with down tube x1
  • Stainless pipe legs with adjustable footpads x4



Optional Accessory

  • Carbonation stone
  • Fill level indicator

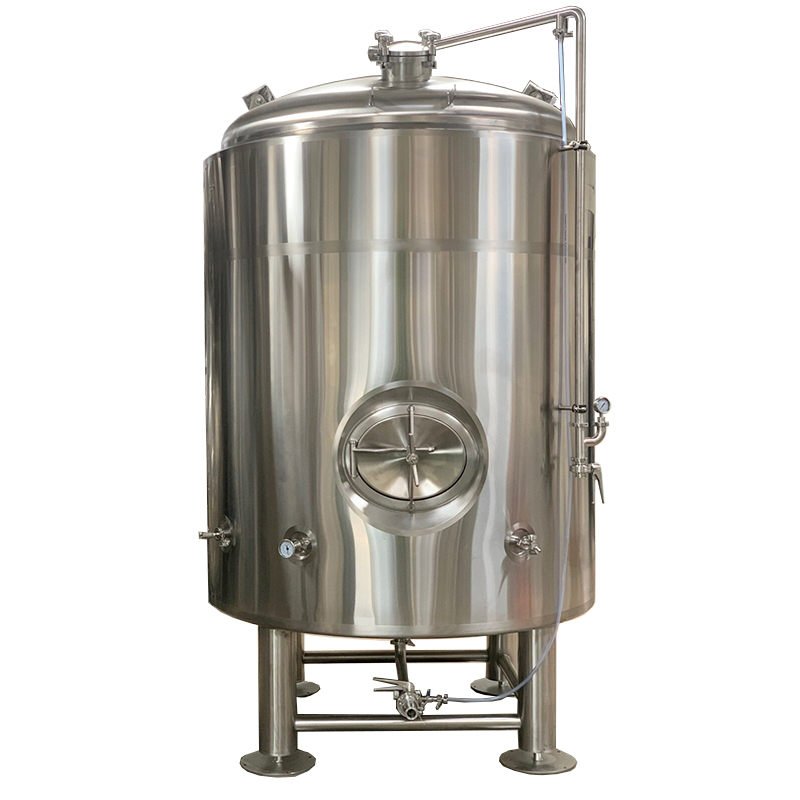

20HL brite tank



The role of each position

Cooling channels duplicators for circulating of coolant in the cooling jacket (one, two or more according type of the tank)
PUR insulation polyurethane insulation with thickness according to the size of the tank and the target environment
Clear product outlet with a butterfly valve for pure beverage (beer, wine, cider) output the racking arm (optionally with variable height of a suction)
Tank draining outlet inlet with a butterfly valve for filling tank, discharging of yeast and draining of full content of the tank
Sanitation sprayball CIP sprayball one or more pcs
Sanitation pipe a multifunction pipe with a ball valve for connection of a sprayball, CIP station (cleaning, sanitizing), the relief valve with manometer, CO2 inlet
Sample valve cleanable and sanitizable sampling cock for collection product samples
Safety valve double-acting overpressure (standard = 3.2 bar) and vaccum protection (0.2 bar) safety valve – only pressure version of the tank
Venting valve dedicated valve for safety draining of the tank and for accurate measurement pressure in the tank with manometer (when the sprayball is glued with foam)
Thermometer socket welded socket for inserting of thermosensor or thermometer (one or more according type of the tank)
Manometer included in the pressure relief valve set, stainless steel, glycerine
Fill level indicator cleanable and sanitizable glass pipe for visualisation of product level in the tank
Legs with adjustable feet 3 or 4 legs with rubber feet for accurate adjusting of the tank on an uneven floor



Every beer brite tank for brewing details is strictly in accordance with the requirements of the drawings, high standards require ourselves to complete the production process with high efficiency.
