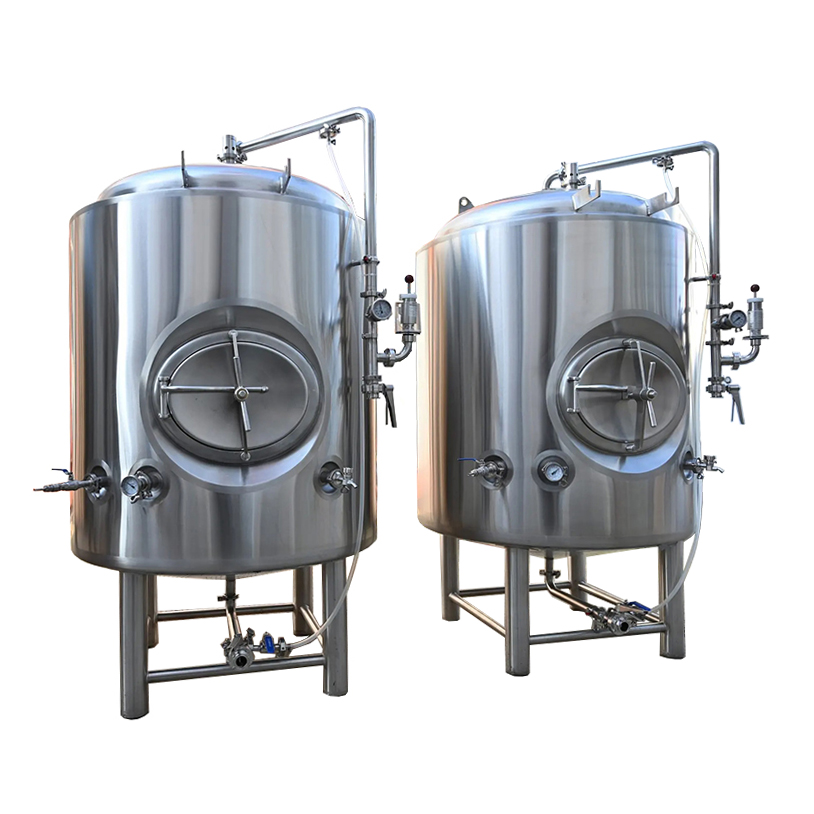

5HL Stainless Steel Brite Tank/Bright Beer Tank/Serving tank


Beer bright tanks are made in top-grade certified stainless steel materials (2B or precise polish for available surface). We always attaching high importance to be in line with international standard and fortunately; These tanks are used for the storage of the beer prior to being served or packaged. Depending on their application the beer serving tanks can be glycol jacketed or can be located in a cold room.For brewpubs serving is often done by pumping or pressurizing the beer toward the serving location.

The beer bright tank includes sight tube, carbonation stone port and front access manhole. Stainless steel dimple jackets are utilized on the bright beer tanks to maximize glycol cooling performance, allowing the brewer to maintain low laagering temperatures. The dedicated temperature controller and glycol solenoid valve are included with each bright beer tank.

$5,109.00

Compare

Standard Features

  • Dual zone dimple cooling jackets (3 or more on larger tanks)
  • Interior shell: 304 stainless steel, thickness 3mm
  • Cooling jacket: 304 stainless steel, thickness 2mm
  • Exterior shell: 304 stainless steel, thickness 2mm
  • 80mm Polyurethane insulation
  • Interior surface to finish pickled and passivated
  • Exterior surface to brushed, #4 finish
  • Side manway
  • Dry hop inlet at top



Accessories

  • Sample Valve x1
  • Pressure relief/vacuum valve x1
  • Temp sensor / thermometer x1
  • CIP spray ball
  • Rotating racking arm with butterfly valve x1
  • Bottom outlet with butterfly valve x1
  • Spraying Ball with down tube x1
  • Stainless pipe legs with adjustable footpads x4



Optional Accessory

  • Carbonation stone
  • Fill level indicator

5HL brite tank



The role of each position

Cooling channels duplicators for circulating of coolant in the cooling jacket (one, two or more according type of the tank)
PUR insulation polyurethane insulation with thickness according to the size of the tank and the target environment
Clear product outlet with a butterfly valve for pure beverage (beer, wine, cider) output the racking arm (optionally with variable height of a suction)
Tank draining outlet inlet with a butterfly valve for filling tank, discharging of yeast and draining of full content of the tank
Sanitation sprayball CIP sprayball one or more pcs
Sanitation pipe a multifunction pipe with a ball valve for connection of a sprayball, CIP station (cleaning, sanitizing), the relief valve with manometer, CO2 inlet
Sample valve cleanable and sanitizable sampling cock for collection product samples
Safety valve double-acting overpressure (standard = 3.2 bar) and vaccum protection (0.2 bar) safety valve – only pressure version of the tank
Venting valve dedicated valve for safety draining of the tank and for accurate measurement pressure in the tank with manometer (when the sprayball is glued with foam)
Thermometer socket welded socket for inserting of thermosensor or thermometer (one or more according type of the tank)
Manometer included in the pressure relief valve set, stainless steel, glycerine
Fill level indicator cleanable and sanitizable glass pipe for visualisation of product level in the tank
Legs with adjustable feet 3 or 4 legs with rubber feet for accurate adjusting of the tank on an uneven floor



Every beer brite tank for brewing details is strictly in accordance with the requirements of the drawings, high standards require ourselves to complete the production process with high efficiency.
