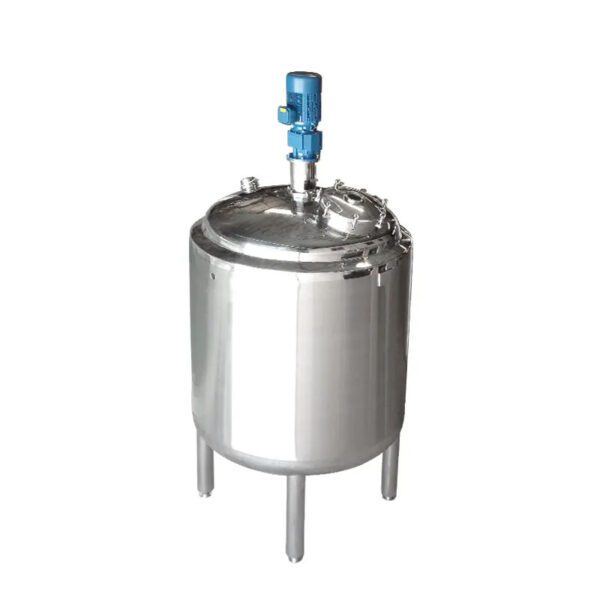

Mixing Tank/Vessel/Kettle, which is used for liquid-liquid or powder-liquid blending and mixing, is a type of large-scale production equipment and has the functions of dispersing, emulsifying, heating and cooling, to fulfill different production process requirement; It can be stably running for long time, has the advantages of small noise, simple operation and strong adaptability, is the ideal multi-functional equipment for mixing and dispersing.
Materials Viscosity
|
≤500,000 cps
|
Production Capacity
|
100-50000L
|
Application Industry
|
Used for dispersing and mixing in industries such as biological, pharmaceutical, food, paint, ink, adhesives, dyes, pesticides etc.
|
Characteristics
|
Variety of paste-like materials with viscosity ≤500,000 cps, solid proportion ≤60%; such as latex, industrial paint, water-based ink, pesticides, adhesives, etc.
|
High Mixing Efficiency & High Quality
capable to choose the most suitable agitator and speed according to different materials feature and mixing requirements, thus the liquids will be mixed in cross and turbulent flow and meanwhile in axial and radial motion, finally get uniformly mixed after a certain period of time.
High-speed Dispersing and Emulsifying, Fulfill More Demands, Cost-effective
Mixing kettle can be equipped with one to two high-speed disperser and emulsifier with the highest speed 2930rpm (normally 1450rpm), velocity above 20 m/s, which make sure the powder material can be uniformly dispersed into the liquids; the mixture will be finally dispersed uniformly and shows good suspension effect because of high-shearing force.
Easy Maintenance and Cleaning
The agitator is fixed on the shaft via bolts, easy to remove and disassemble.
Non-standard
Variety of models can be customized, e.g. explosion proof model, vacuum model, scraper model, multi-function model, etc. The equipment material can adopt SS316L or do spray-coating treatment according to client’s requirement.
Effective volume(L)
|
Dimension of tank(D*H)(mm)
|
Total height(mm)
|
Motor power(kw)
|
Blending speed(r/min)
|
500
|
840*1000
|
2750
|
0.75
|
As customer’s requirement
|
600
|
920*1000
|
2850
|
0.75
|
|
700
|
990*1000
|
2850
|
0.75
|
|
800
|
950*1220
|
3000
|
0.75
|
|
900
|
1010*1220
|
3000
|
0.75
|
|
1000
|
1060*1220
|
3150
|
1.1
|
|
1500
|
1160*1500
|
3350
|
1.1
|
|
2000
|
1340*1500
|
3410
|
1.5
|
|
3000
|
1410*2000
|
4000
|
2.2
|
|
4000
|
1620*2000
|
4250
|
2.2
|
|
5000
|
1810*2000
|
4300
|
3
|
|
6000
|
1980*2000
|
4550
|
3
|
|
7000
|
1930*2440
|
5000
|
3
|
|
8000
|
2060*2440
|
5000
|
4
|
|
9000
|
2180*2440
|
5050
|
4
|
|
10000
|
2300*2440
|
5050
|
4
|
|
12000
|
2270*3000
|
5600
|
5.5
|
|
15000
|
2530*3000
|
5700
|
5.5
|
|
20000
|
2640*3660
|
6400
|
5.5
|
|
Can according to customer’s requirement customize.
|
