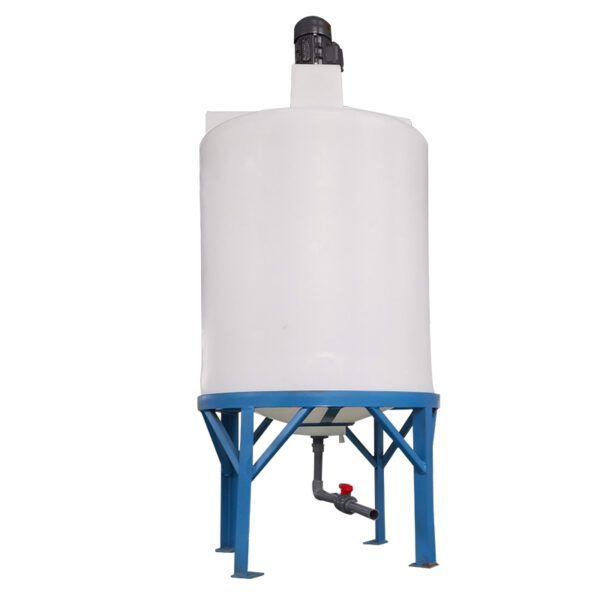

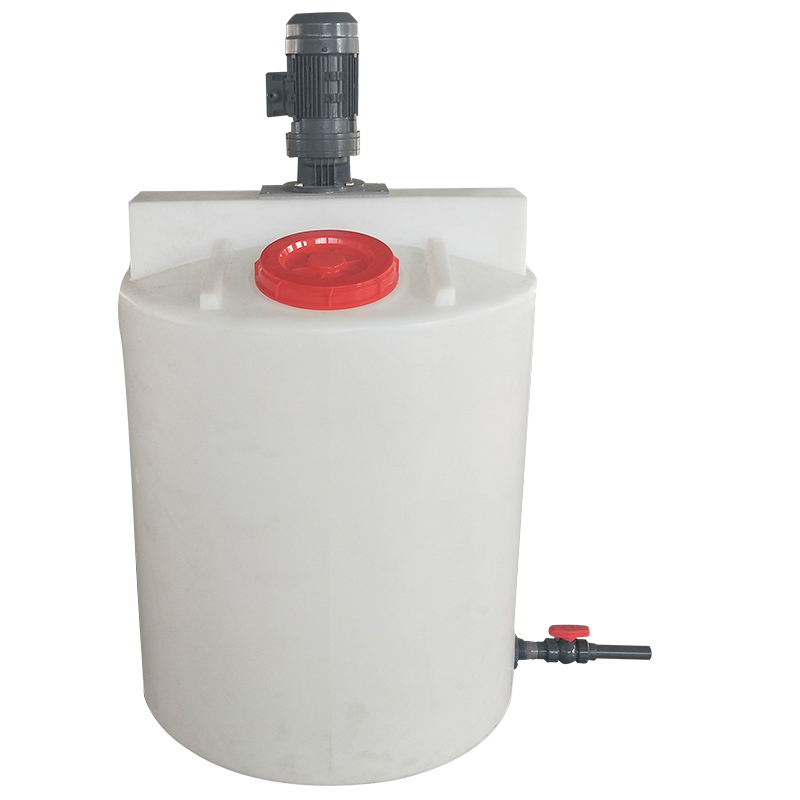

500L Industrial And Chemical Mixing Tanks


There are many choices when it comes to selecting a mixing tank or vessel material. For different situations, you can choose different materials;Two main types of mixing tanks, plastic and metal:

  • Poly mixing tanks include High Density Polyethylene (HDPE), Polypropylene (PP), Polyvinylidene (PVDF) and Teflon (PTFE).
  • Metal tanks are usually 304 Stainless Steel, 316L Stainless Steel, . We will be focusing on selecting tanks for sanitary or food grade;

Note: Prices may vary depending on product capacity and quality.

$1,389.00

Compare
Model 500L
Capacity 0.5T
Bottom diameter 830mm
Vertical height 910mm
Total height 1070mm
Outside caliber 220mm
Inner caliber 200mm
Beam 160mm*765mm
Weight 18KG
Wall thickness 6mm

Mixing Tank Material Selection
There are many choices when it comes to selecting a mixing tank or vessel material. For different situations, you can choose different materials;Two main types of mixing tanks, plastic and metal:

  • Poly mixing tanks include High Density Polyethylene (HDPE), Polypropylene (PP), Polyvinylidene (PVDF) and Teflon (PTFE).
  • Metal tanks are usually 304 Stainless Steel, 316L Stainless Steel, . We will be focusing on selecting tanks for sanitary or food grade;

The main parameters considered in mixing tank or vessel selection are contents, corrosion resistance, volume, temperature, location and other conditions.
Plastic mixing vessels offer advantages over steel mixing tanks including cost, weight, rapid fabrication time compared to stainless steel and the ability to see liquid level.
Metal tanks are more resistant to cracking and temperature effects but they require polishing of the base metal and welds and so the cost to manufacture is typically much higher than plastic tanks.
