Vacuum Conveyor System for Pharmaceutical Powder Handling

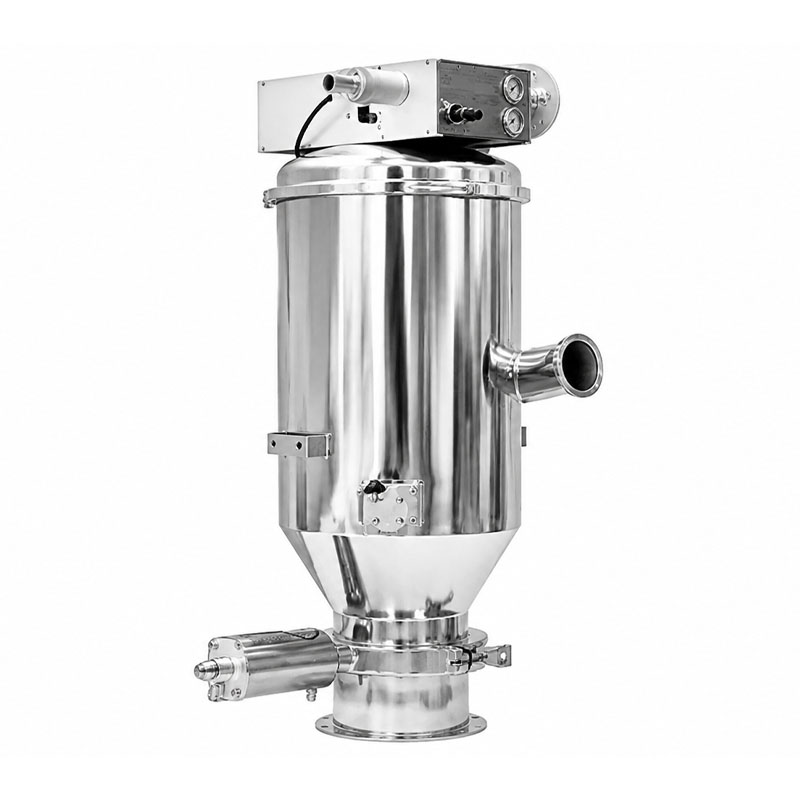

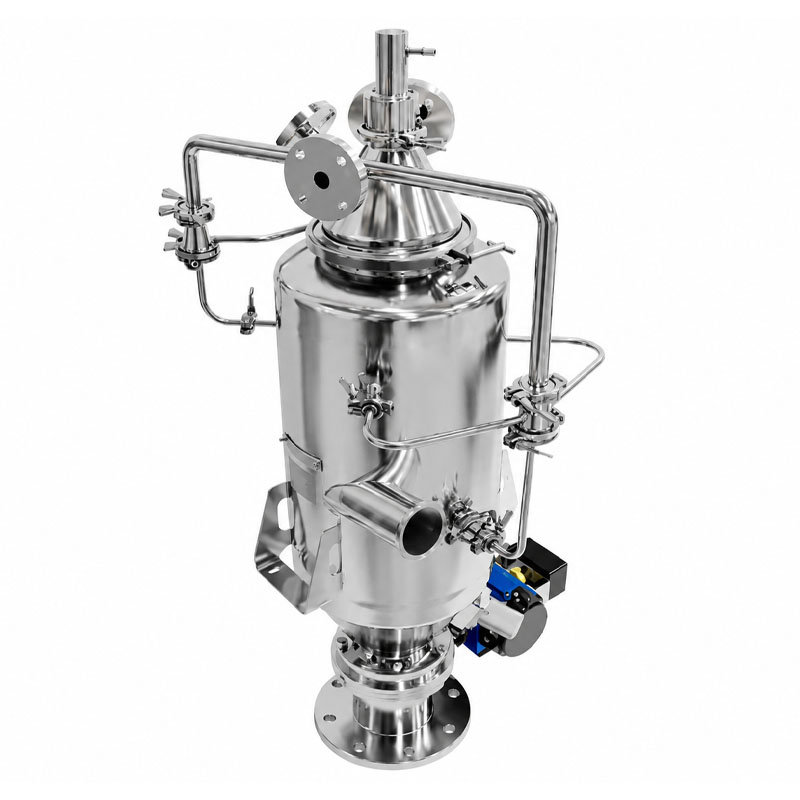

Vacuum Conveyor System Product Introduction

Vacuum Conveyor System is an advanced pneumatic conveying solution designed for the automatic handling of powders, granules, and other bulk materials. By using vacuum airflow technology, the system creates a controlled negative pressure environment that transfers materials safely through a sealed pipeline without generating dust or product loss.

The enclosed conveying design helps maintain high hygiene standards and prevents contamination between different production batches. With smooth internal surfaces, minimized dead spaces, and easy disassembly features, the system is especially suitable for industries requiring strict cleaning and sanitation requirements.

Compared with traditional mechanical conveying equipment, the Vacuum Conveyor System provides greater flexibility in installation, improved material protection, and reliable operation. It can be integrated with production equipment for automatic feeding, loading, and transfer processes, helping manufacturers improve efficiency while reducing manual handling.

The system is widely used for pharmaceutical powders, food ingredients, chemical materials, and other sensitive bulk products where clean, safe, and controlled transportation is required.

Working principle

The Vacuum Conveyor System works by creating negative pressure inside the conveying pipeline through a vacuum source. When the vacuum is generated, air enters through the material inlet and carries the powder or granulated material through the pipeline.

During the conveying process:

1. The vacuum pump generates airflow and negative pressure.
2. Material is automatically drawn into the conveying line.
3. Airflow transports the material through sealed pipelines.
4. Filters separate material from the conveying air.
5. The transported material is discharged into the receiving equipment.

This continuous process enables clean, efficient, and automated material handling.

Product Parameter Table

Parameter	Specification
Material Volume	33 L
Power	200 W
Compressed Air Consumption	100 L/min
Working Air Pressure	0.6 MPa
Vacuum Extraction Interface	3-inch quick connector
Feed Inlet Interface	3-inch quick connector
Weight	40 kg
Overall Dimension	Φ400 × 1250 mm

Main Features

1. Dust-Free and Fully Enclosed Conveying

The Vacuum Conveyor System uses a sealed pipeline structure to transport materials without exposing them to the surrounding environment. This design minimizes dust emissions, reduces material loss, and creates a cleaner production area.

2. Hygienic Design for Strict Industries

The smooth internal structure reduces material accumulation and prevents hidden areas where products may remain. This makes the conveyor suitable for pharmaceutical, food, and other industries requiring high sanitation standards.

3. Safe Material Transfer

The vacuum conveying method provides gentle material transportation with reduced impact on product quality. It helps prevent material separation, damage, or contamination during the conveying process.

4. Easy Cleaning and Maintenance

The optimized structure allows quick disassembly and convenient cleaning. The equipment can be configured with cleaning and sterilization solutions to meet demanding production environments.

5. Flexible Installation Solution

The pipeline layout can be customized according to factory conditions. The system can transfer materials vertically or horizontally and adapt to different production line configurations.

6. Low Energy Consumption

The pneumatic conveying principle provides efficient material transfer with reduced mechanical wear and lower maintenance requirements compared with traditional conveying methods.

7. Stainless Steel Contact Components

Product contact parts can be manufactured with high-quality stainless steel materials to meet hygiene and corrosion resistance requirements for food and pharmaceutical applications.

8. Reliable Filter System

The integrated filtration system separates conveyed materials from airflow effectively, ensuring stable operation and preventing material contamination.

Application Scenarios

1. Pharmaceutical Industry

The Vacuum Conveyor System is widely used for transporting pharmaceutical powders, active ingredients, and granules where contamination prevention and hygienic operation are essential.

2. Food Processing Industry

It is suitable for conveying flour, sugar, starch, milk powder, spices, and other food ingredients while maintaining clean production conditions and reducing dust generation.

3. Chemical Industry

The system provides safe transportation of chemical powders, additives, pigments, and fine particles, especially for applications requiring enclosed handling.

4. Battery and New Energy Industry

The conveyor can handle fine powder materials used in battery production and other energy-related manufacturing processes with stable and controlled transfer.

5. Plastics and Polymer Industry

It is suitable for transferring plastic pellets, resin powders, and polymer materials between storage units, processing machines, and packaging systems.

6. Industrial Production Lines

The equipment can be integrated into automated production systems for material feeding, machine loading, and continuous bulk material transfer.

Advantages of Vacuum Conveyor System

• Clean and dust-free material transportation
• Fully enclosed conveying process
• Suitable for powder and granule materials
• Prevents cross-contamination between batches
• Flexible installation for different factory layouts
• Easy cleaning and maintenance
• Safe handling of sensitive materials
• Reduced manual operation
• Improved production efficiency
• Compatible with automated processing equipment

FAQ

1. What materials can a Vacuum Conveyor System handle?

The Vacuum Conveyor System can transport various dry materials, including powders, granules, pellets, and fine particles. Common applications include pharmaceutical ingredients, food powders, chemical additives, and plastic materials.

2. Why choose vacuum conveying instead of traditional conveyors?

Vacuum conveying provides a cleaner and safer transfer method because materials move through enclosed pipelines. It reduces dust, contamination risks, and material loss while offering more flexible installation options.

3. Is the Vacuum Conveyor System suitable for pharmaceutical production?

Yes. The sealed design, easy cleaning structure, and hygienic material contact surfaces make it suitable for pharmaceutical applications requiring strict cleanliness and contamination control.

4. Can this conveyor transfer materials over long distances?

Yes. The conveying distance and height can be customized according to application requirements. The system can be designed for different production layouts and material transfer conditions.

5. Does the system require much maintenance?

The Vacuum Conveyor System has a simple structure with fewer moving parts, reducing maintenance requirements. Regular filter cleaning and inspection are generally sufficient for stable operation.

6. Can the conveyor be customized for different materials?

Yes. The system can be customized according to material characteristics, including powder properties, bulk density, conveying capacity, and production requirements.

7. Is it suitable for explosive or sensitive materials?

For special applications, the system can be configured with suitable safety solutions for handling sensitive, flammable, or hazardous materials under proper industrial requirements.
