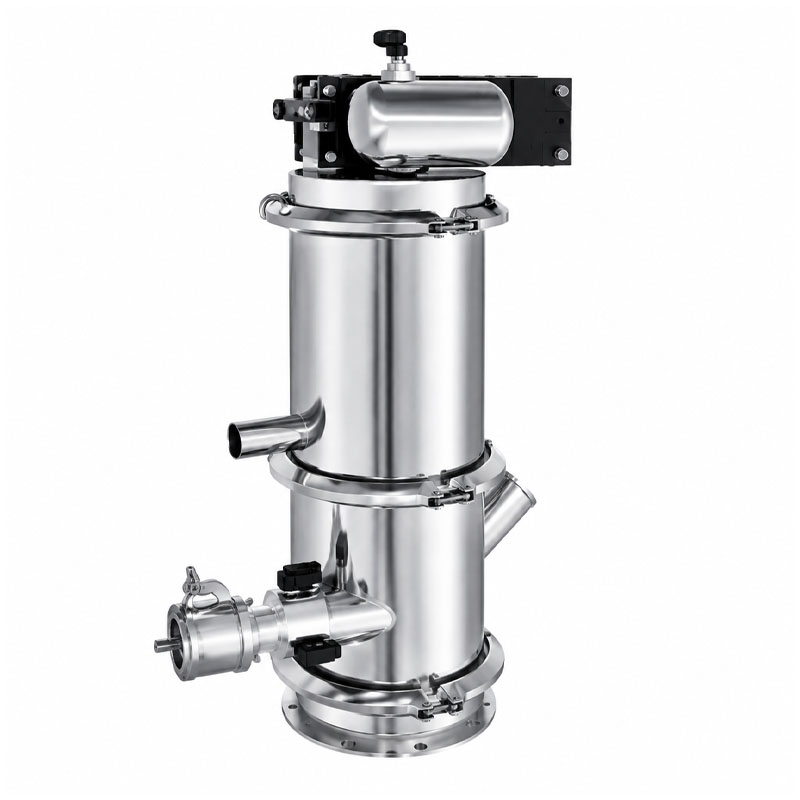

Flexible Pneumatic Vacuum Conveyor for Bulk Material Transfer

Product introduction of Flexible Pneumatic Vacuum Conveyor

Flexible Pneumatic Vacuum Conveyor is an advanced pneumatic conveying system designed for the efficient transfer of powders, granules, and other bulk materials through a fully enclosed pipeline. By utilizing the pressure difference between vacuum and atmospheric environments, the system creates a controlled airflow that smoothly transports materials with minimal loss and contamination risk.

Compared with traditional mechanical conveying methods, the Flexible Pneumatic Vacuum Conveyor provides a cleaner, safer, and more flexible material transfer solution. The sealed conveying structure prevents dust leakage during operation, helping maintain a hygienic working environment while protecting materials from external contamination.

The system is suitable for handling various dry materials with different characteristics, including powder, granule, and fine particles. Its flexible pipeline layout allows installation in limited spaces and complex production environments, making it an ideal choice for automated material feeding, loading, and transferring processes.

Designed for industries with strict hygiene and safety requirements, the Flexible Pneumatic Vacuum Conveyor can be integrated with cleaning and sterilization functions, providing reliable performance in food processing, pharmaceutical production, chemical manufacturing, and other industrial applications.

Working principle

The Flexible Pneumatic Vacuum Conveyor operates by using pneumatic power to create negative pressure inside the conveying pipeline.

When the vacuum source generates airflow, material is drawn from the feeding point into the pipeline and transported to the receiving container. The controlled airflow carries the material smoothly while maintaining a sealed conveying environment.

The main working process includes:

1. Vacuum generation creates negative pressure inside the system.
2. Material is automatically sucked into the conveying pipeline.
3. Airflow carries the material through flexible pipes.
4. Filters separate materials from conveying air.
5. Materials are discharged into the destination equipment.

This process provides continuous, clean, and efficient bulk material transportation.

Product Parameter Table

Parameter	Specification
Material Volume	56 L
Power	200 W
Compressed Air Consumption	200 L/min
Compressed Air Pressure	0.6 MPa
Vacuum Extraction Interface	4-inch quick connector
Feed Inlet Interface	4-inch quick connector
Weight	65 kg
Overall Dimension	Φ650 × 1350 mm

Main Features

1. Dust-Free and Sealed Conveying Design

The Flexible Pneumatic Vacuum Conveyor adopts a fully enclosed conveying structure to prevent material leakage and dust generation during transportation. This design improves workplace cleanliness and reduces material waste, making it suitable for applications requiring high hygiene standards.

2. Flexible Installation and Space Saving

The flexible pipeline configuration allows the conveyor route to be adjusted according to different factory layouts. It can easily bypass obstacles and connect multiple feeding and discharge points, providing greater installation flexibility compared with traditional conveying equipment.

3. Efficient Pneumatic Vacuum Transfer

By creating a vacuum airflow inside the conveying pipeline, the system efficiently moves powder and granulated materials with stable conveying performance. The controlled airflow ensures gentle transportation while reducing material damage.

4. Easy Cleaning and Maintenance

The optimized structure simplifies daily operation and maintenance. The equipment can be designed with cleaning functions to support convenient cleaning procedures and meet production environments with strict sanitation requirements.

5. Safe Material Handling

The sealed conveying process prevents external contamination and protects operators from exposure to dusty materials. For sensitive or hazardous materials, inert gas conveying options can provide additional safety during transportation.

6. Accurate Material Feeding

The system can be combined with precision feeding and weighing components to achieve accurate material measurement and controlled feeding, improving production consistency.

7. Low Noise and Energy Efficient Operation

Compared with many mechanical conveying systems, the pneumatic vacuum conveying method operates smoothly with reduced mechanical wear and lower maintenance requirements.

Application Scenarios

1. Food Processing Industry

The Flexible Pneumatic Vacuum Conveyor is widely used for transferring flour, sugar, starch, spices, grains, and other food ingredients while maintaining a clean and hygienic production environment.

2. Pharmaceutical Industry

It provides safe and enclosed transportation for pharmaceutical powders, granules, and raw materials, helping meet strict cleanliness and contamination control requirements.

3. Chemical Industry

The conveyor is suitable for handling chemical powders, additives, and fine particles, offering reliable transfer with reduced dust exposure and improved operational safety.

4. New Energy Industry

It supports the transportation of fine powder materials used in battery and energy-related manufacturing processes with stable conveying performance and controlled material handling.

5. Metal Materials Industry

The system can efficiently transfer metal powders and granular materials in automated production processes, improving feeding efficiency and reducing manual handling.

6. Plastic and Polymer Industry

It is ideal for conveying plastic pellets, resin powder, and other polymer materials between storage, processing, and packaging equipment.

Advantages of Flexible Pneumatic Vacuum Conveyor

• Fully enclosed conveying prevents dust leakage
• Flexible pipeline layout for different production environments
• Suitable for powder and granule material handling
• Hygienic design for food and pharmaceutical industries
• Reduced material contamination risk
• Easy integration with automated production lines
• Gentle conveying reduces material damage
• Low maintenance requirements
• Safe operation for sensitive materials

FAQ

1. What materials can the Flexible Pneumatic Vacuum Conveyor transport?

The Flexible Pneumatic Vacuum Conveyor is designed for conveying various dry materials, including powders, granules, pellets, and fine particles such as food ingredients, pharmaceutical powders, chemicals, and industrial materials.

2. How does the Flexible Pneumatic Vacuum Conveyor work?

The system uses pneumatic vacuum power to create negative pressure inside the pipeline. The airflow draws materials into the conveyor and transfers them smoothly to the required destination.

3. Is the conveying process dust-free?

Yes. The fully enclosed pipeline design helps prevent dust leakage and material loss, creating a cleaner working environment and protecting materials from external contamination.

4. Can the conveyor be customized for different factory layouts?

Yes. The flexible pipeline design allows installation according to different production layouts, making it suitable for complex spaces and various material transfer requirements.

5. Is the Flexible Pneumatic Vacuum Conveyor suitable for food and pharmaceutical applications?

Yes. Its sealed structure and hygienic conveying process make it suitable for industries requiring strict cleanliness standards, including food processing and pharmaceutical manufacturing.

6. What are the advantages compared with traditional mechanical conveyors?

Compared with traditional conveyors, the Flexible Pneumatic Vacuum Conveyor offers cleaner operation, flexible installation, reduced material contamination, lower maintenance requirements, and better protection for sensitive materials.
