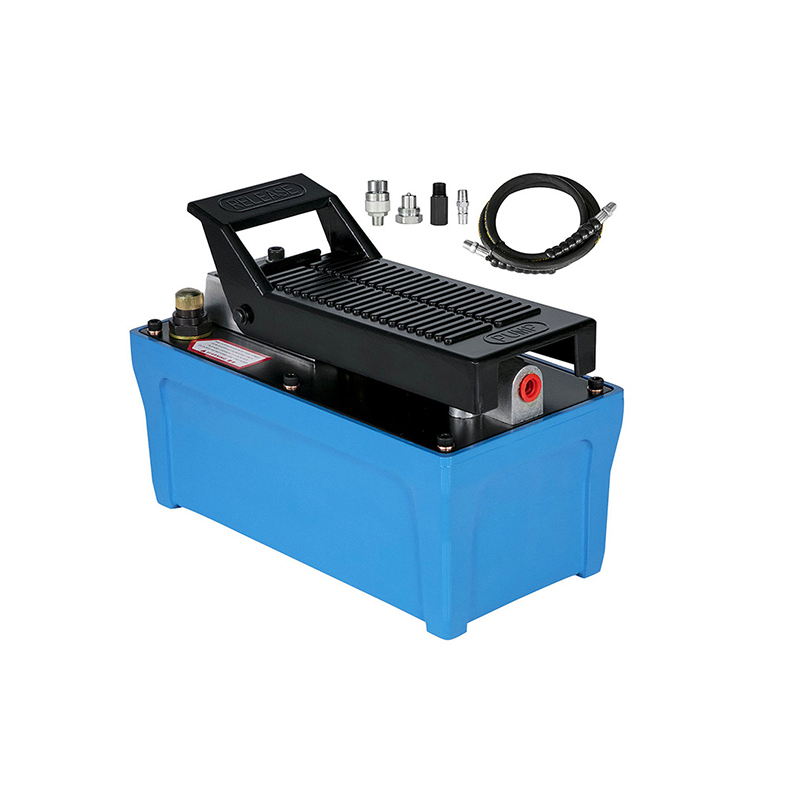

Ultra-high pressure pneumatic hydraulic pump, foot hydraulic pneumatic pump, oil storage 1.6L, fuel tank hydraulic foot pump, pneumatic pedal foot drive, used for body frame machines and tie rods (the pump does not contain oil)
1.Excellent pressure holding performance
2.Suitable for non-spark operating environment
3.Built-in silencer significantly reduces noise and reduces personnel fatigue
4.Air and oil filters reduce pollutant damage to the pump body
5.The aluminum alloy pump body and shell are both durable and lightweight.
6.Built-in relief valve to prevent overload operation
7.The unique needle valve guides the pressure relief, which is more conducive to manual or pedal operation.
Oil storage capacity: 1.6L
Rated power: 700bar
High pressure and low pressure oil discharge: 0.12 (0.8)L/min
Weight: 8.6kg
Packing: carton
$136.00
Compare

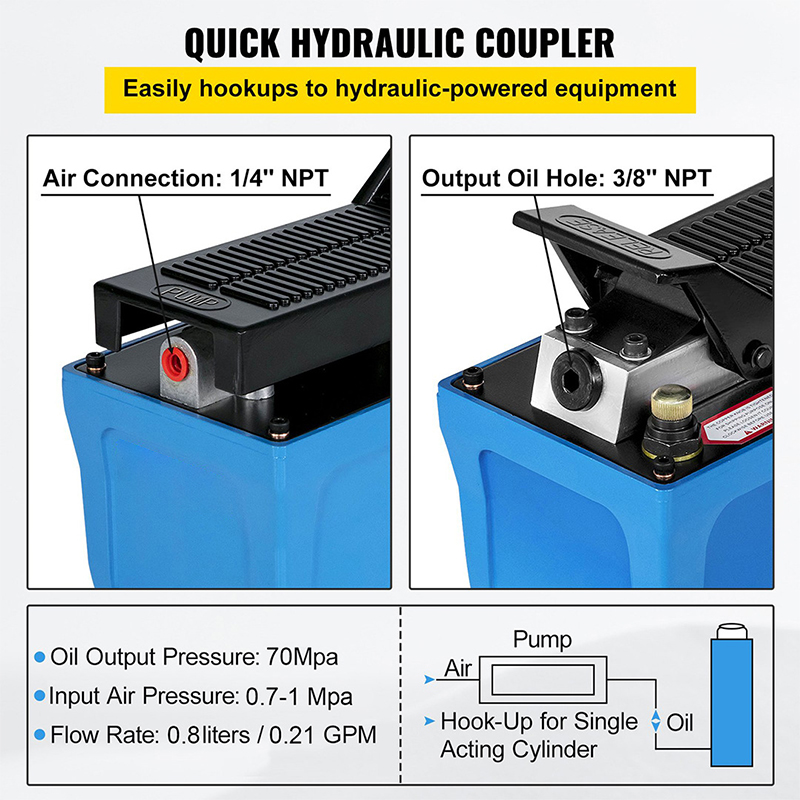

Standard Air Inlet & Oil OutletThe air hydraulic pump features a 1/4” NPT air inlet and a 3/8” NPT oil outlet, which will not leak oil easily. In addition, the 3/8 inch female NPT oil port conveniently hookups to hydraulic-powered equipment. |
Simple Foot Pedal ControlThe high-intensity frame machine pump is much easier to pump, hold, or release the load, which is time-saving and labor-saving. In addition, it allows fine control of the pump while keeping both hands free. |

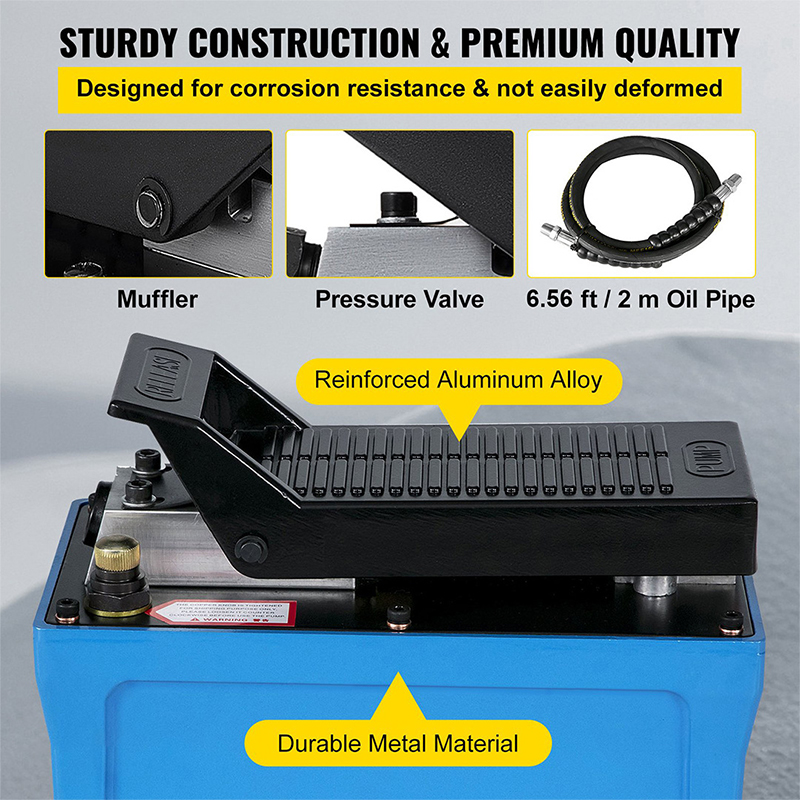

Premium Quality & StructureThe pump core is made of high-quality aviation aluminum to resist compression, vibration, and corrosion. In addition, a durable metal shell protects the internal structure better and is not easily deformed. |
1.6L Large Oil TankThe hydraulic air foot pump adopts a 1.6L ± 0.1L aluminum alloy fuel tank with 98 cubic inches / 1.6 liters production for high performance. Moreover, it ensures you have the supply needed to power your equipment. |
High-Pressure Hydraulic HoseThis hydraulic pump includes a high-quality oil pipe that resists high pressure and is not easily broken. Hydraulic Hose: 1 m /3 ft with 3/8 NPT – Quick hydraulic coupler. |
Multiple ApplicationThis air hydraulic foot pump is suitable for heavy machinery rigging and moving, auto repair, oil rigging, machine maintenance. It effectively operates your frame machine, hydraulic presses, etc. |
